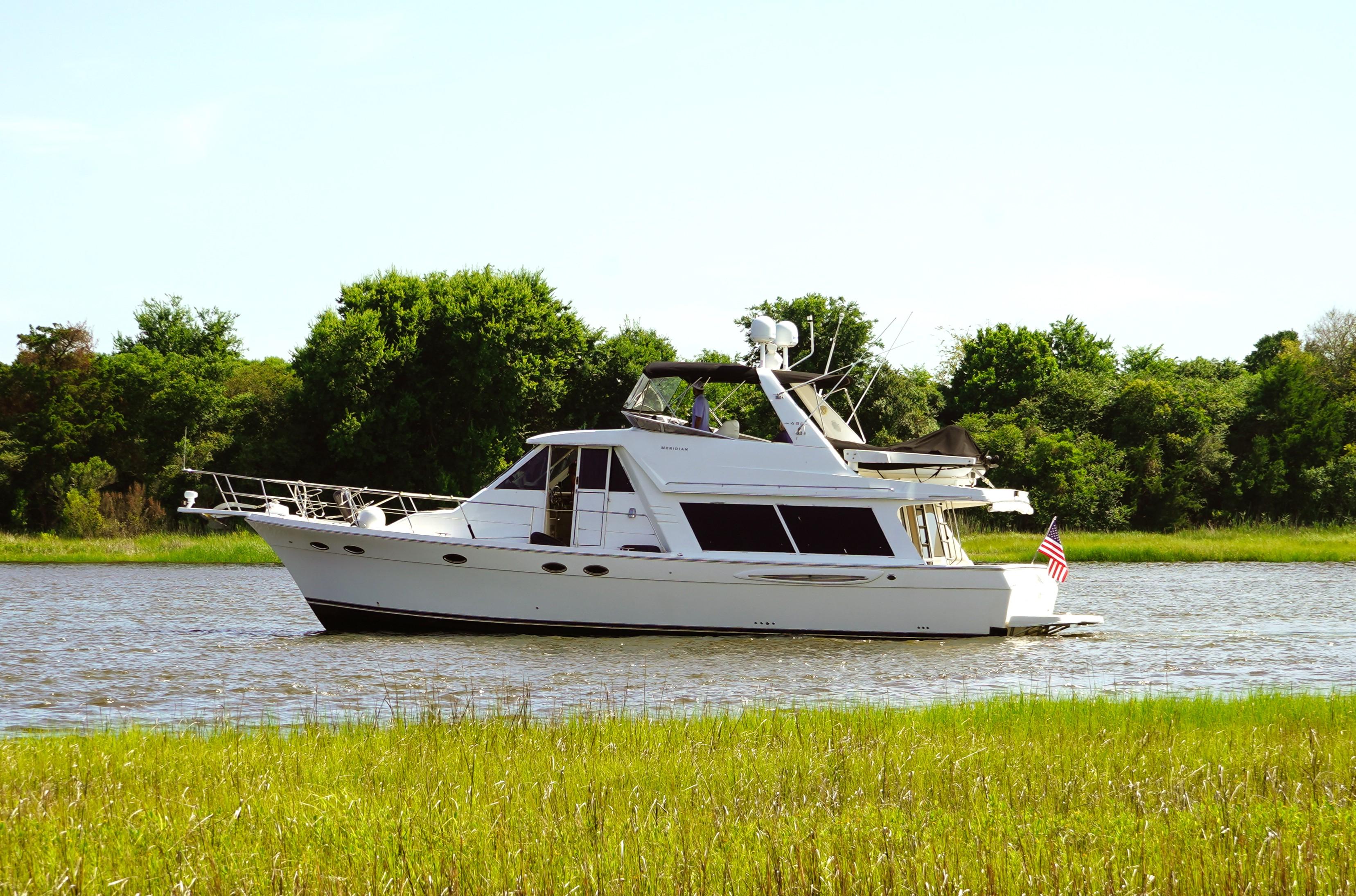

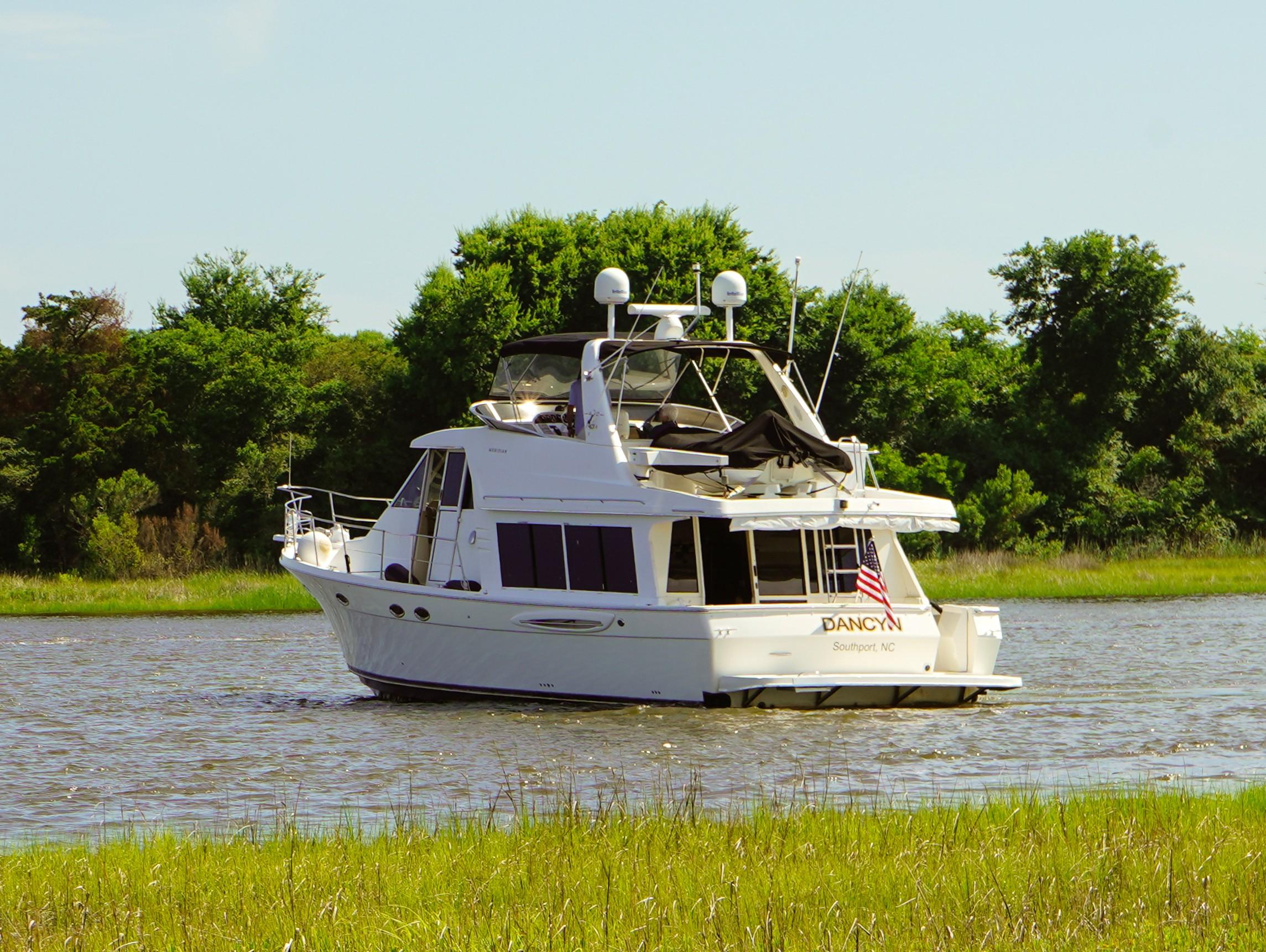

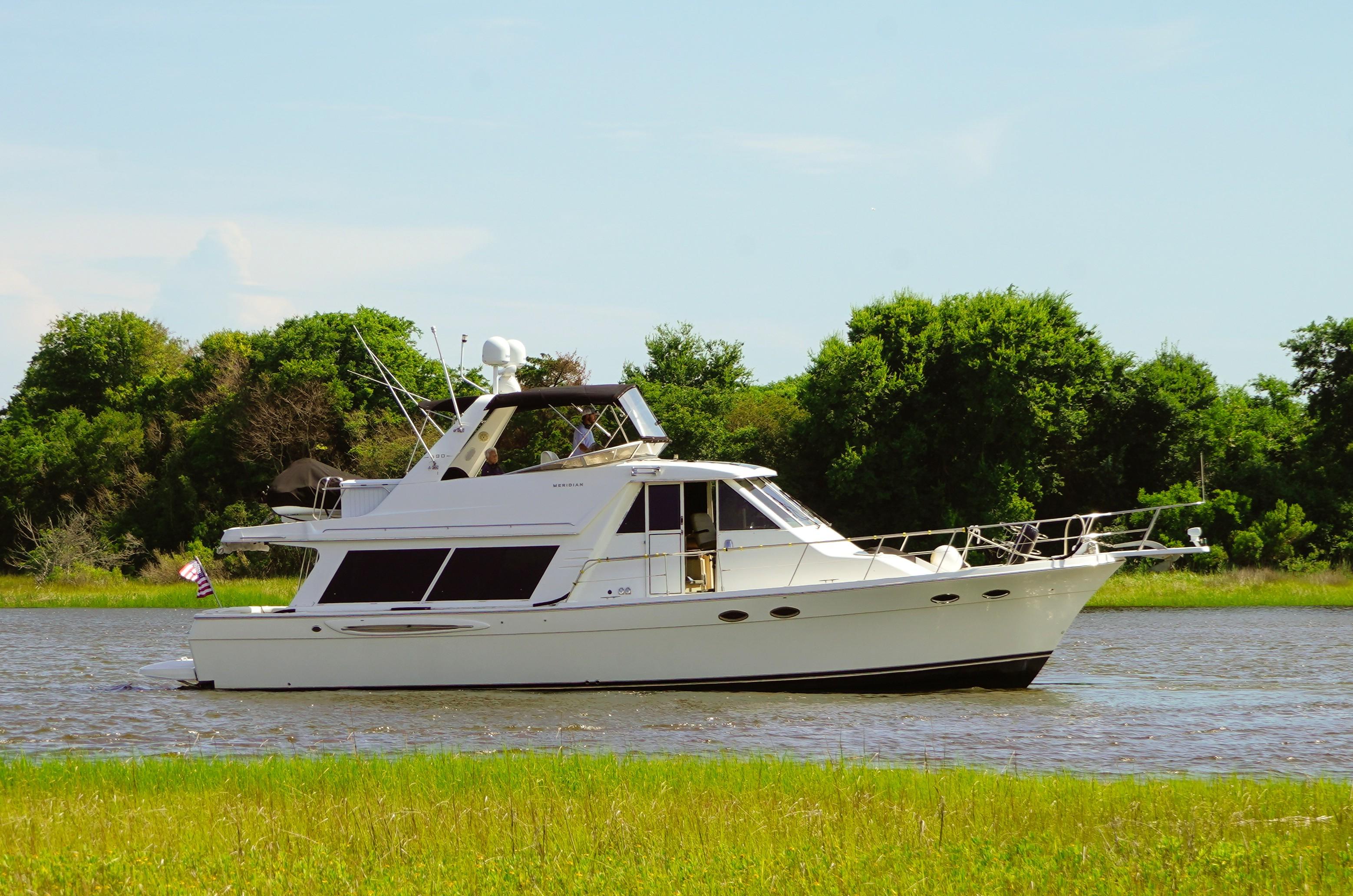

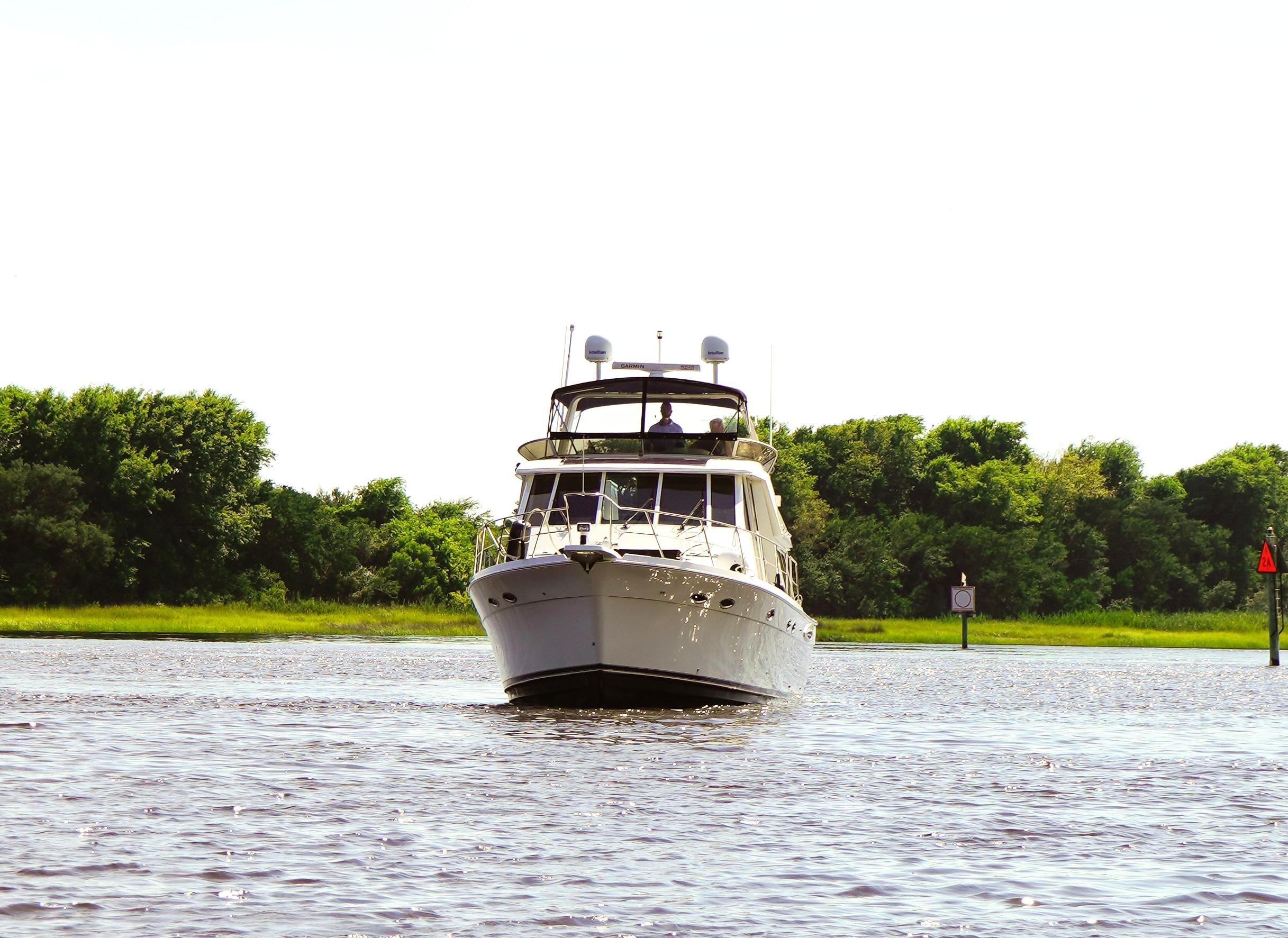

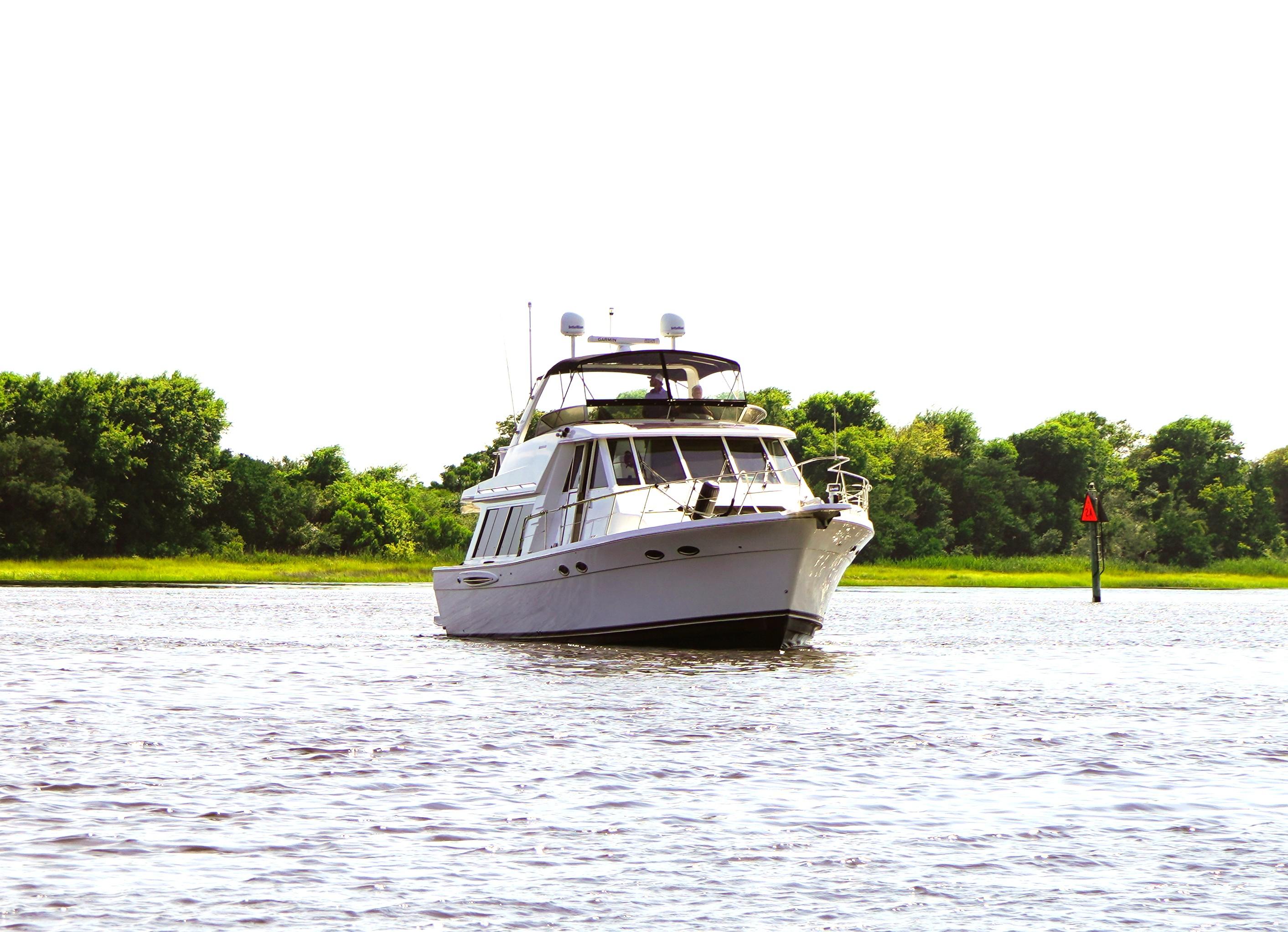

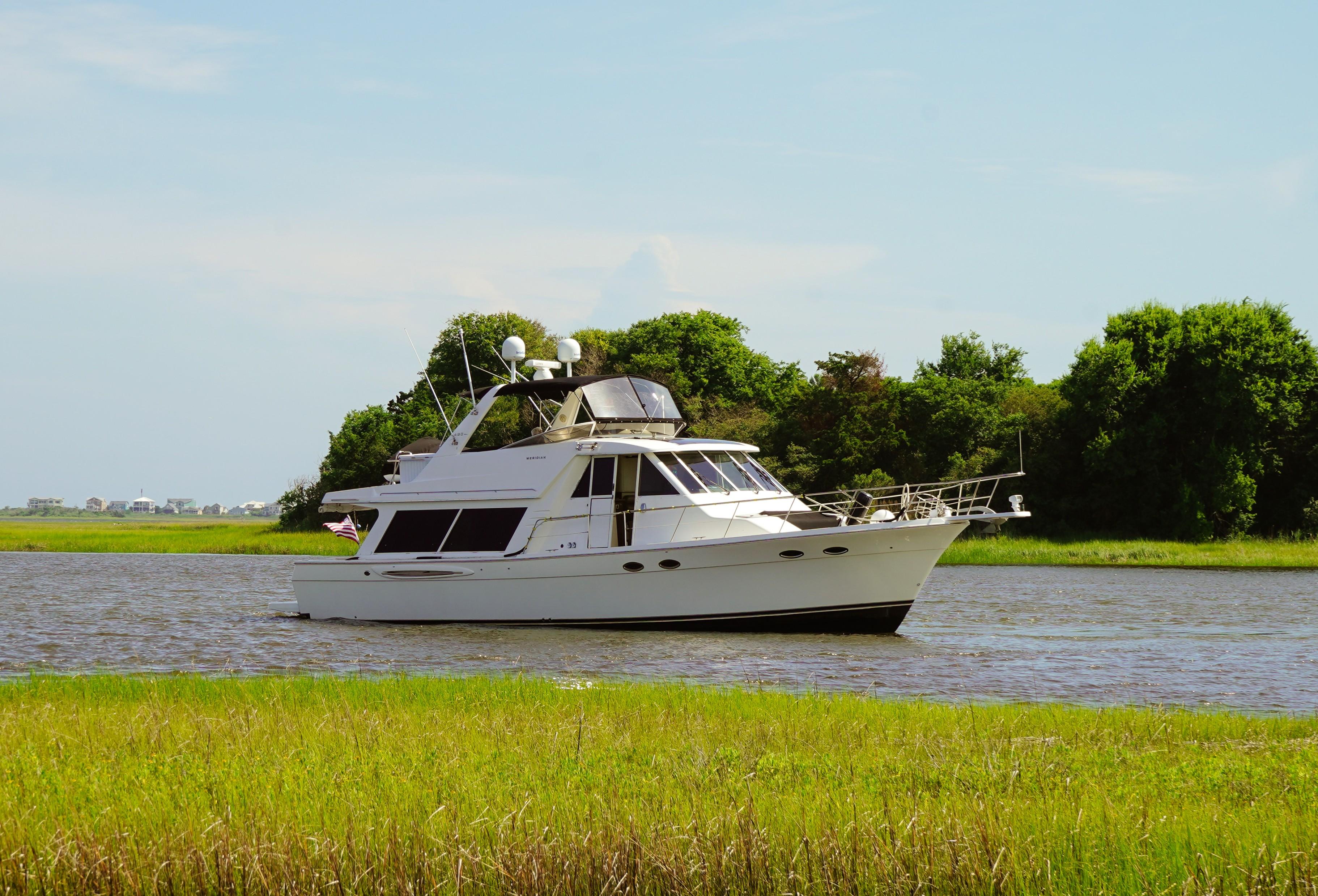

While the 490SE Pilothouse features the comforts and standard features that modern cruising boaters have come to expect from Meridian, she also has a seafaring soul. This first-class yacht provides the responsive handling and solid construction that inclement weather requires, and she will deftly manage temperamental waterways, yet she also effortlessly accommodates up to six people in three well-appointed staterooms. Creature comforts include generous salon seating, a full-service galley with teak-and-holly flooring and Karadon custom solid-surface countertops, a master head with bathtub, a guest head with separate enclosed shower and a convertible third stateroom. For the boater who wants comfort in a solid seafaring cruiser, the 490SE is the perfect choice.

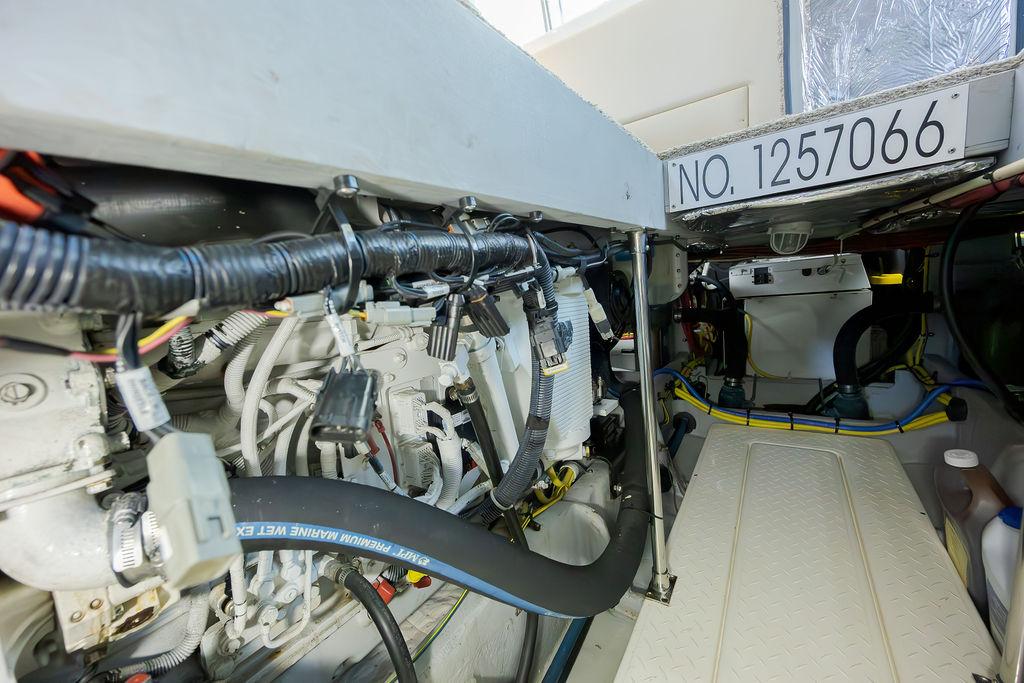

• Upgraded Cummins QSB5.9L with 380hp each, common rail diesel main engines
• Gear Boxes – ZF Model # - 85A Ratio - 2 to 1 Digital throttle and shift controls for engines from pilothouse and flybridge control stations
• Electric Bow Thruster
• Upgraded ONAN 13.5kw genset

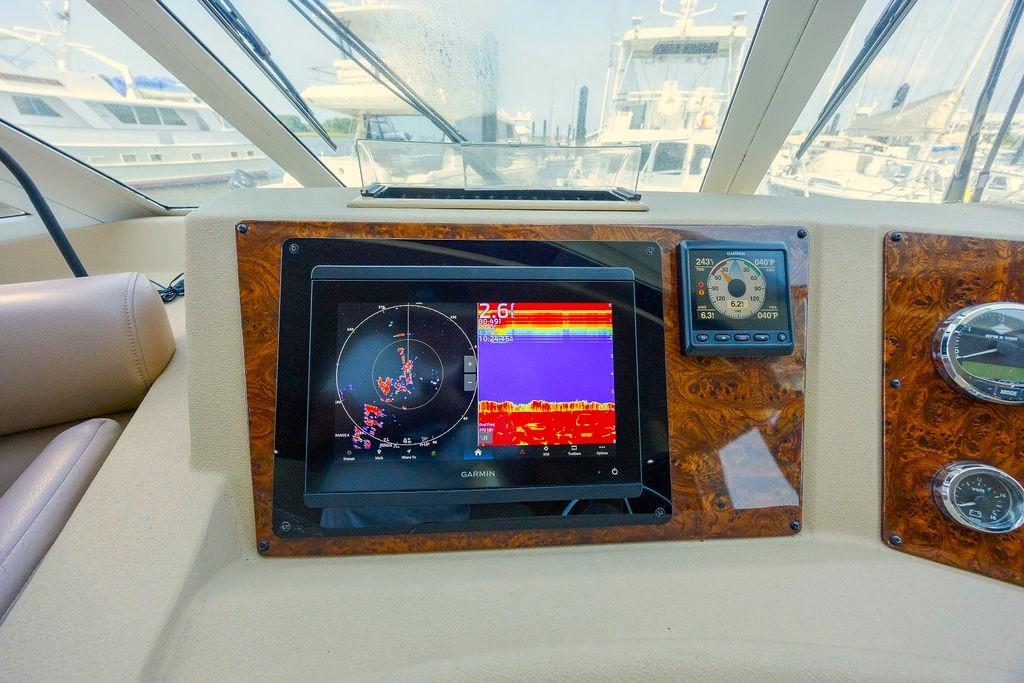

• 2 Garmin Color Touchscreen MFD (Pilothouse and Flybridge). Information relayed to the MFD’s include but are not limited to GPS, Radar, Auto-Pilot, Depth, Sonar, Fuel/Water, Waste levels, 4 infrared cameras, AIS and more.
• Three-zone air conditioning with reverse cycle heat 2x16,000BTU units and 1x12,000BTU for a total of 44,000 BTU
• 4 King 110v electric heaters
• Victron Quattro Lithium Inverter LiFePO4 Smart 400Ahr lithium battery and battery monitor.  Added 2023, approx. $16k to install.
• 6 Rule bilge pumps throughout
• Water system, pressure demand hot/cold
• Macerator for holding tank, 12v
• Bow raw water washdown
• Propeller shafts 2"x92", stainless steel
• 24x24x4 Nibral Props
• Dripless shaft seals
• Rudders and struts, bronze with rubber strut bearings
• Seacocks, bronze, on all thru-hull fittings
• Horn,12v
• Lighting fixtures, 12v
• Navigation lights, 12v
• Batteries (3) lifeline GPL-8DL house, (4) Lifeline GPL-3100T Mains, Genset and Bow Thruster.  Batteries are slightly over 3 years old.
• 50amp Pro-Nautic battery charger with Victron battery monitor with Bluetooth access
• Battery parallel system
• 50amp dockside inlet for shore power
• Cable TV inlet
• Dual station spotlight
• Power distribution panel 110v AC/12v DC with magnetic circuit breakers, voltmeter and hour meters, amp meter
• Digital smartcraft engine alarm system

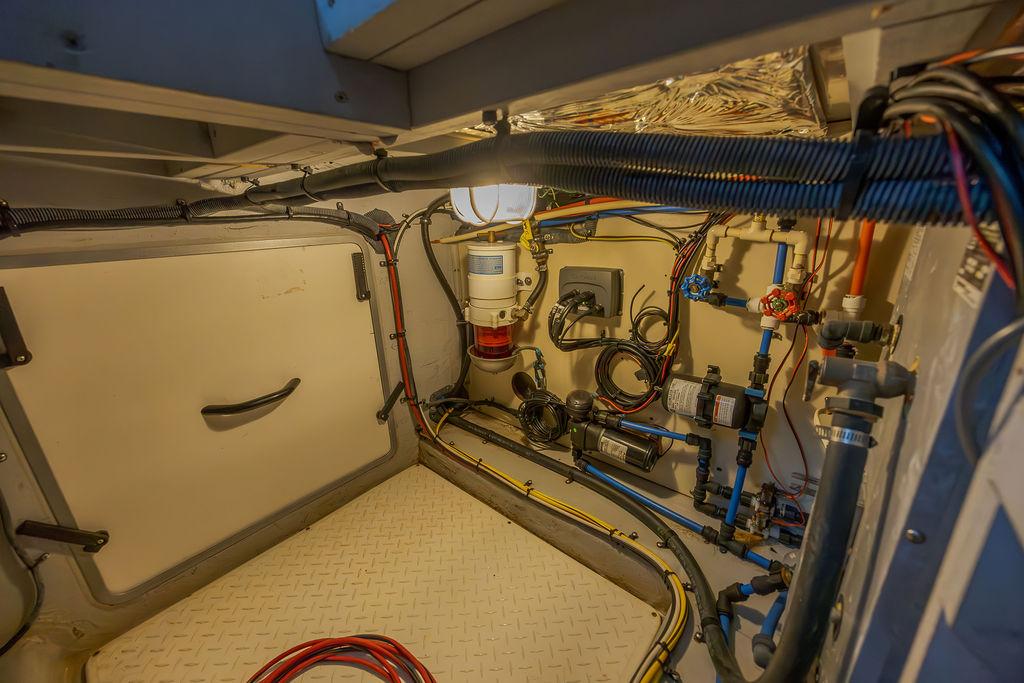

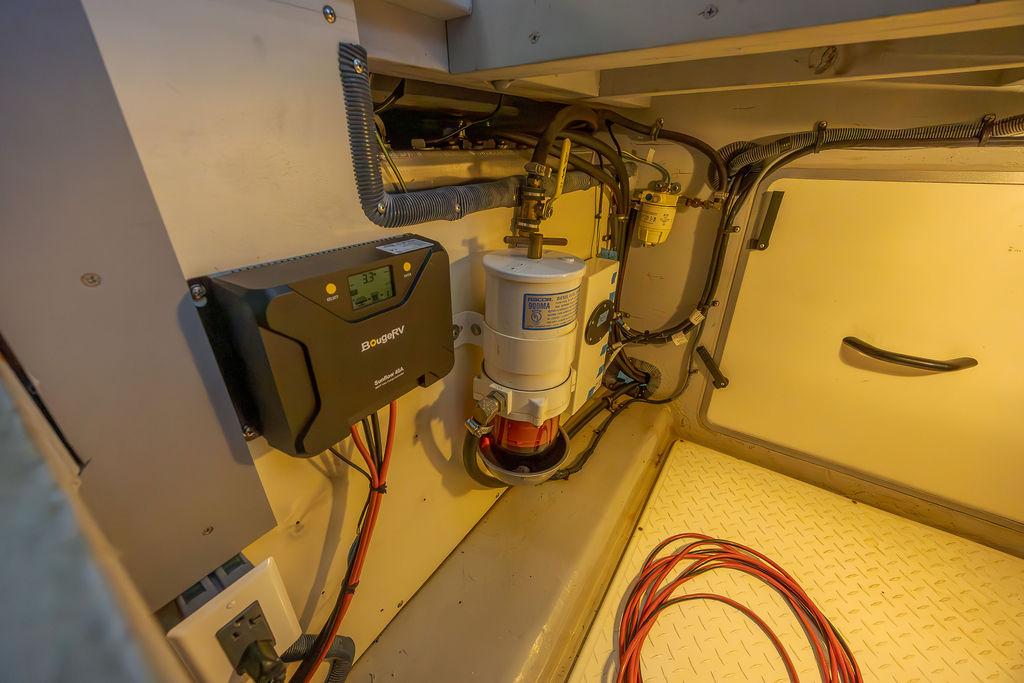

• Racor fuel filters for main engines and genset
• Blower for engine room forced air ventilation
• Hydraulic steering system
• Trim tabs, Bennett electric/hydraulic
• Internal sea strainers
• Fire boy auto/Manual Fire suppression system certified and installed in 2023
• Pep wave Wifi hotspot.  Does require cellular plan.

• Non-skid fiberglass deck
• Hand laid fiberglass construction with vinylester skin coat, unitized glassed-in bulkheads, marine core
• Color coded electrical system
• Thermal and acoustic insulation
• Bow platform with anchor roller
• Hatch, anchor line locker with drain

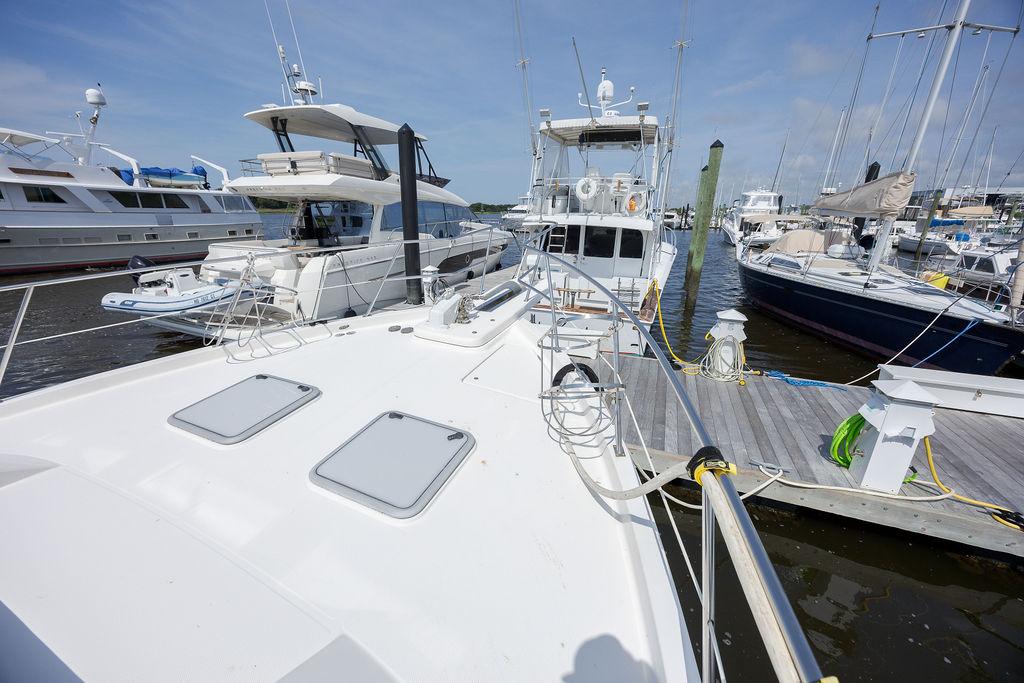

• Hatches (2) bow, Bomar translucent, opening
• (8) Moorings cleats
• (2) Fuel fills
• (2) Water fills
• Waste pump-out

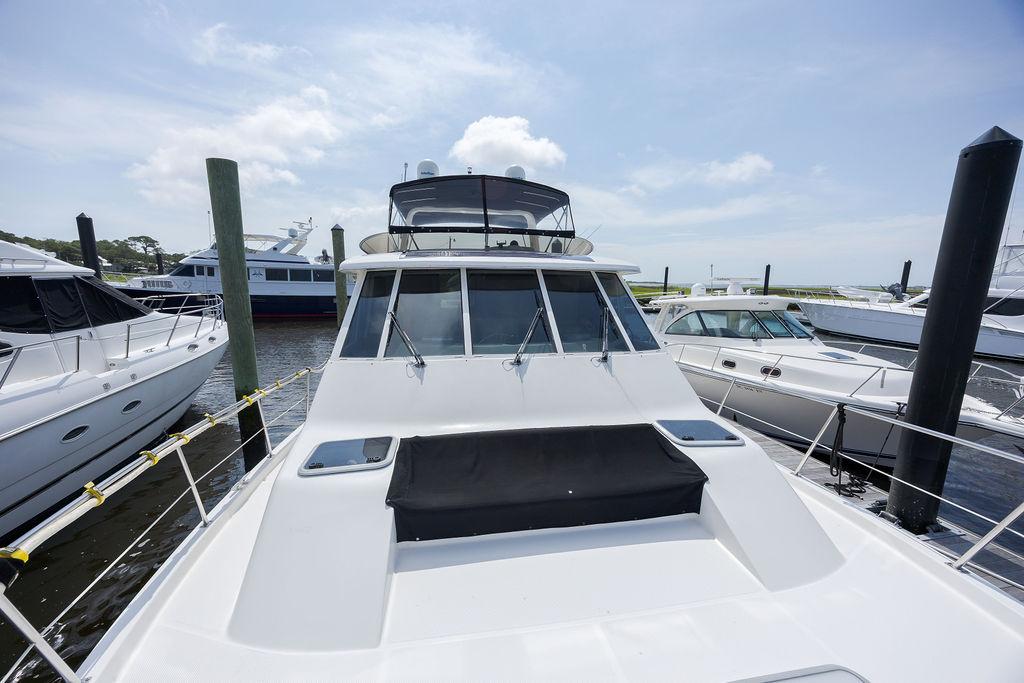

• Foredeck bench seat with removable cushions
• Bow rails, stainless steel, thru-bolted to deck
• Transom swim platform, bolt on, with retractable ladder and handrail
• Portlights, opening
• Windows, side decks, opening
• 12v electric windlass

• Courtesy lights

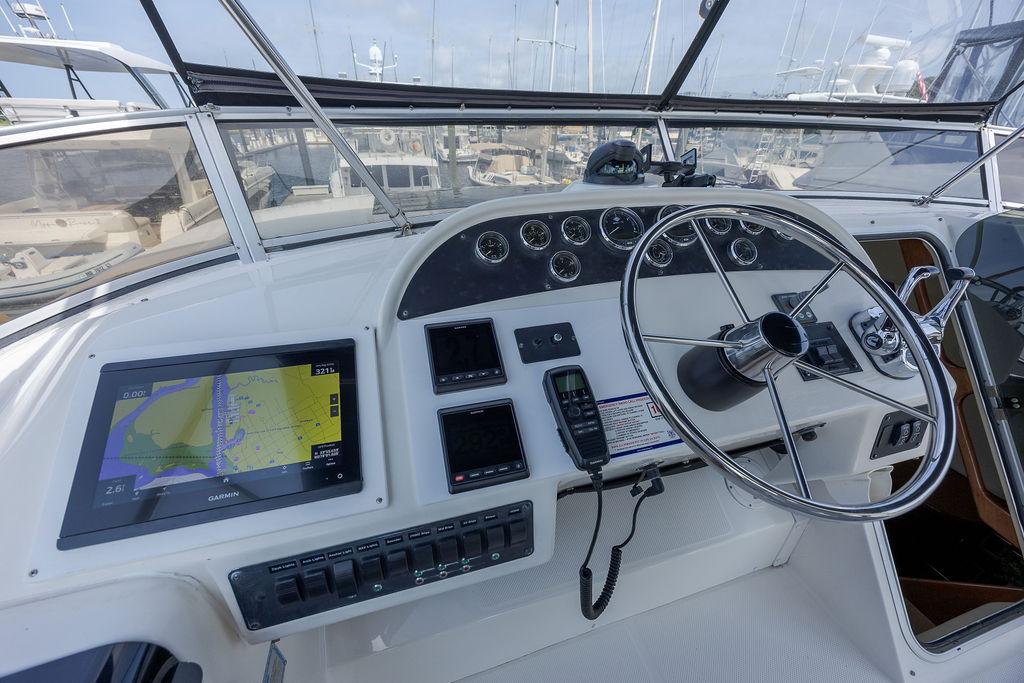

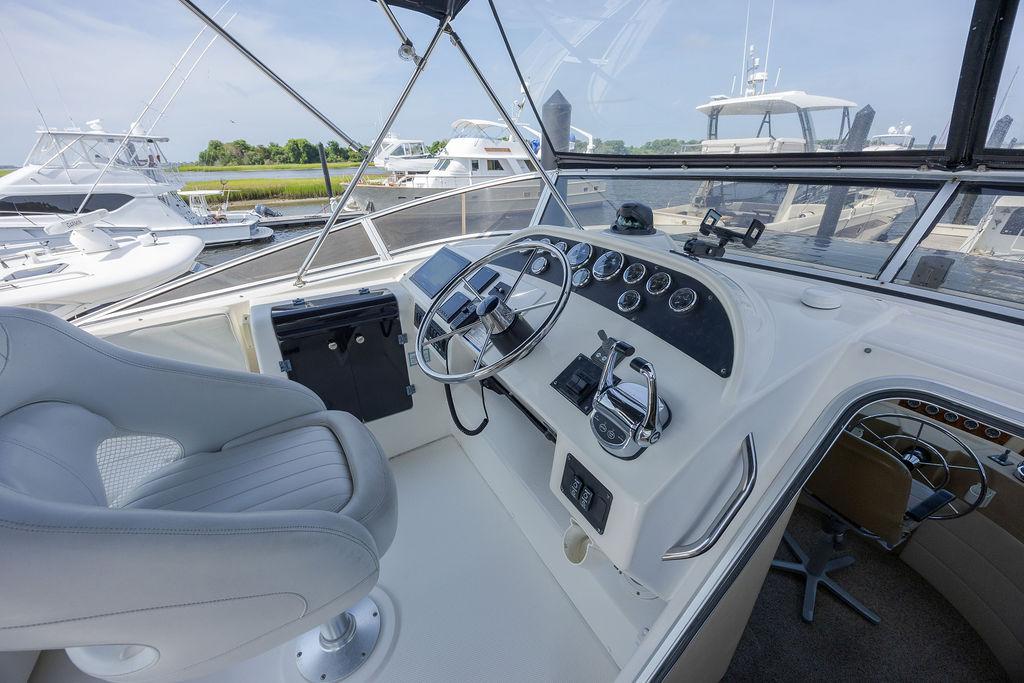

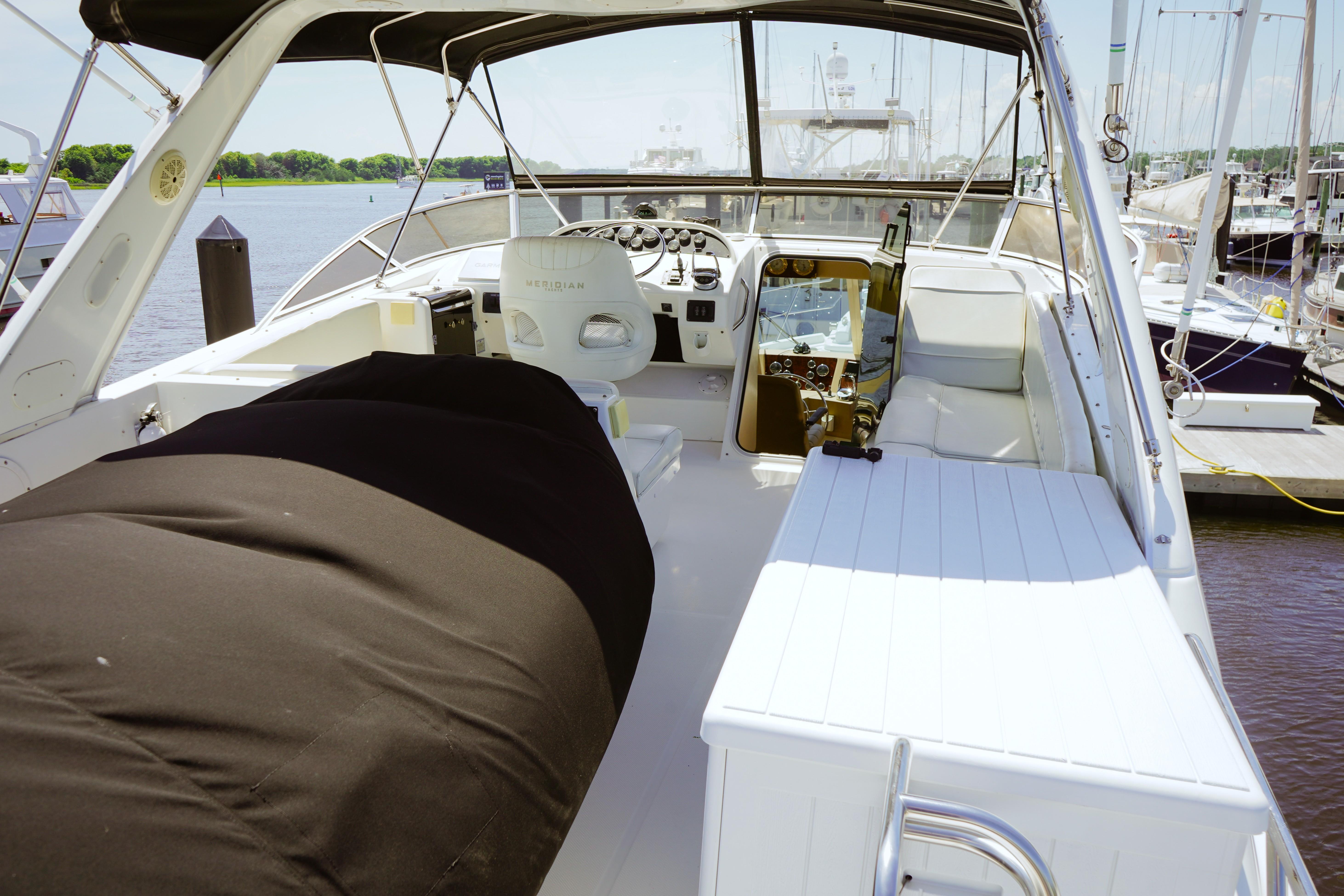

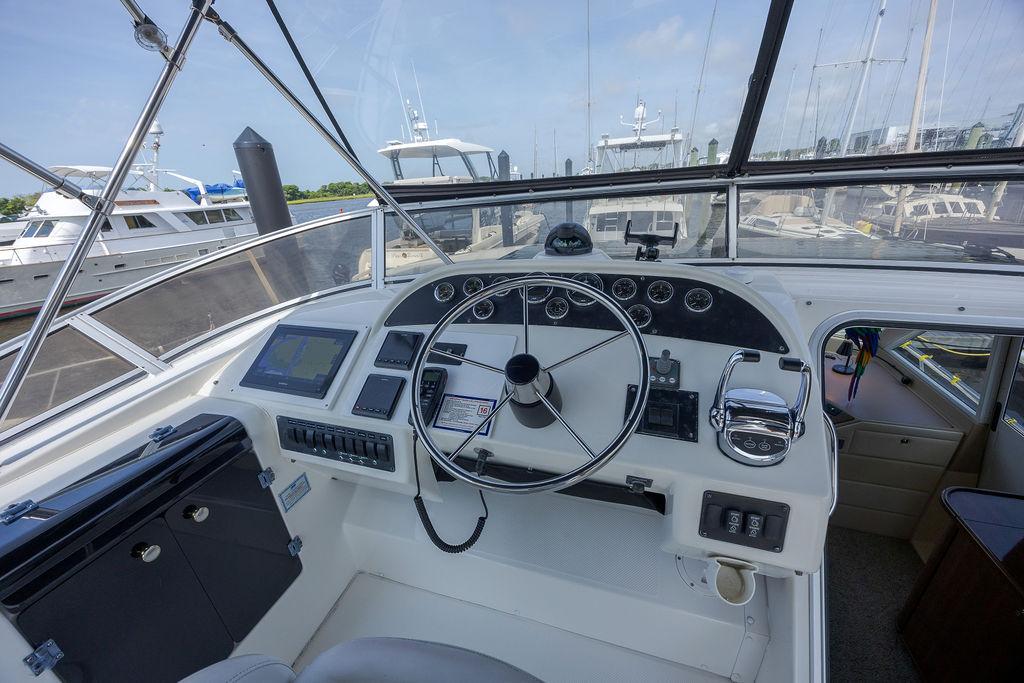

• Non-glare flybridge dash panel
• Electronic engine controls
• Trim tab controls
• Instrumentation, Smartcraft tachometer, voltmeter, oil pressure, temperature
• Compass, Rule 4.5" flush mounted
• Steering wheel, stainless steel
• Helm seat, adjustable/swivel

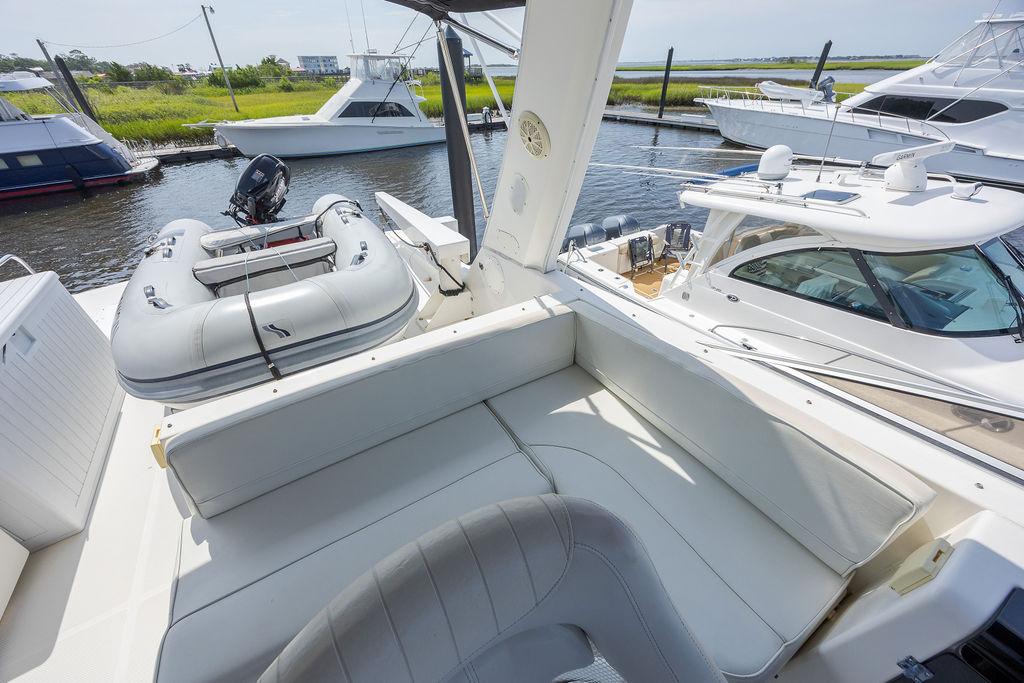

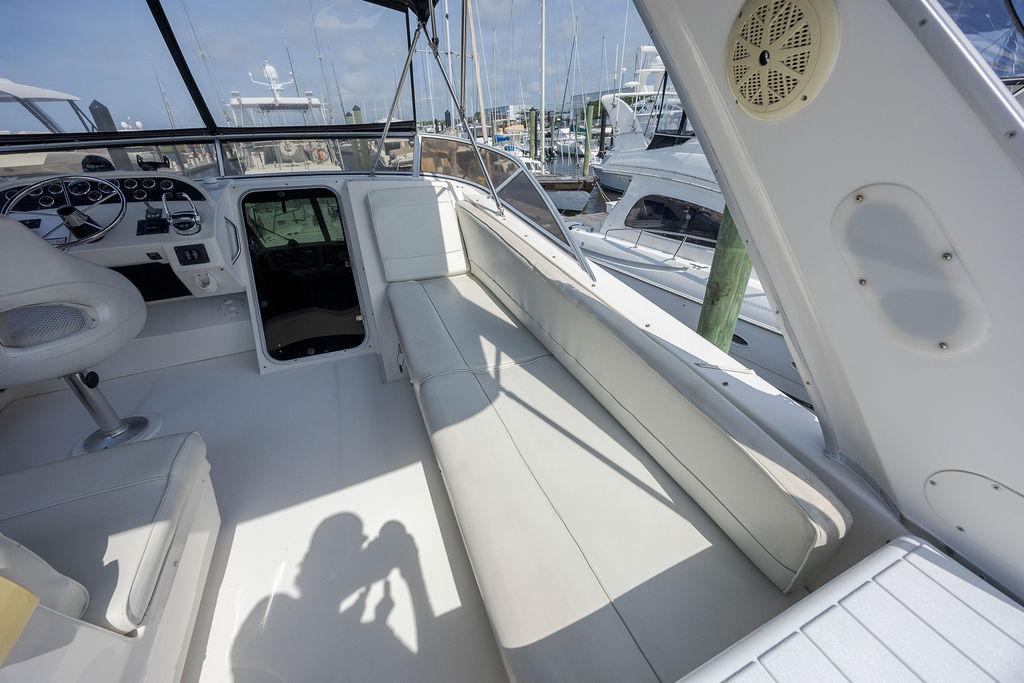

• L-lounge seat with removable cushions and stowage under on port side
• Bench seat with removable cushions and stowage under on starboard side
• New (5/2023) Windscreen, venturi w/aluminum frame and smoke-tint
• Radar arch with side recessed lighting
• Stainless steel rails
• Polycarbonate door with access to pilothouse
• 6 Person near coastal life raft
• Epirb, New Summer of 2022
• Drop in Fridge/Freezer Combo with Sunbrella cover, can run off 110v or inverter.
• Fusion Bluetooth Stereo with 2 speakers

• Bulkhead, fiberglass with 3 fixed windows
• Door, cabin entry, sliding, locking
• Courtesy lights
• Hawse pipes (2)
• Storage lockers, port and starboard
• Steps, molded, access to side decks
• Ladder, access to flybridge
• Hatches (3), access to bilge
• Shore water connection replaced 2023
• Transom door
• Magma Deluxe Propane BBQ with cover

• Dual station fuel tank senders
• 12v stereo with (2) speakers in pilothouse (2) in cockpit and (2) in saloon
• Doors: port and starboard access to side decks, sliding and locking

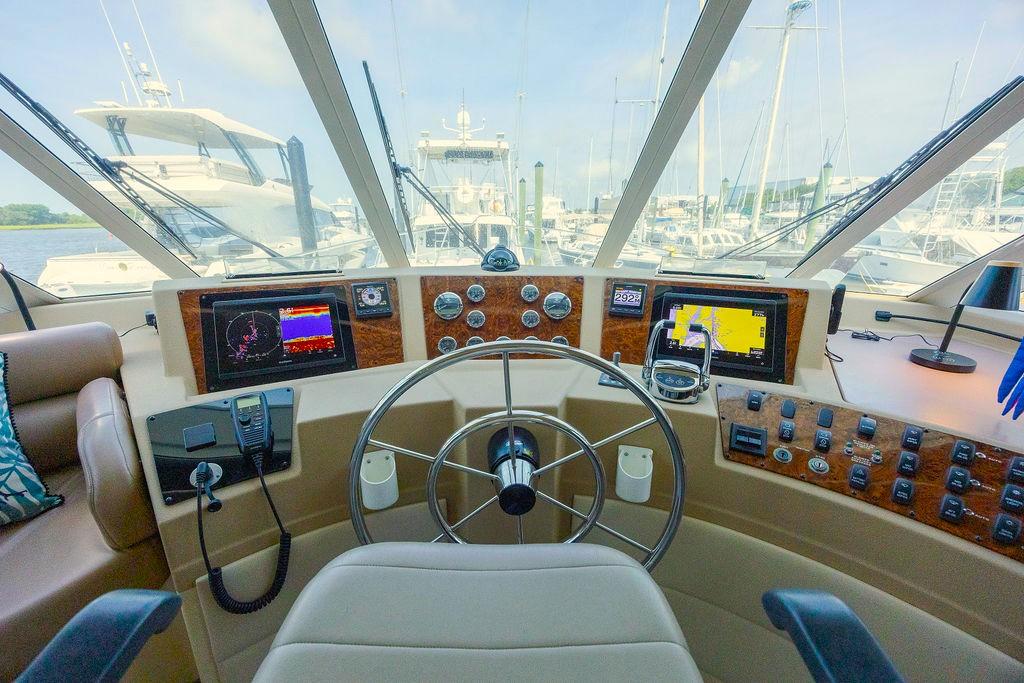

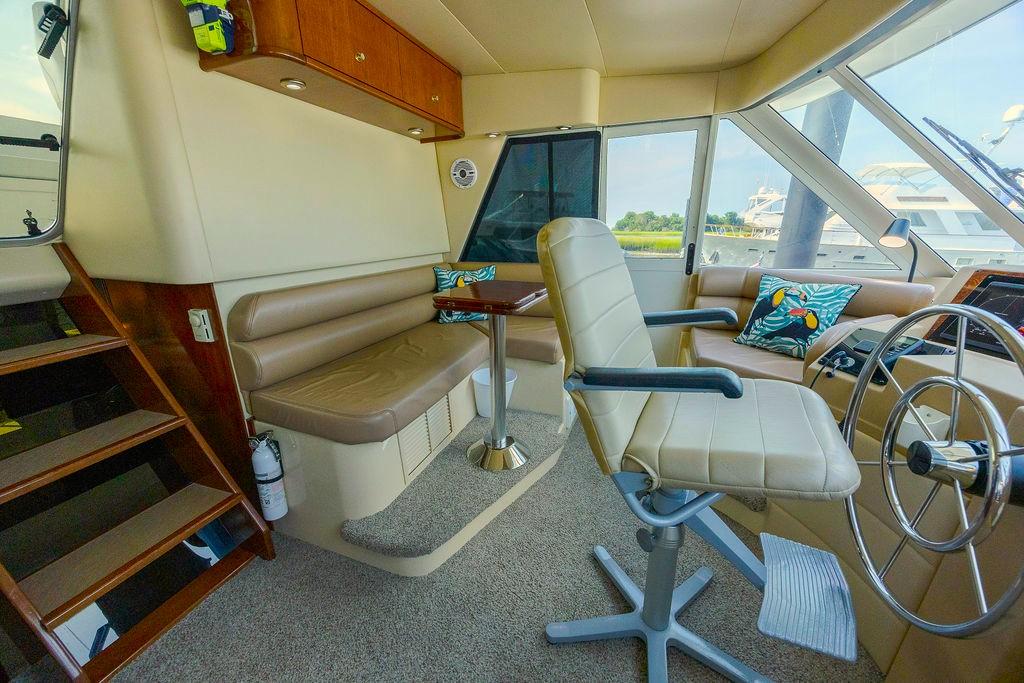

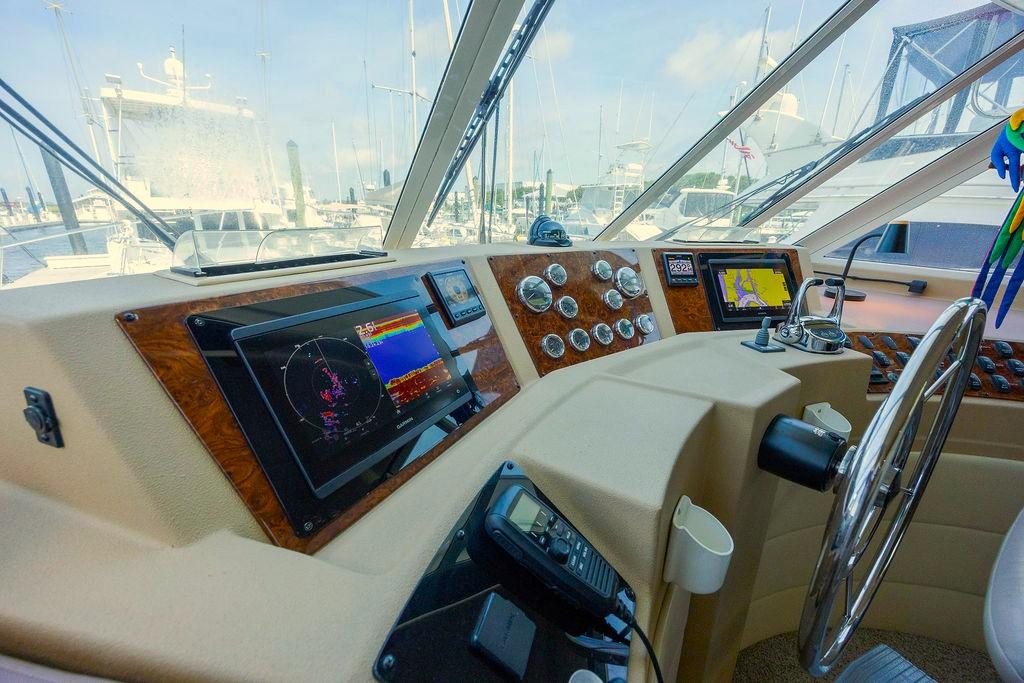

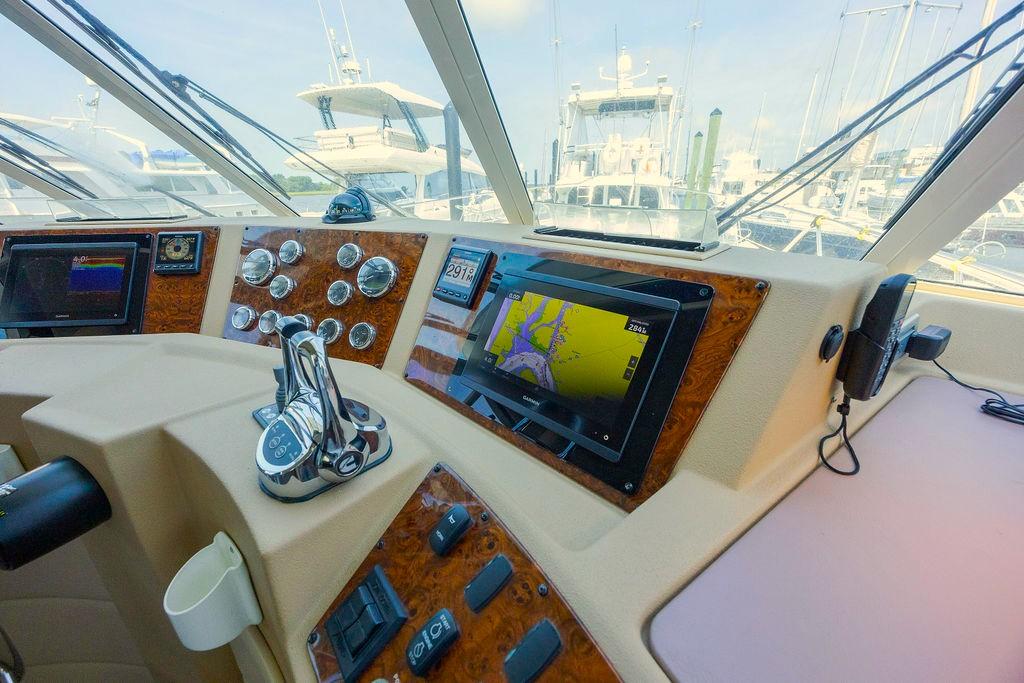

• Pilothouse chart table
• Electronic engine controls
• Trim tab controls
• Instrumentation, dual Smartcraft tachometers, oil pressure, fuel temperature and voltmeter gauges
• Compass, Rule 4.5" flush mount
• Chart locker with reading light
• Steering wheel, stainless steel with wood grain
• Helm Chair
• Seat, L-Lounge with removable cushions, storage under, Port side
• Seat, jump with removable cushion, storage under, Port side
• Storage cabinet above L-lounge

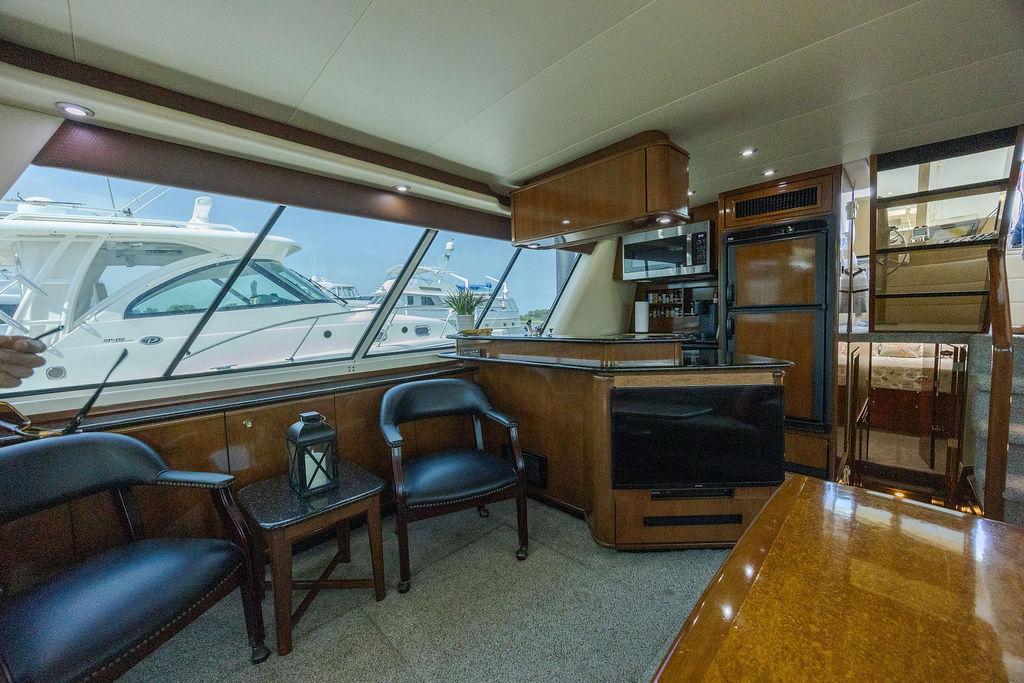

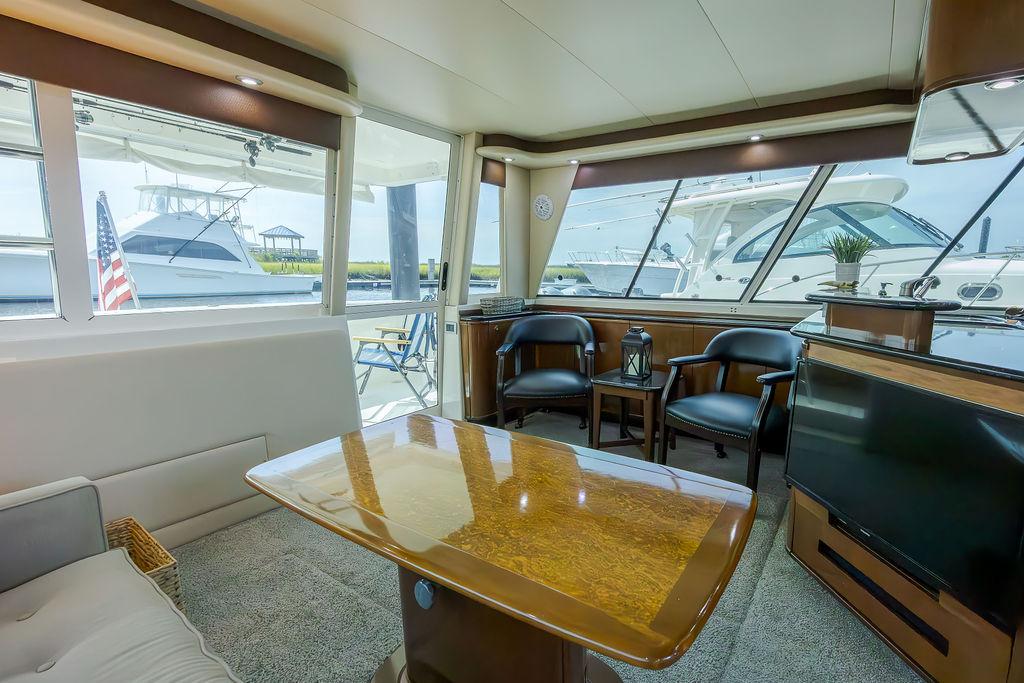

• Interior wood: solid cherry with gloss finish
• Flat Screen TV
• Table, high gloss cherry, adjustable height
• Cocktail table with solid surface top to Port
• Barrel chair Aft
• Sofa to Starboard with end table aft, converts into a bed
• 110v outlets, GFI
• Carpeted floor
• Saloon in-floor engine room access
• Ice Maker to Starboard

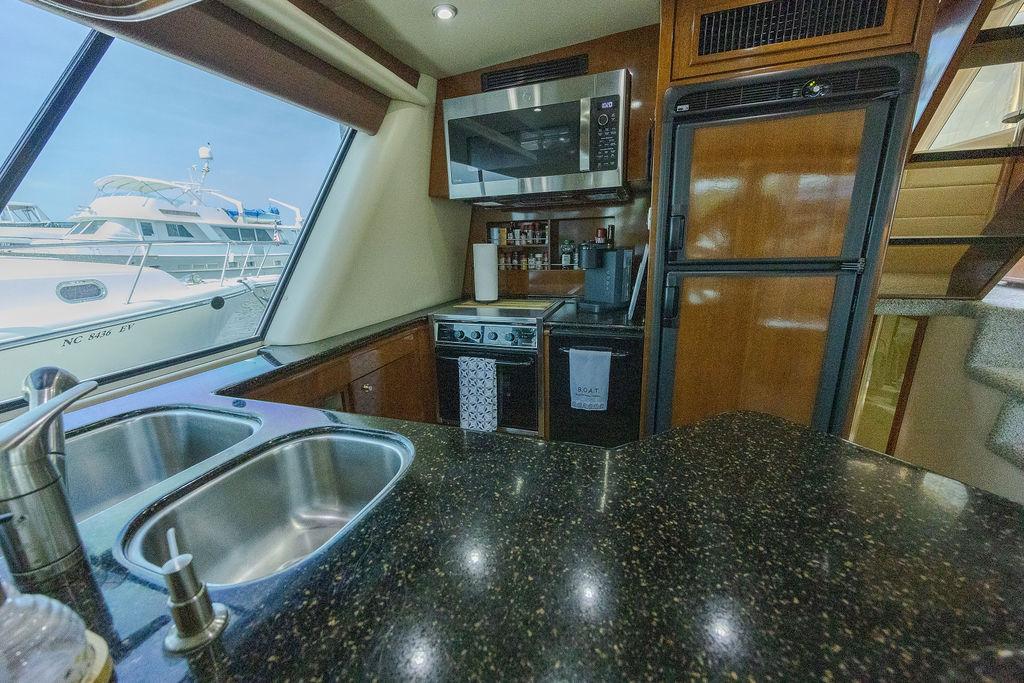

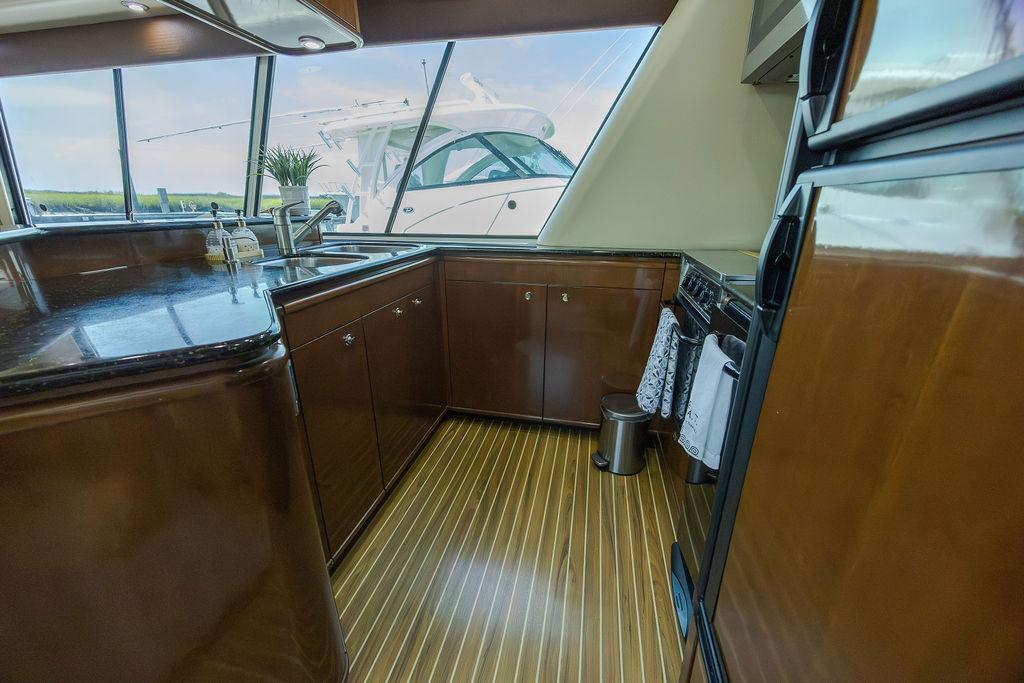

• Galley cabinets
• Countertops, solid-surface Karadon
• (6) drawers
• Cabinet, over refrigerator
• Teak and Holly flooring
• Stainless steel double sink with faucet
• Trash compactor
• Refrigerator, Norcold 7.0cu ft w/freezer
• Stove, Princess electric, 3 burner with oven
• Microwave Oven
• 110v outlet GFI
• Overhead lights

• Door, cabin entry, locking

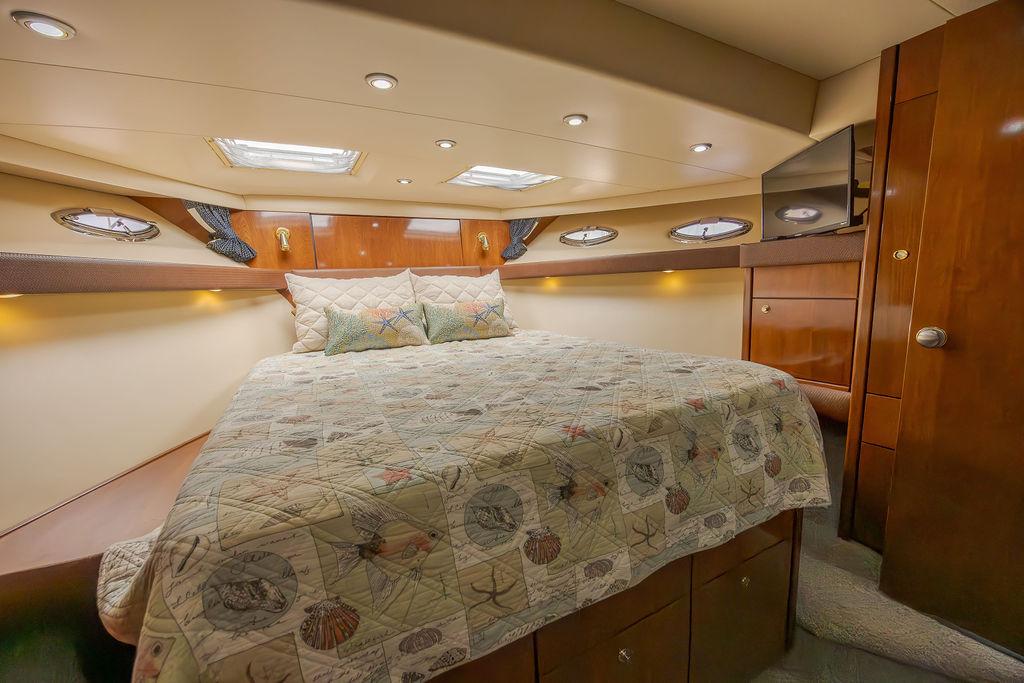

• Berth with storage under
• (6) drawers under berth
• Hatch, access to anchor locker with mirror
• Storage cabinets
• Hanging lockers (2), cedar lined with 1 drawer and storage below
• Shelves port and starboard
• Reading lights
• Curtains
• (2) 110v outlets GFI

• Door, locking
• Vanity cabinet with molded sink and storage underneath
• Medicine cabinet with mirrored door
• Storage shelves
• Shower/bathtub with glass enclosure
• Toilet, vacu-flush
• Overhead lights
• Exhaust fan
• 110v outlet GFI
• Towel Bars

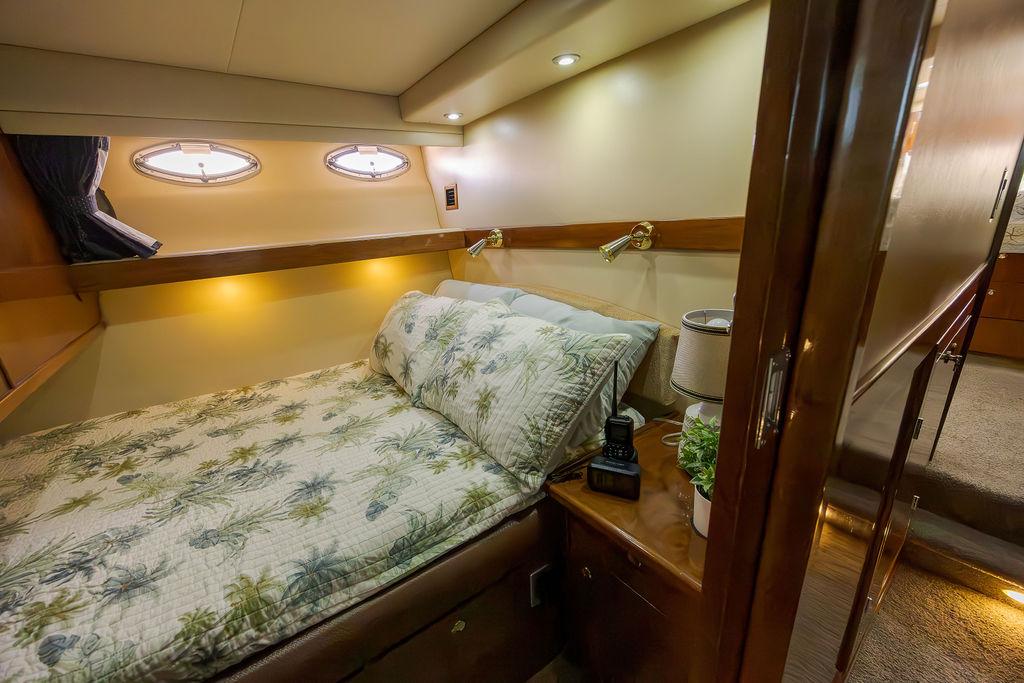

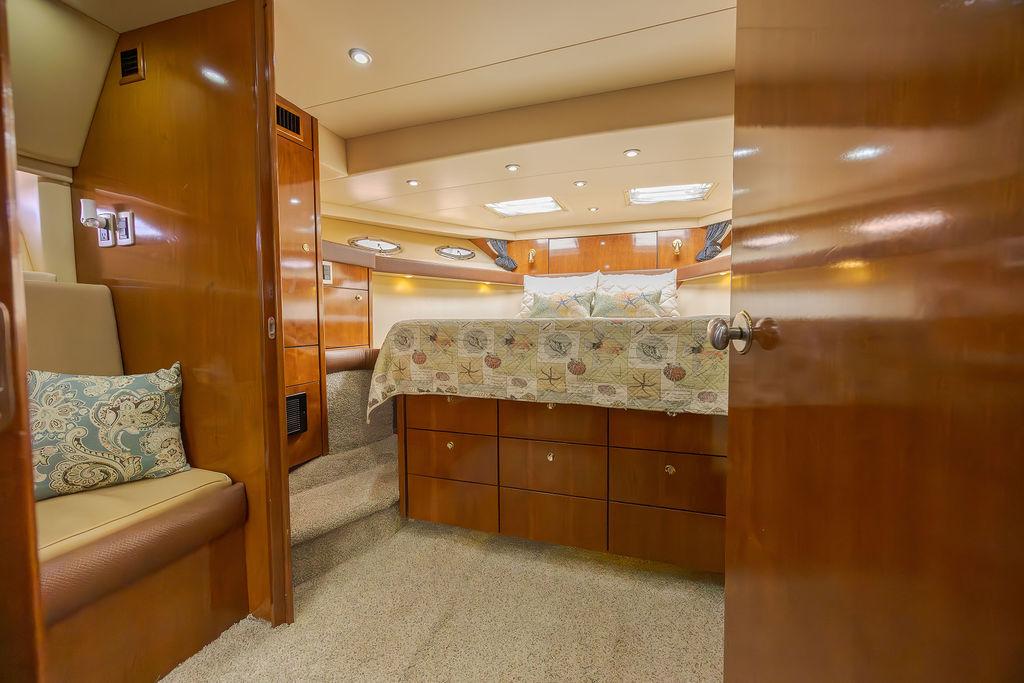

•  Double Berth with storage underneath
• (2) Drawers under berth
• Nightstand
• Hanging locker, cedar lined
• Shelf
• Overhead and reading lights
• 110v outlet GFI

• Convertible Bunk Bed with storage beneath
• Full size hanging locker, 5 drawers, cedar lined
• Mirrored Hanging locker

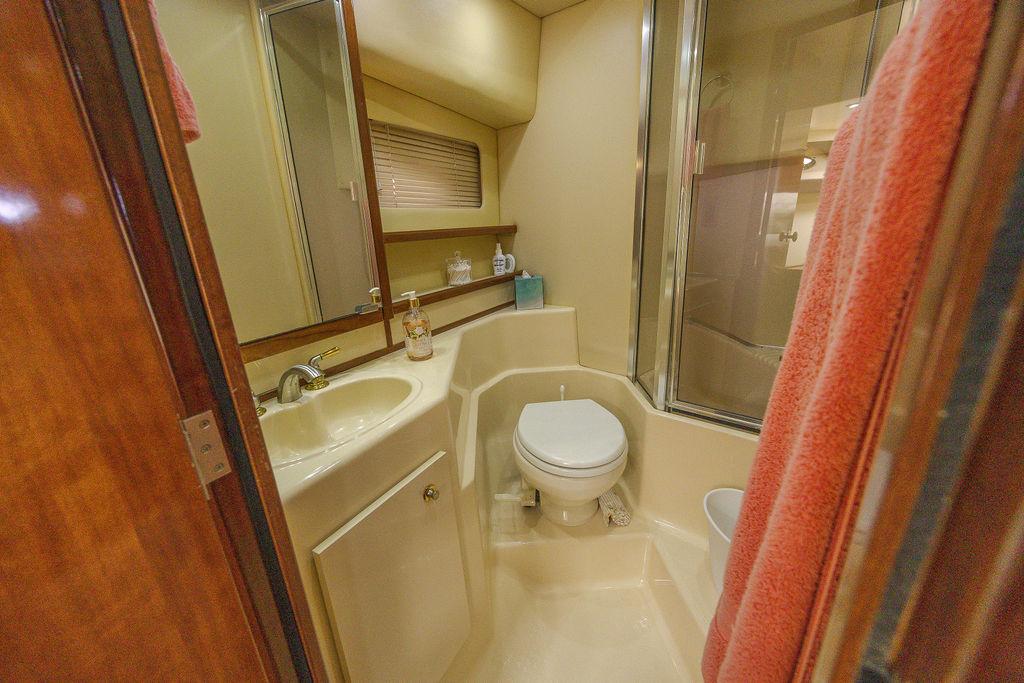

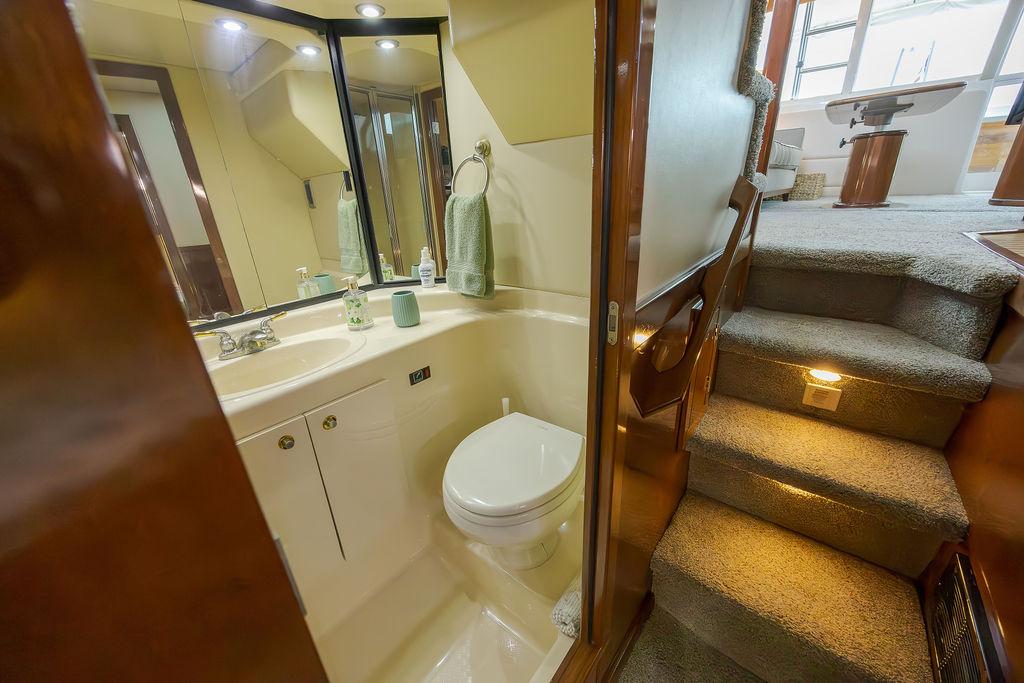

• Door, locking with mirror
• Vanity cabinet with molded sink and storage under
• Medicine cabinet with mirrored door
• Storage shelves
• Enclosed shower stall with glass enclosure
• Toilet, vacu-flush
• Overhead lights
• Exhaust fan
• 110v outlet GFI
• Towel bars
• Portlight

• Engine room access under stairs
• Courtesy lights

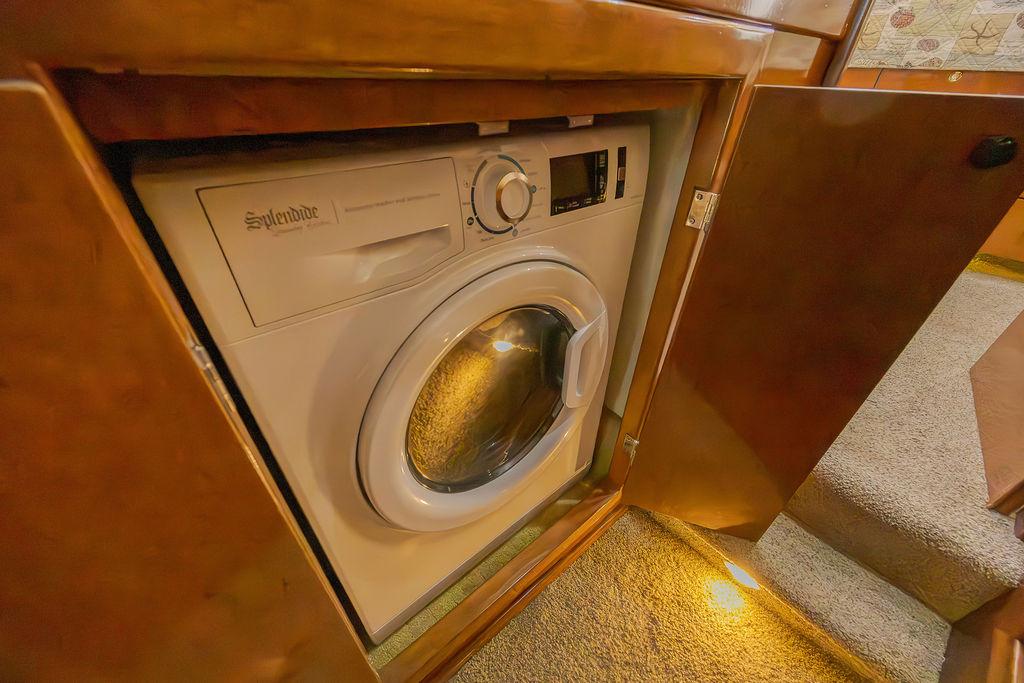

• 110v Washer/Dryer
