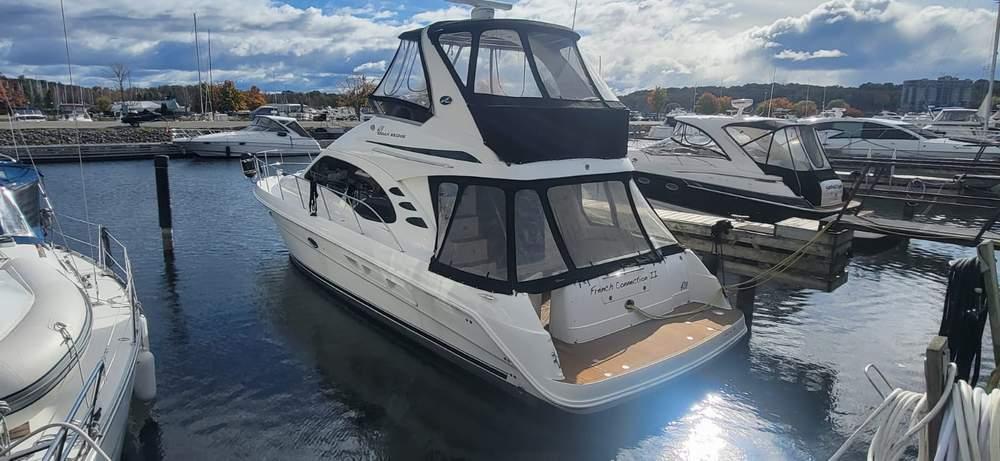

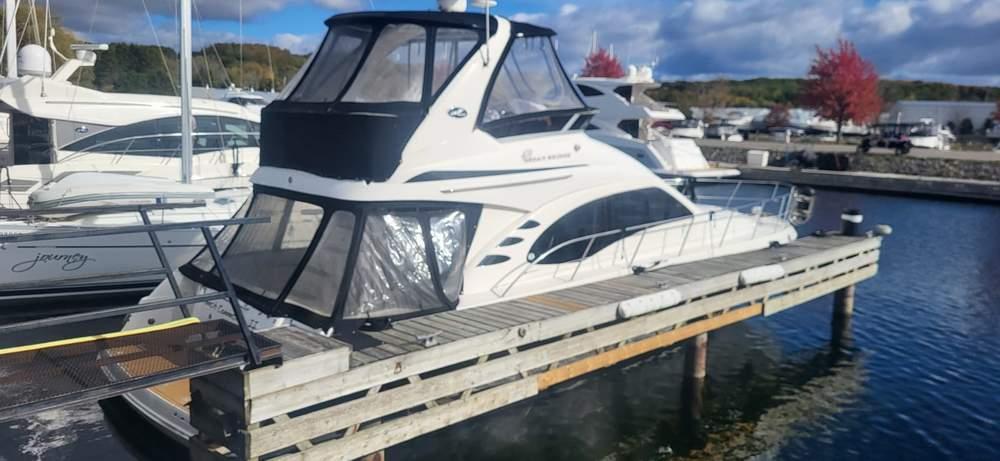

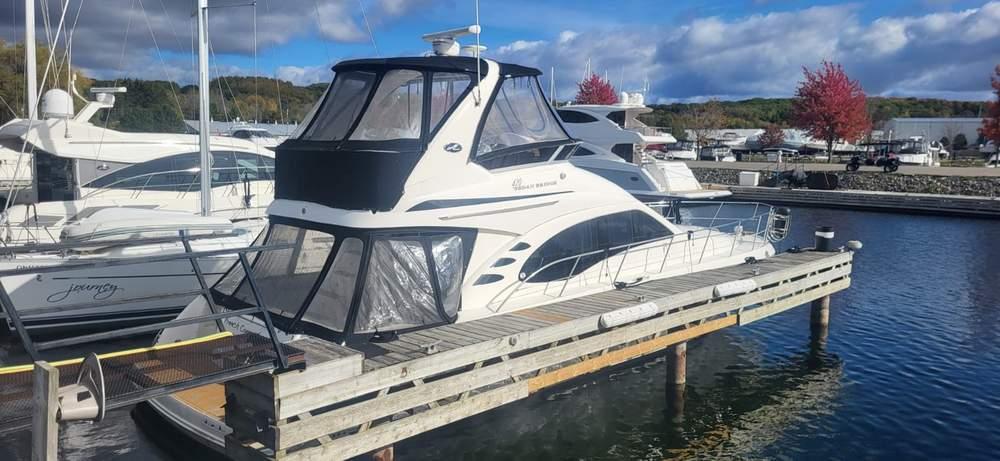

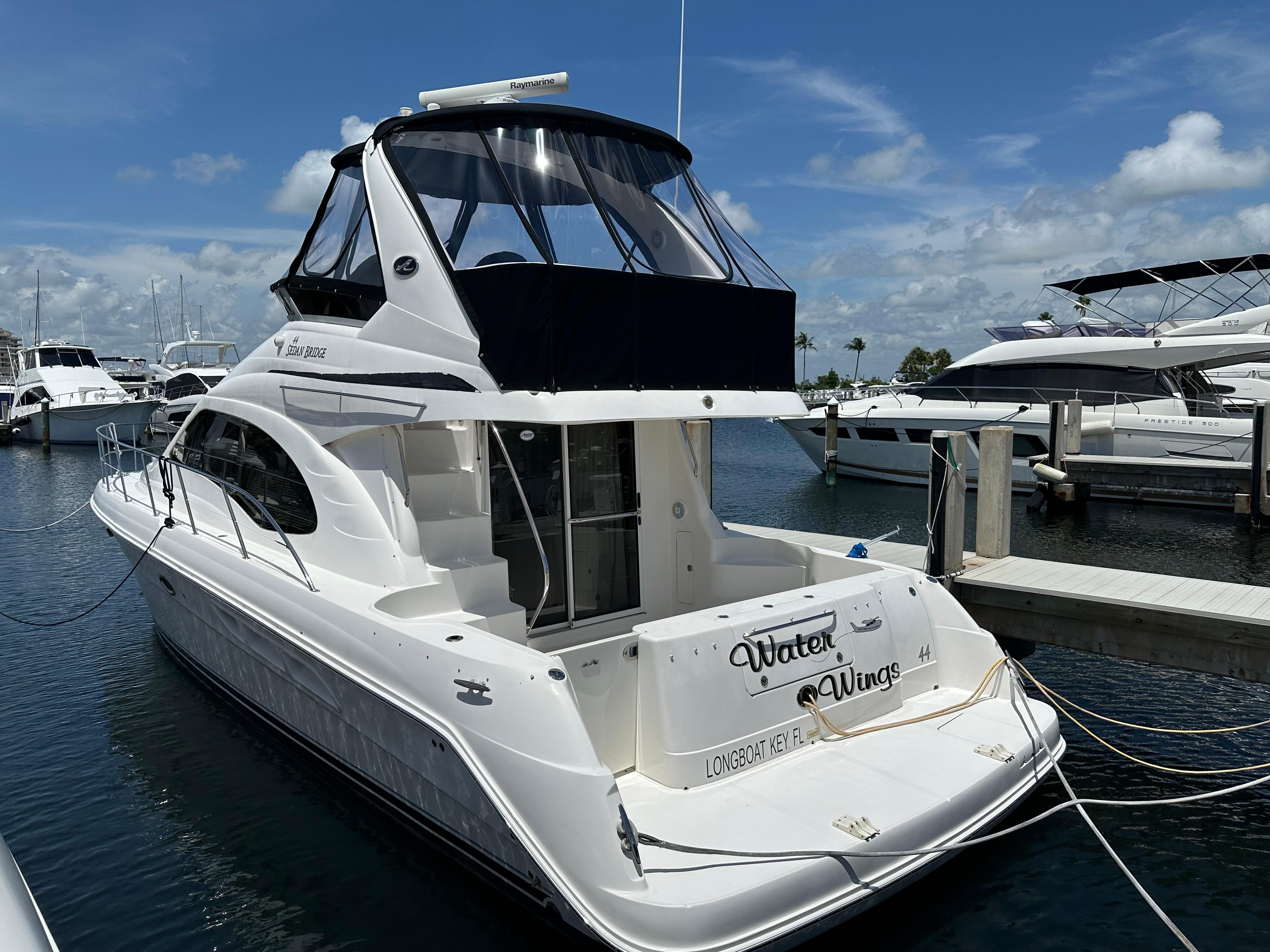

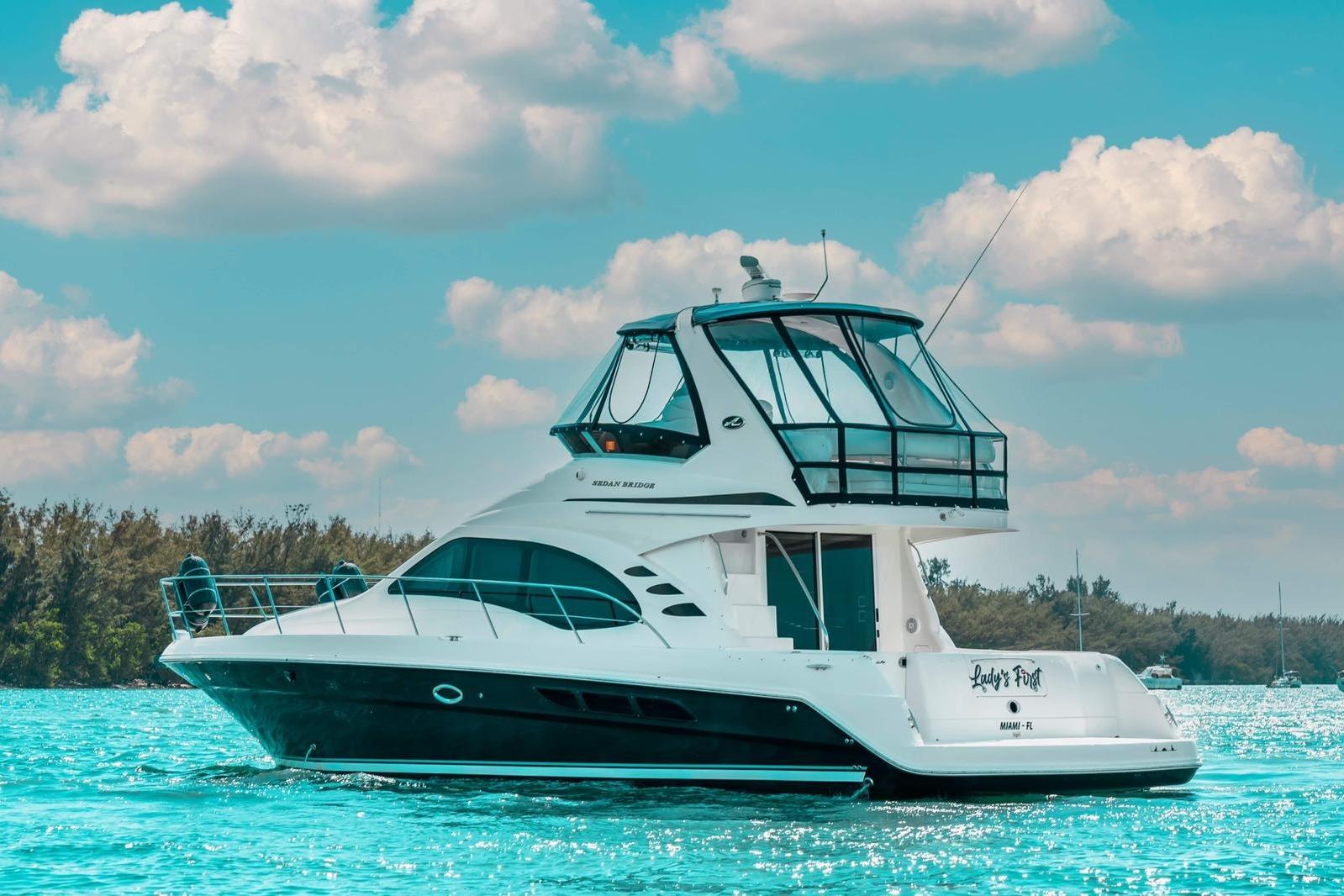

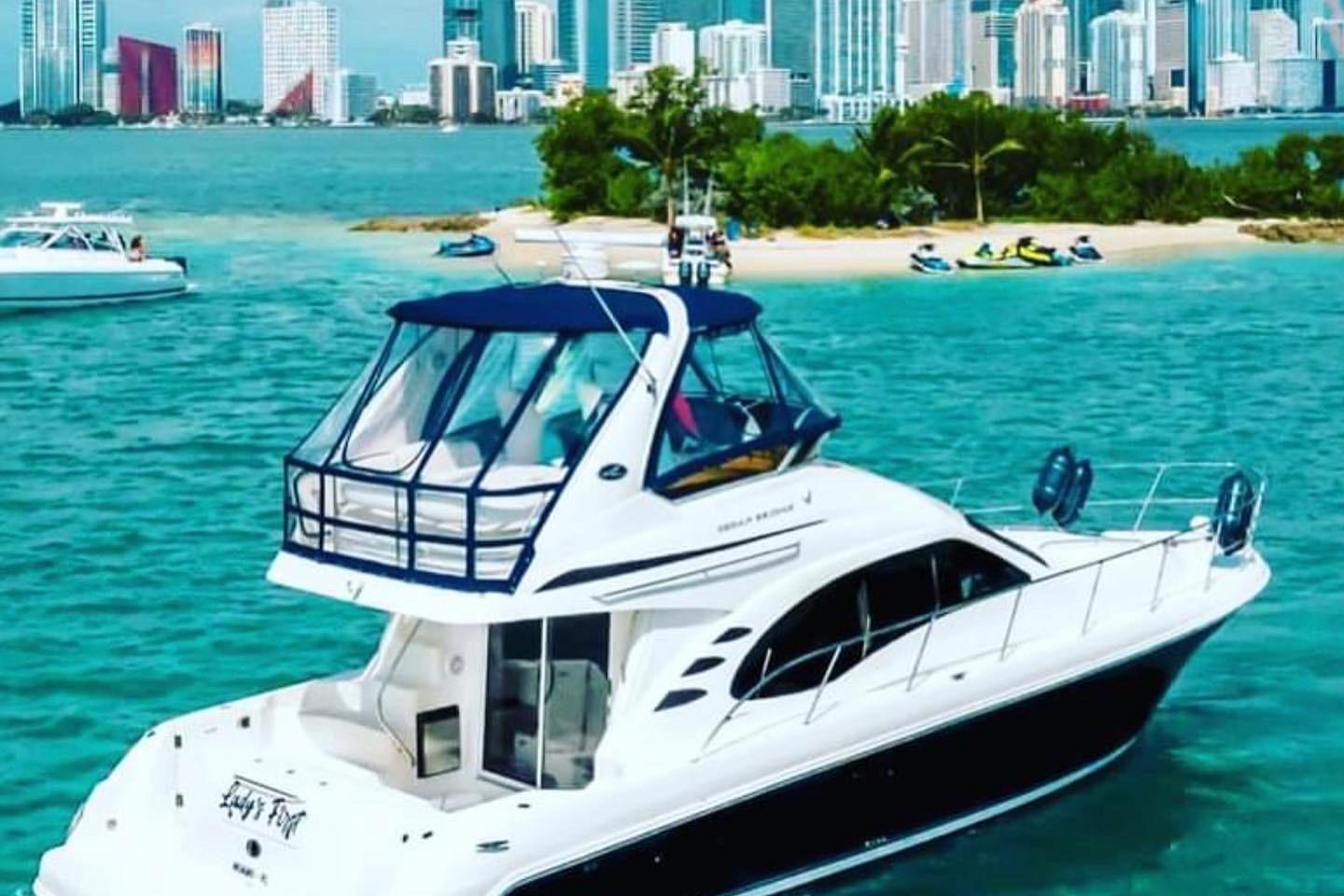

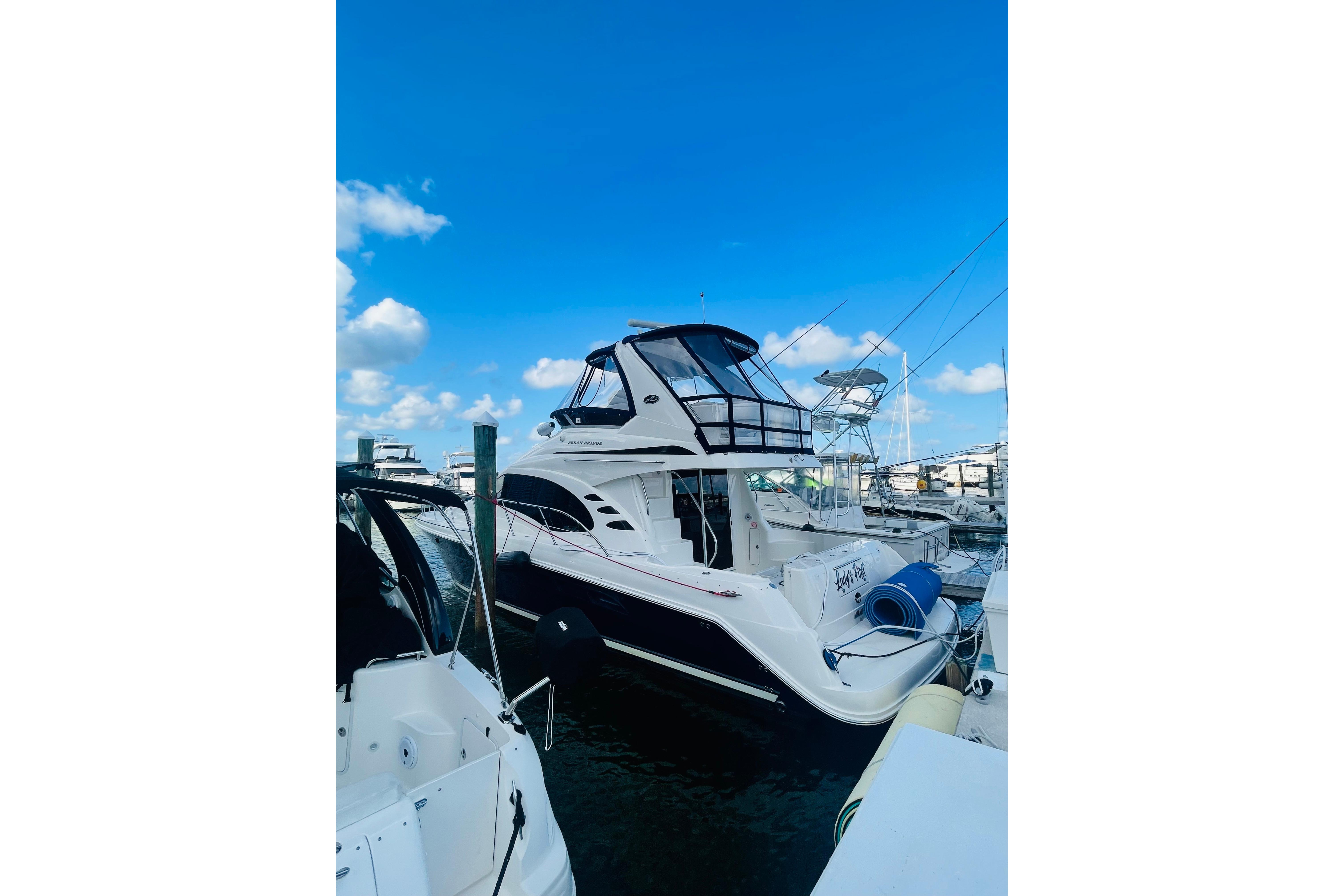

2005 Sea Ray 420 Sedan Bridge —

At-a-Glance Specs

    •    Overall Length (w/ std swim platform): 45’5” (13.84 m)

    •    Beam: 14’3” (4.27 m)

    •    Draft (inboards): 44” (1.12 m)

    •    Dry Weight: 28,500 lb (12,927 kg)

    •    Fuel Capacity: 350 gal (1,325

    •    Fresh Water: 120 gal (454 L)

    •    Holding Tank: 42 gal (159 L)

    •    Deadrise: 18°

    •    Hull Color Option: Navy Blue with white boot stripes.

Power & Systems

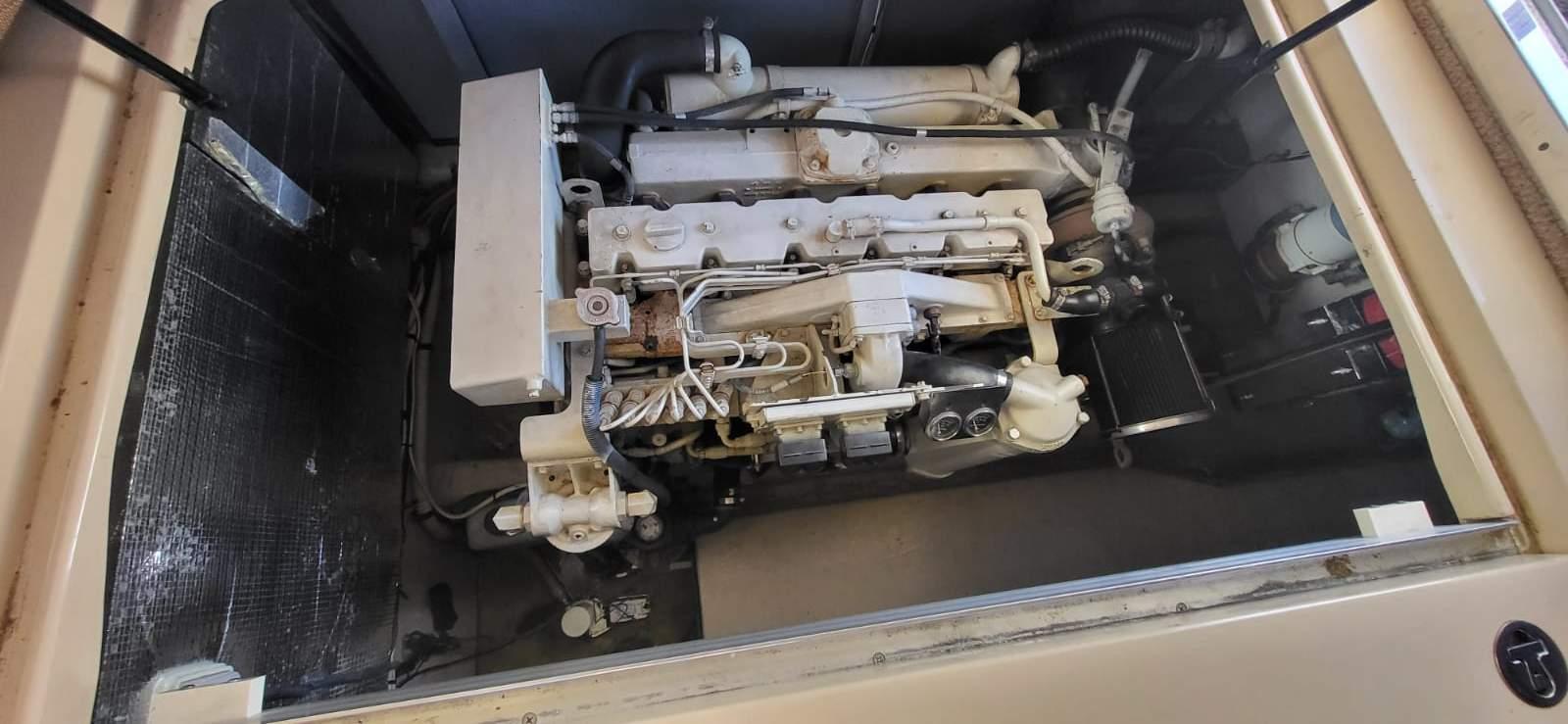

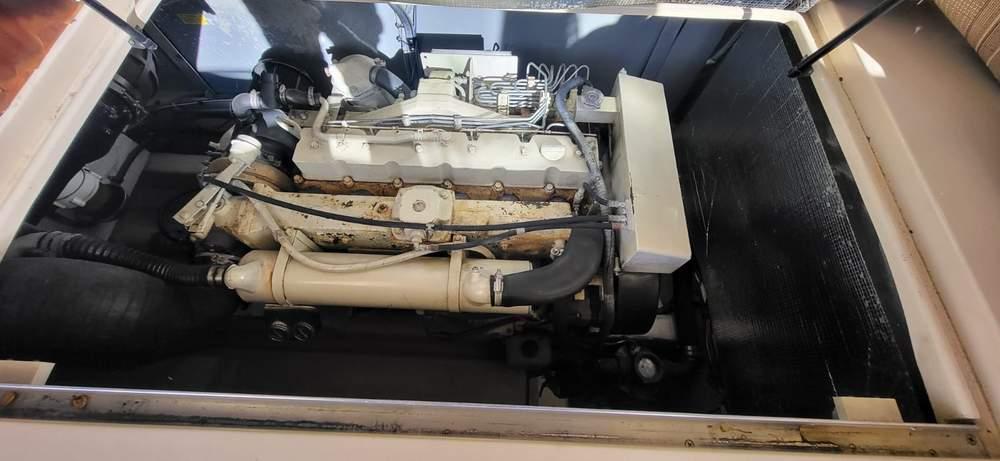

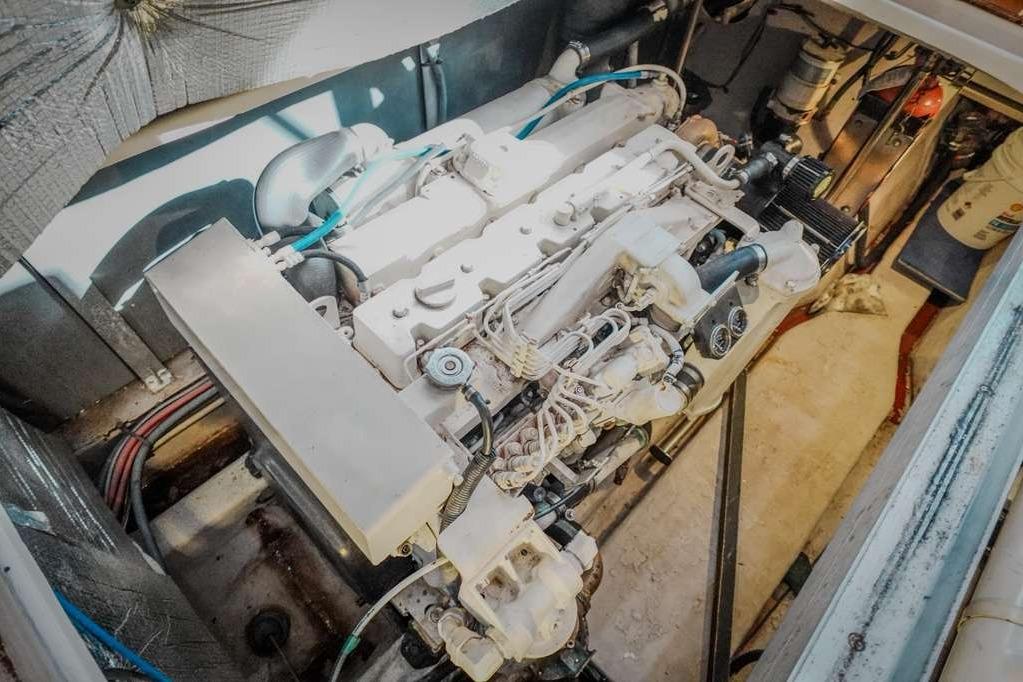

    •    Standard Engines: Twin Cummins MerCruiser 6CTA 8.3M diesel inboards (T-430 hp)

    •    instrumentation

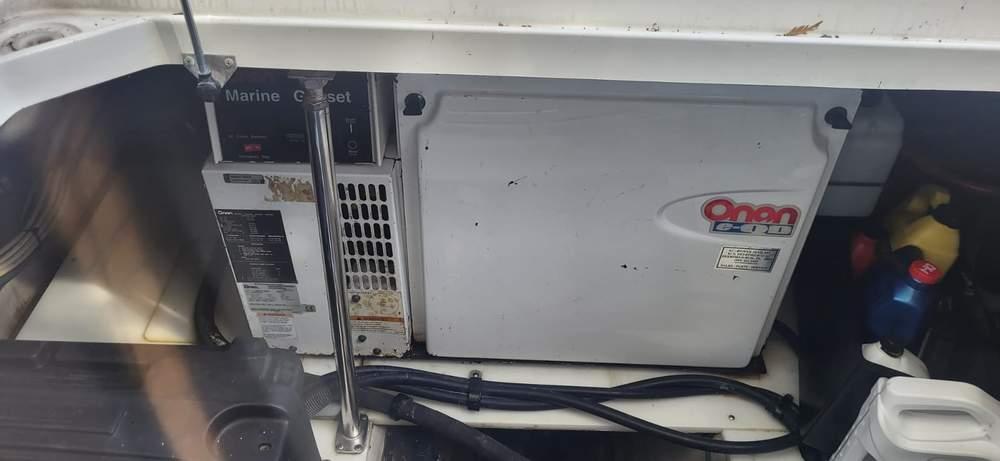

    •    Generator (options):

Onan 9.0 kW diesel

    •    Running Gear: 2” stainless shafts, 4-blade Nibral props, dripless shaft logs (w/ extra seal carrier), manganese-bronze struts & rudders, hydraulic trim tabs

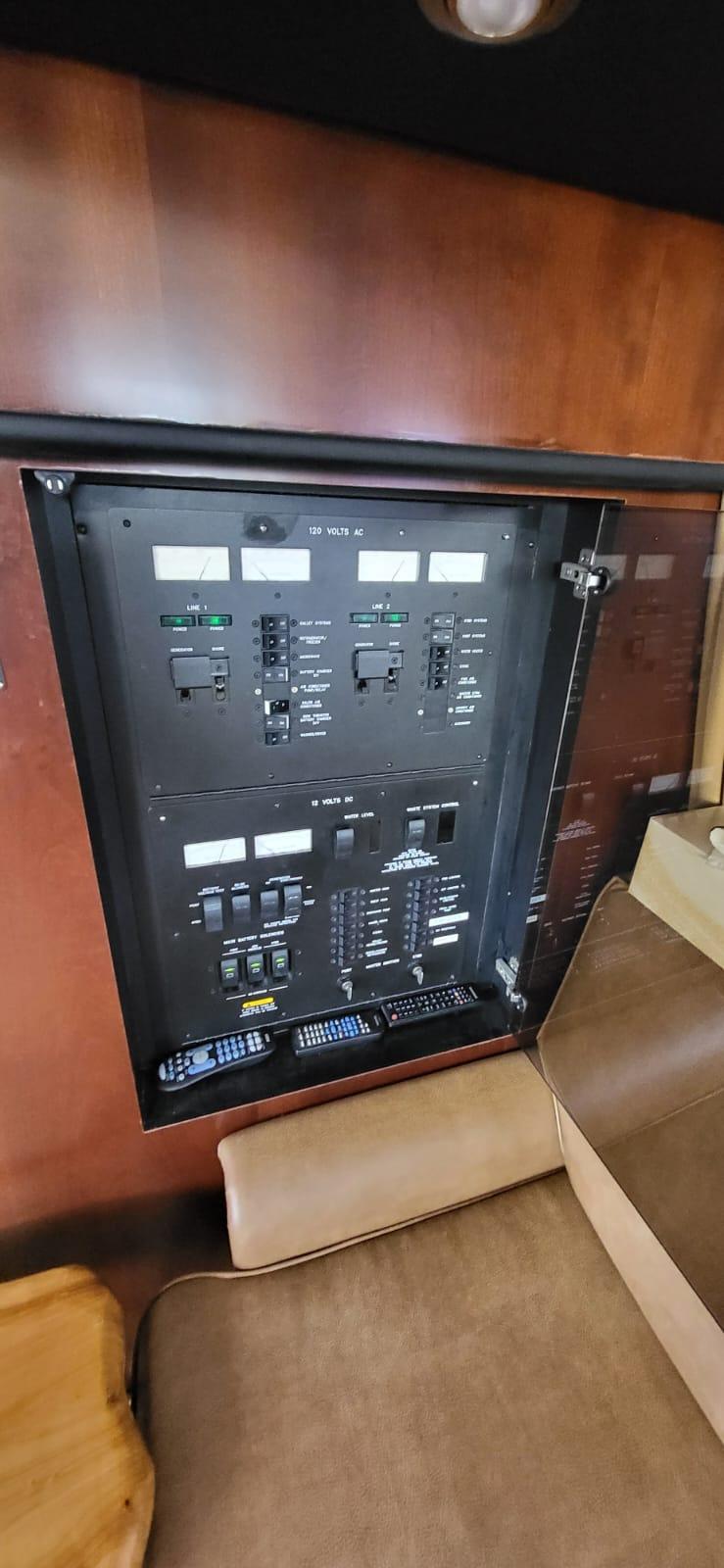

    •    Electrical/Plumbing Highlights: VacuFlush® heads w/ 42-gal holding tank and level indicators, dockside water inlet, seawater strainers, bonding system with zinc plate.

⸻

Areas & Features

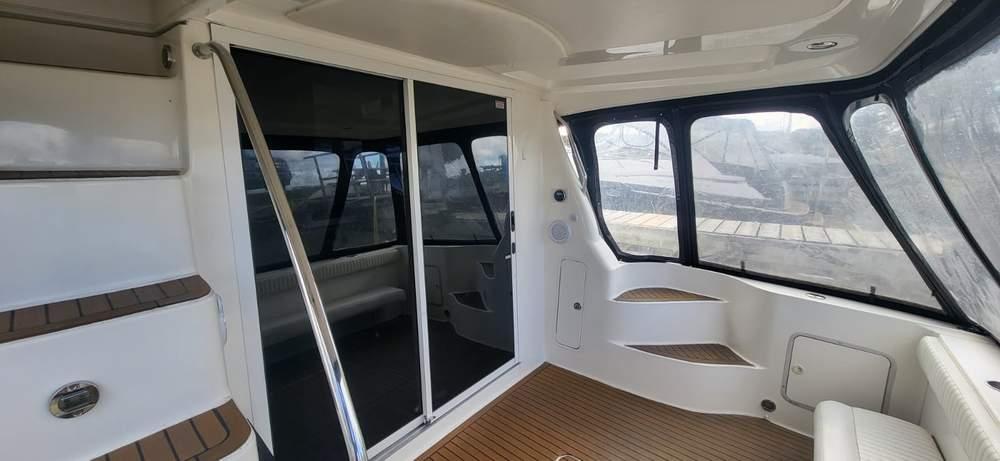

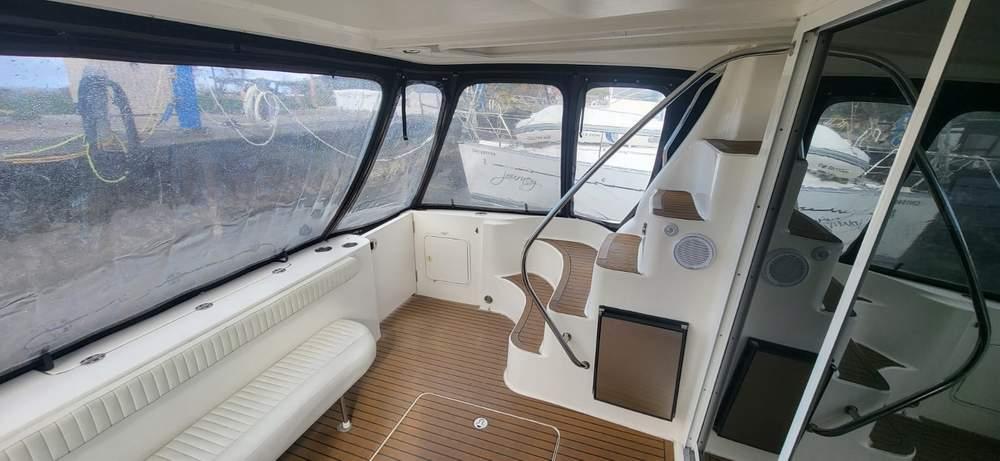

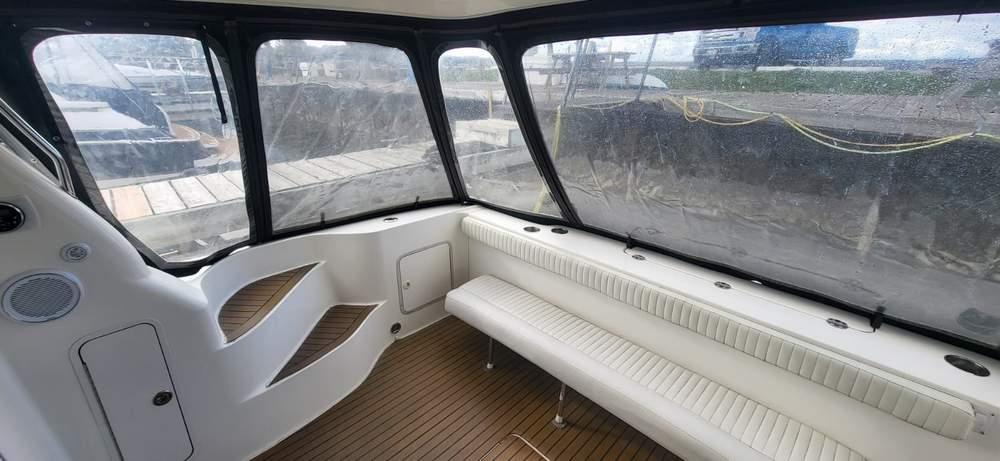

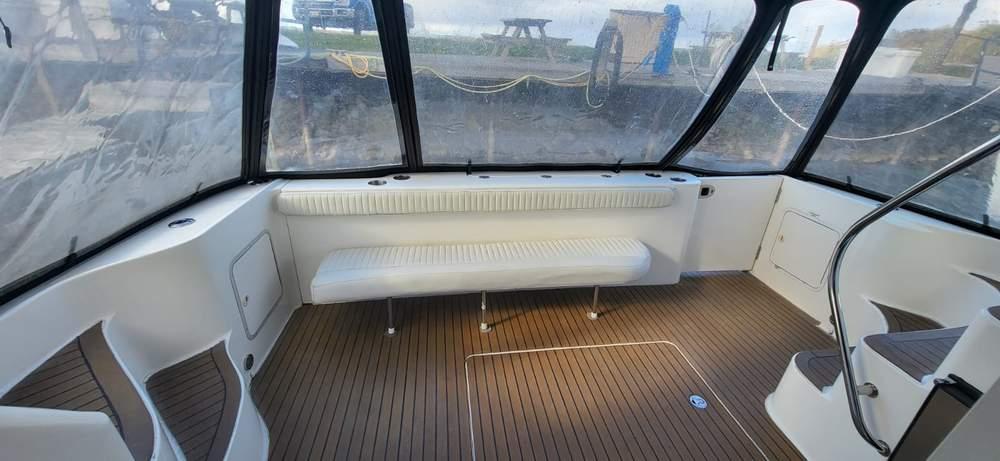

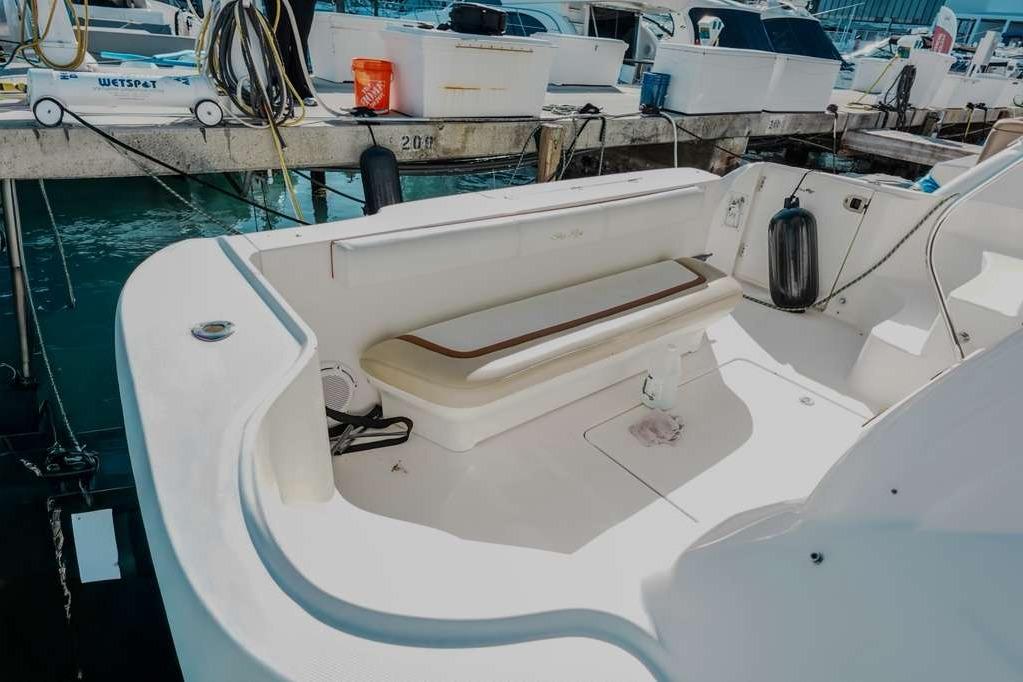

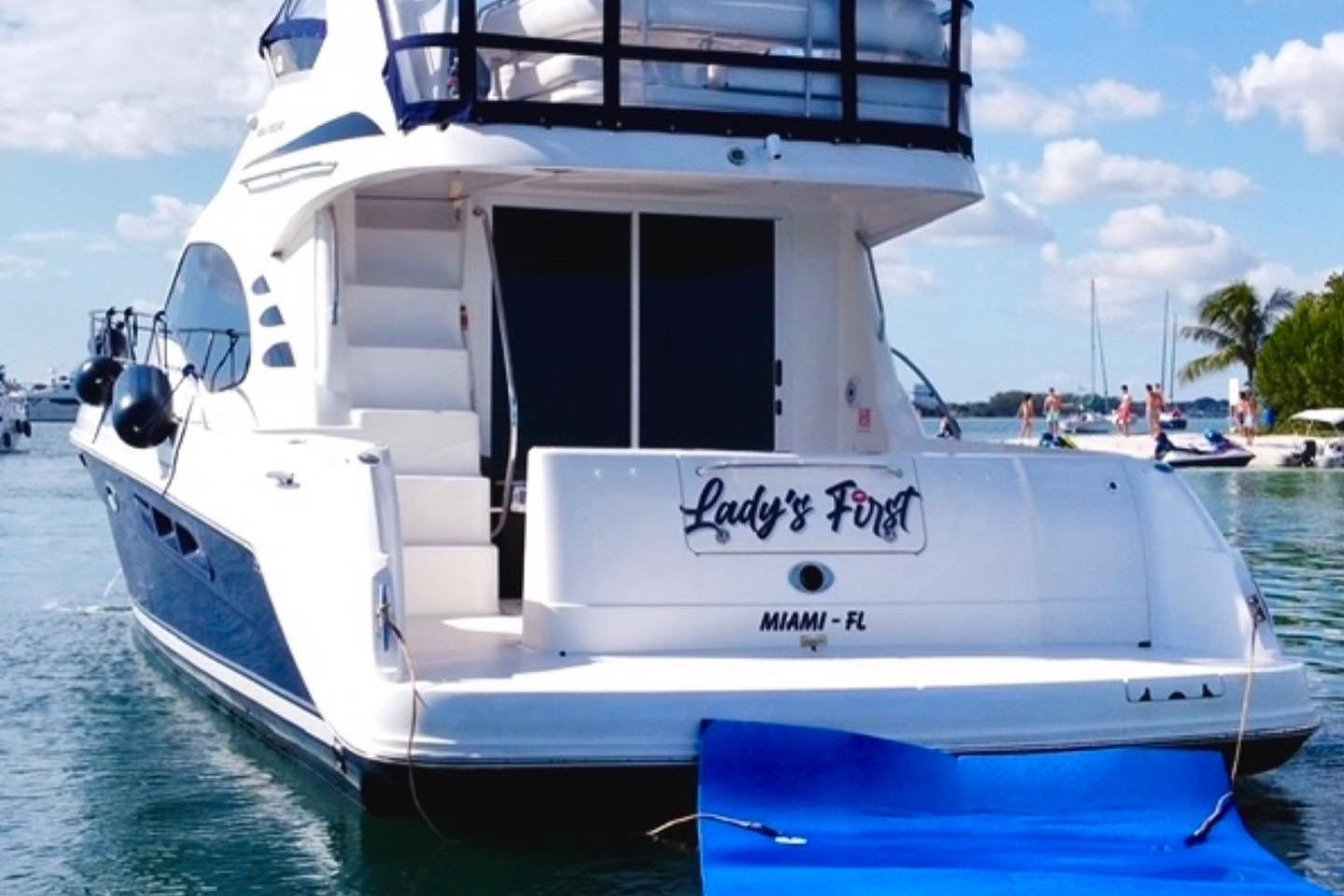

Cockpit

    •    Self-bailing fiberglass liner; gas-assisted engine service hatch

    •    Icemaker (120V) (refrigerator optional)

    •    Indirect lighting, GFCI outlet, molded steps to bridge, transom door

    •    Snap-in carpet liner; transom storage for fenders/gear

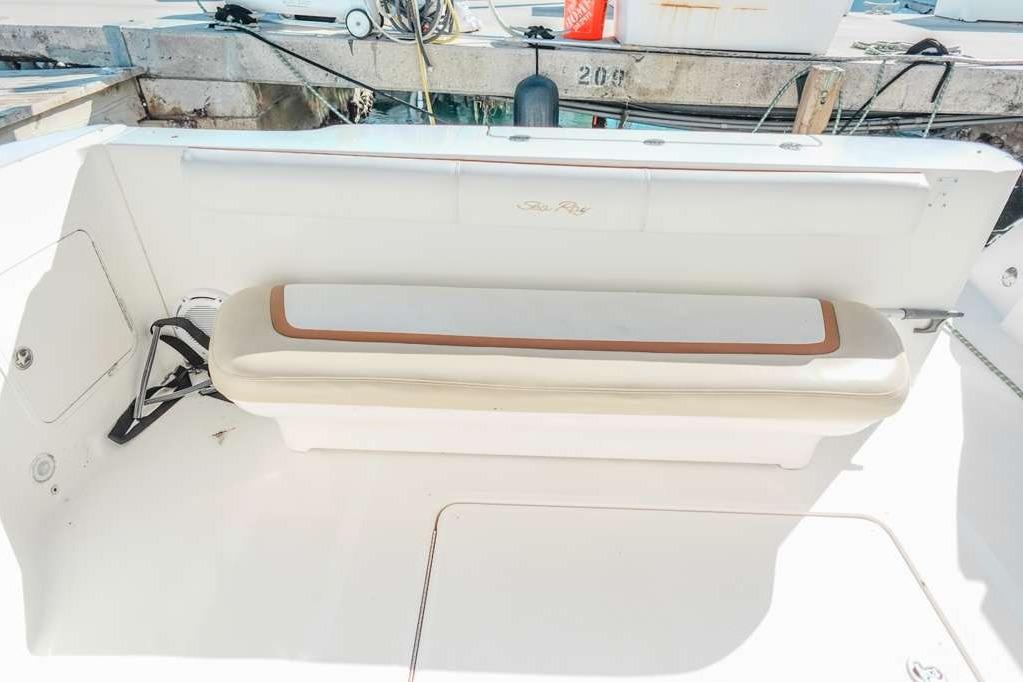

    •    Optional teak cockpit sole; optional cockpit table; optional removable aft bench w/ storage.

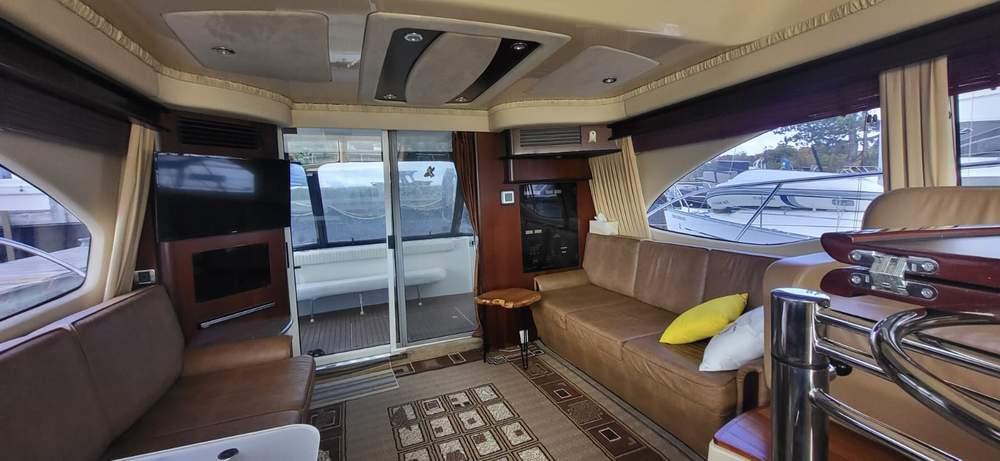

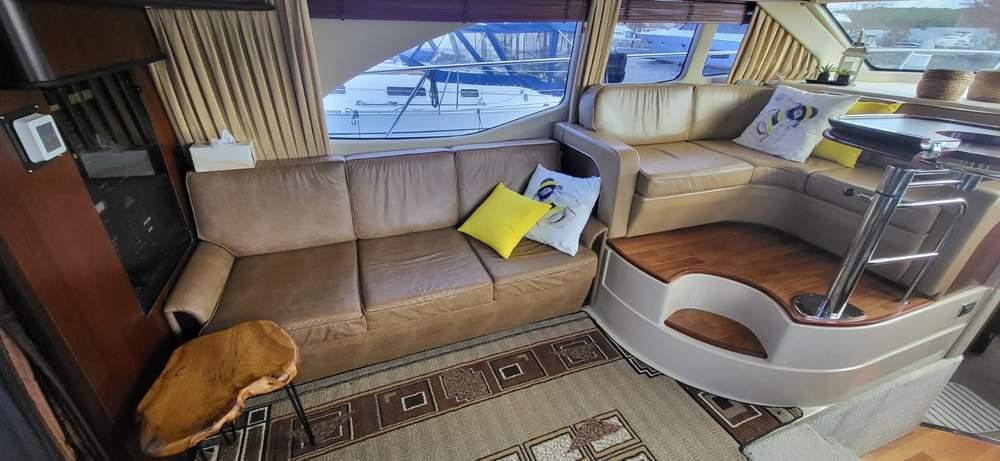

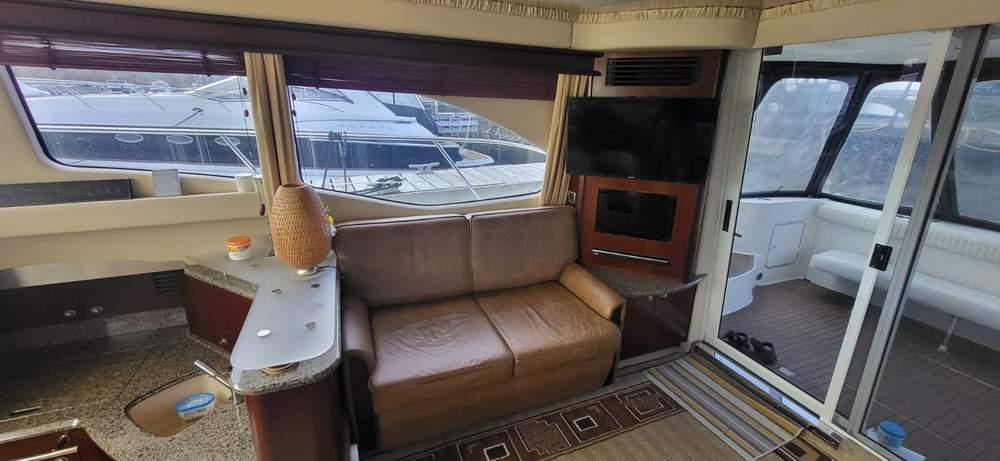

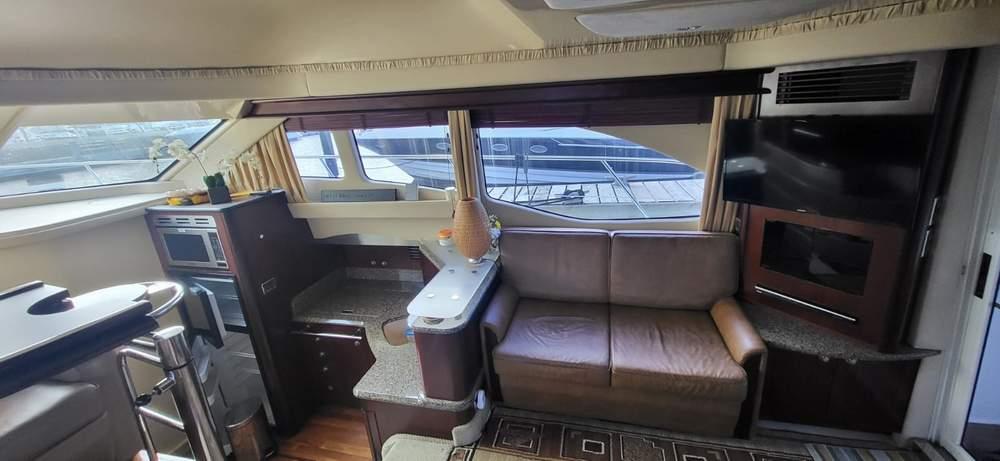

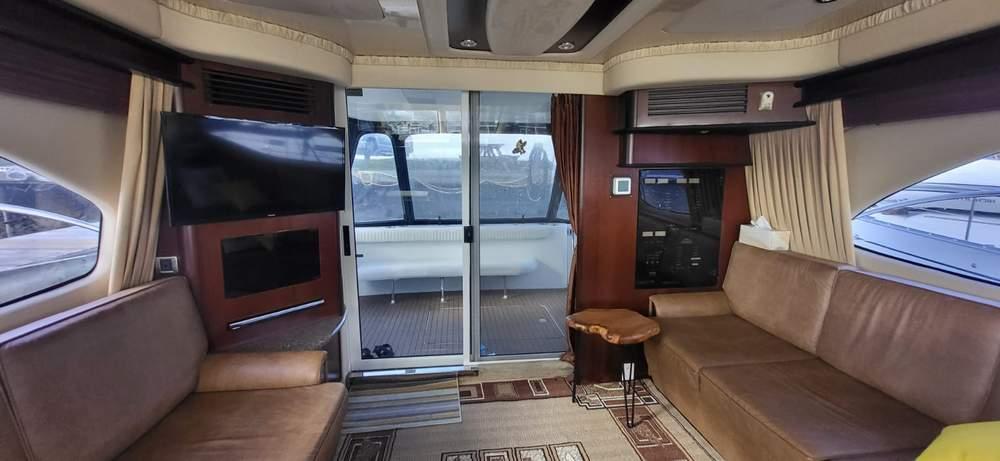

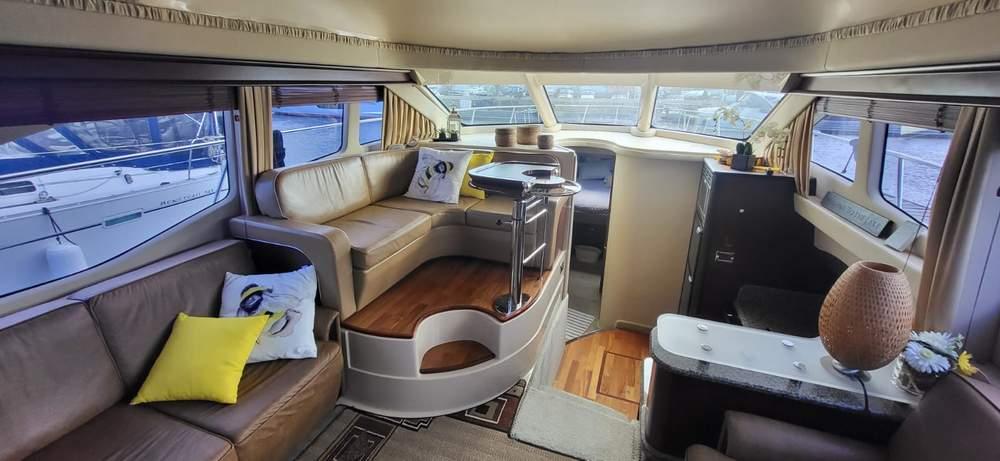

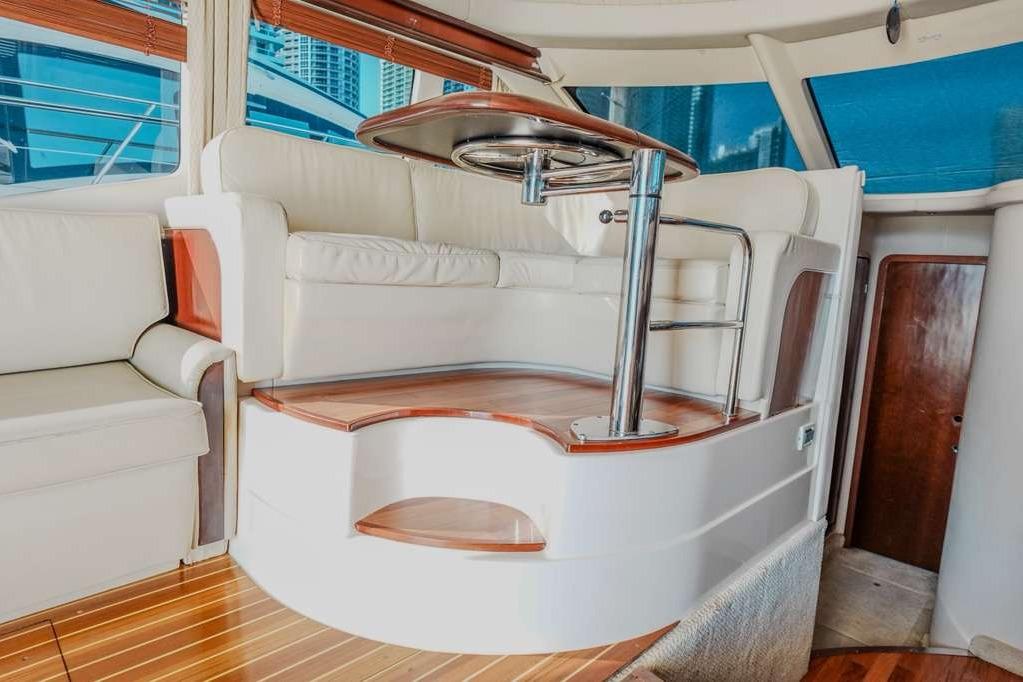

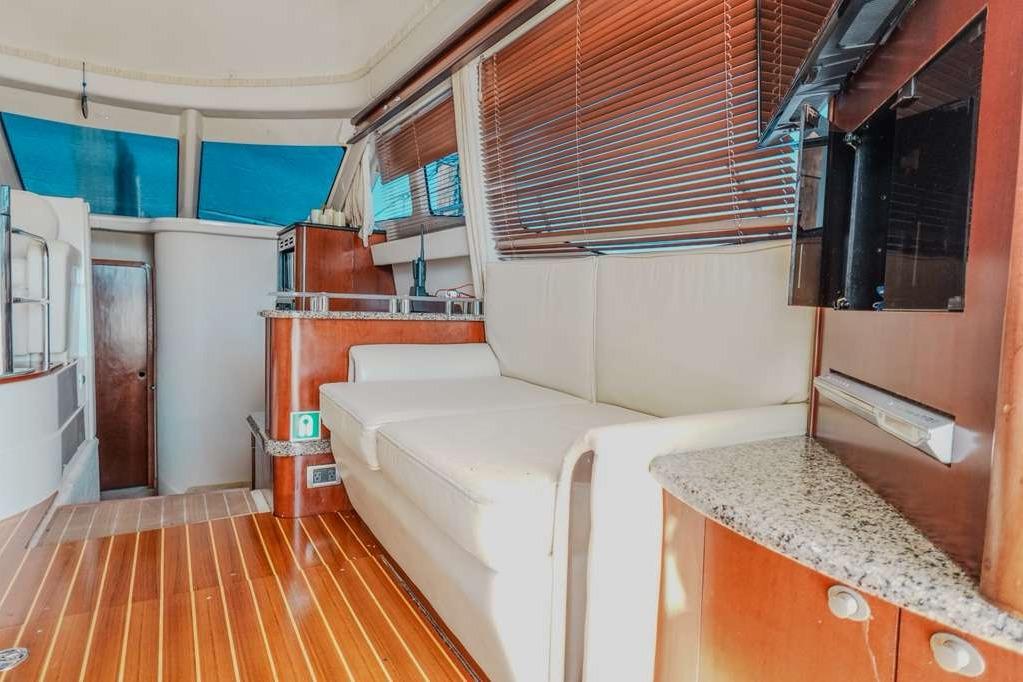

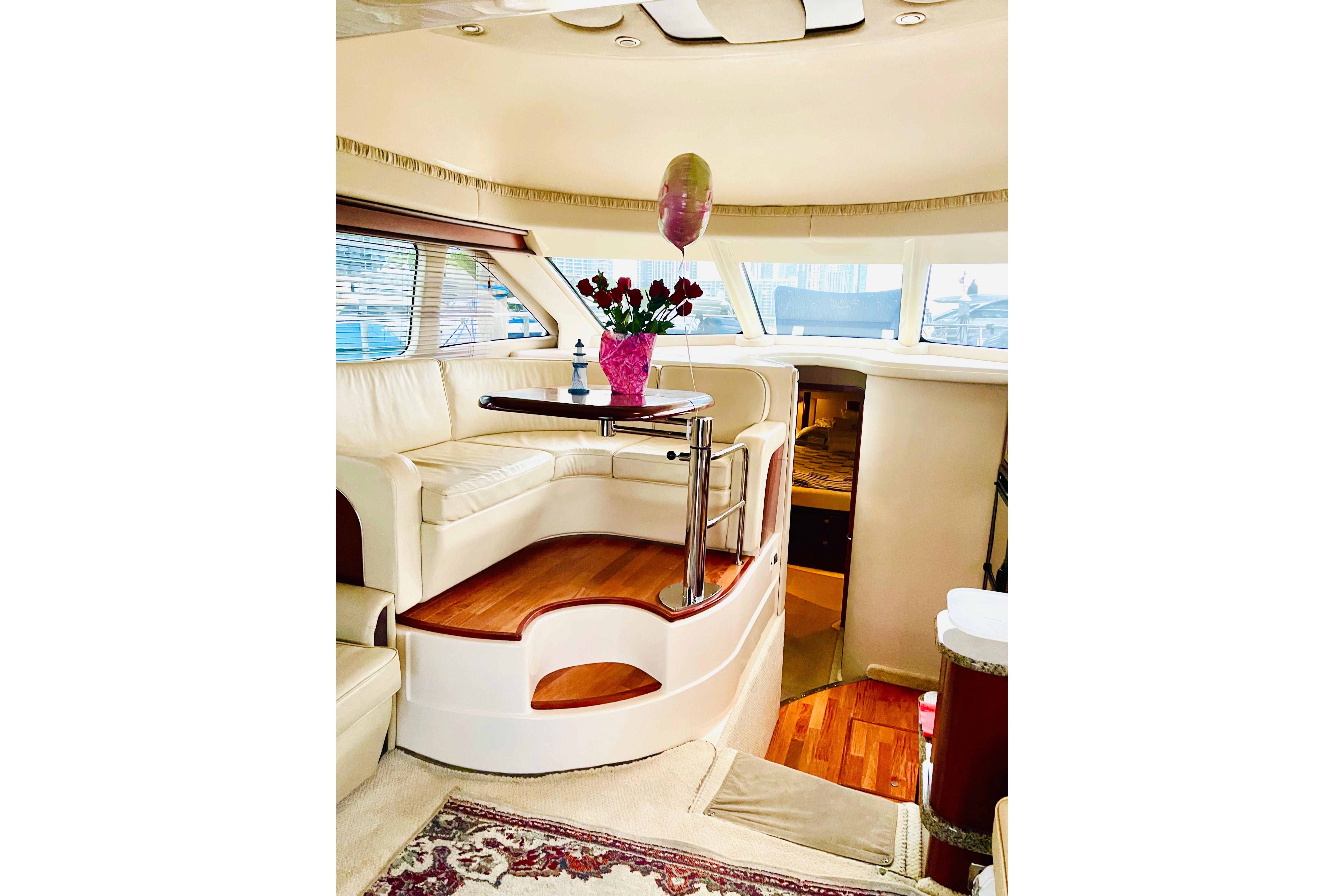

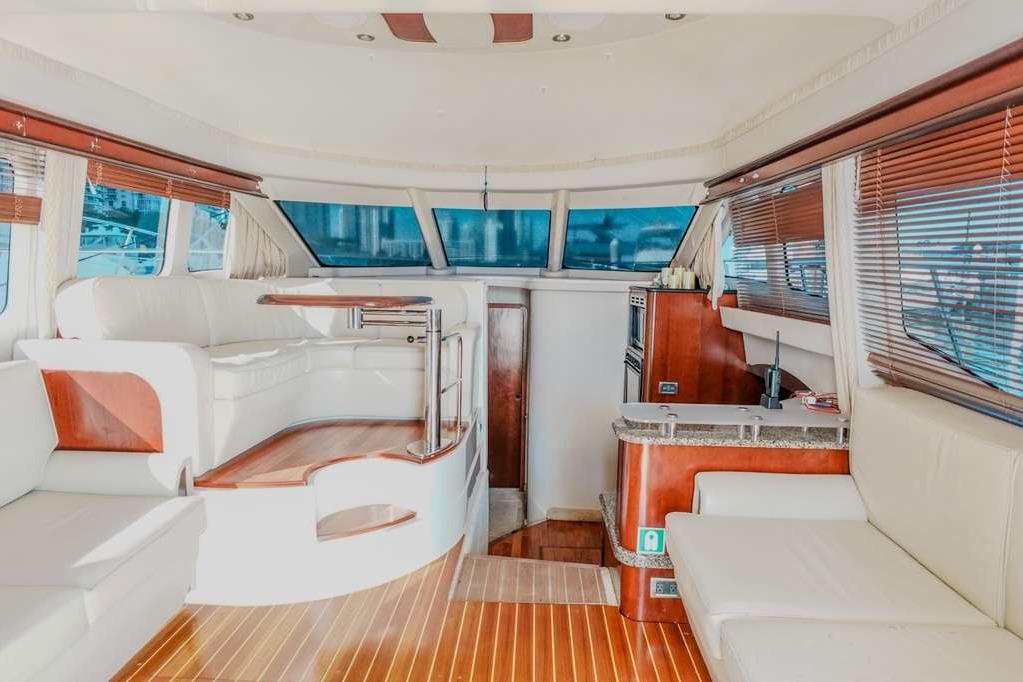

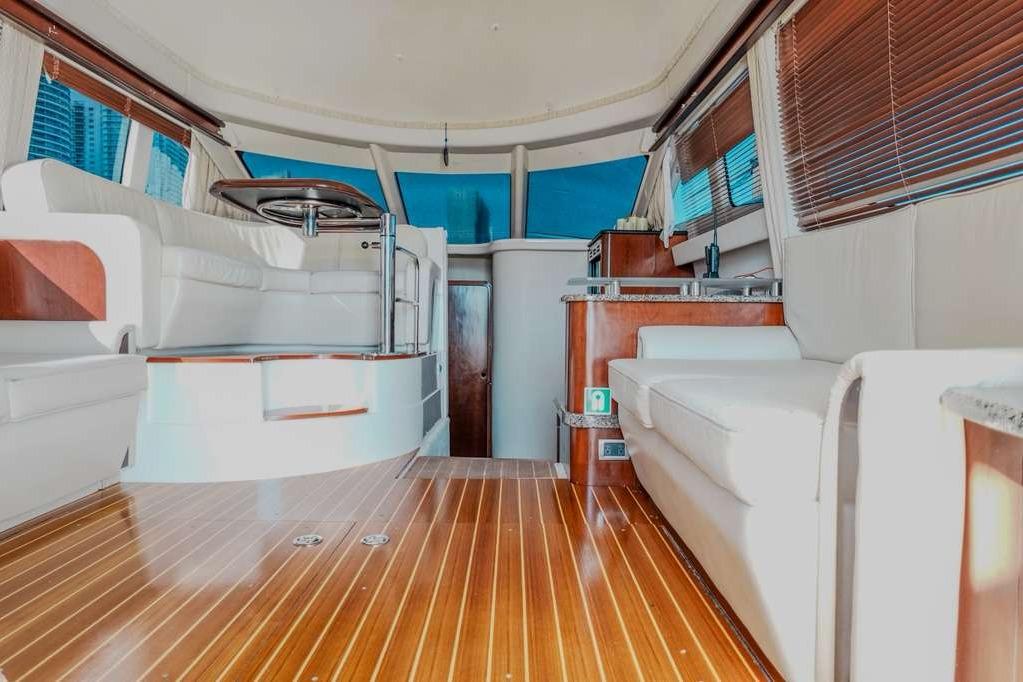

Salon

    •    Ultraleather HP™ seating; blossom-cherry cabinetry; wood blinds

    •    LCD flatscreen TV w/ DVD (standard) and Clarion® stereo (satellite-ready)

    •    Optional hi-lo gloss wood salon table (stools available)

    •    Deep-pile carpet with Sunbrella® runners; 120V GFCI outlets; carbon-monoxide monitors

    •    Optional sofa w/ pullout berth (port).

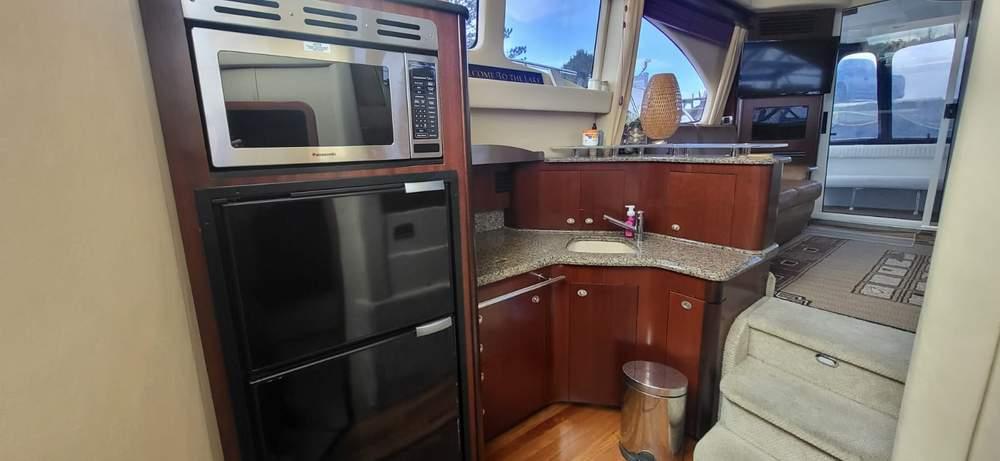

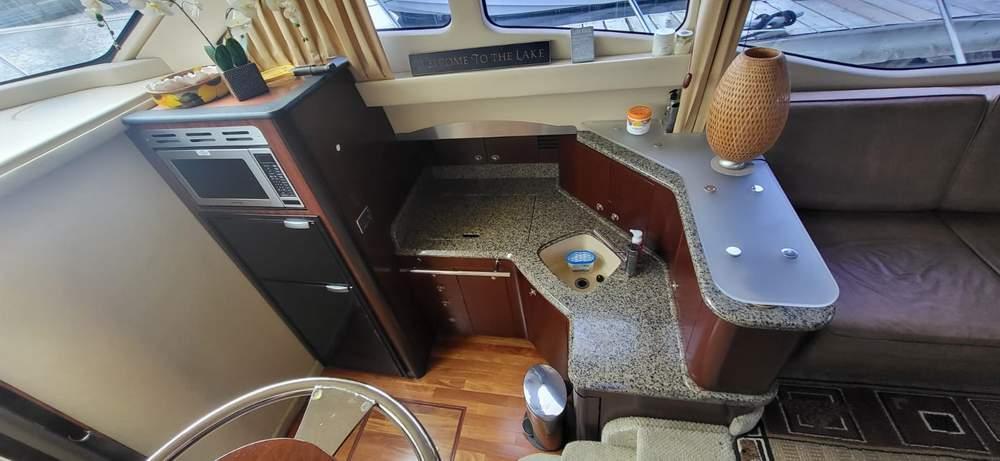

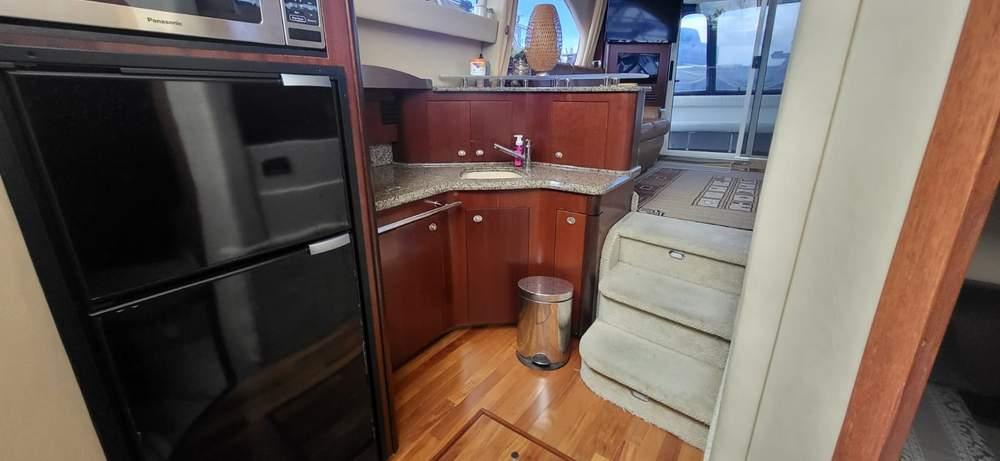

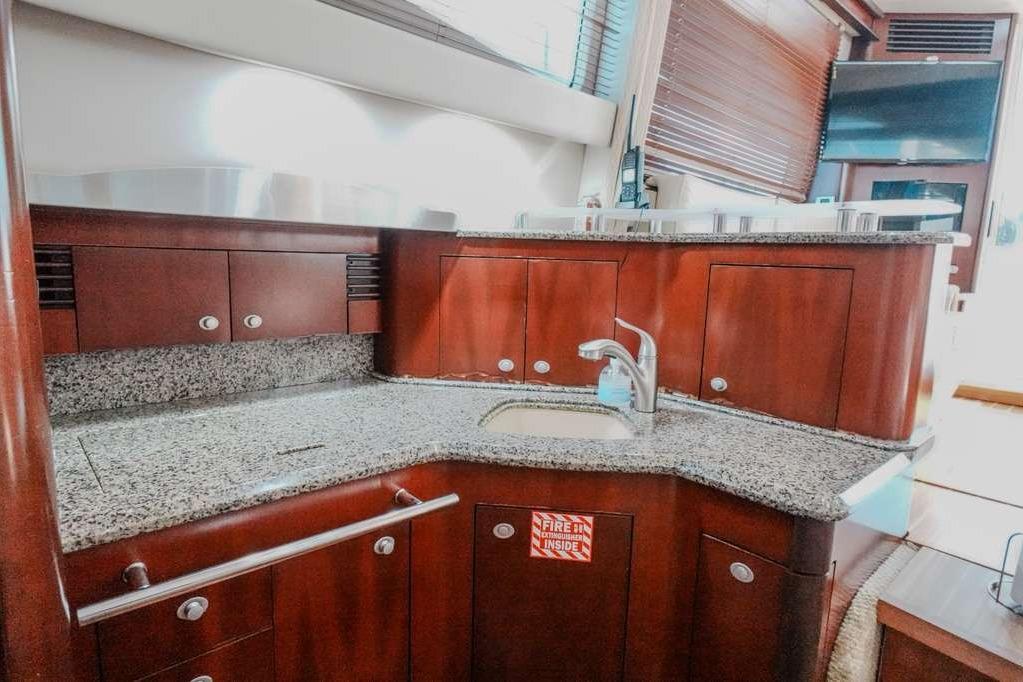

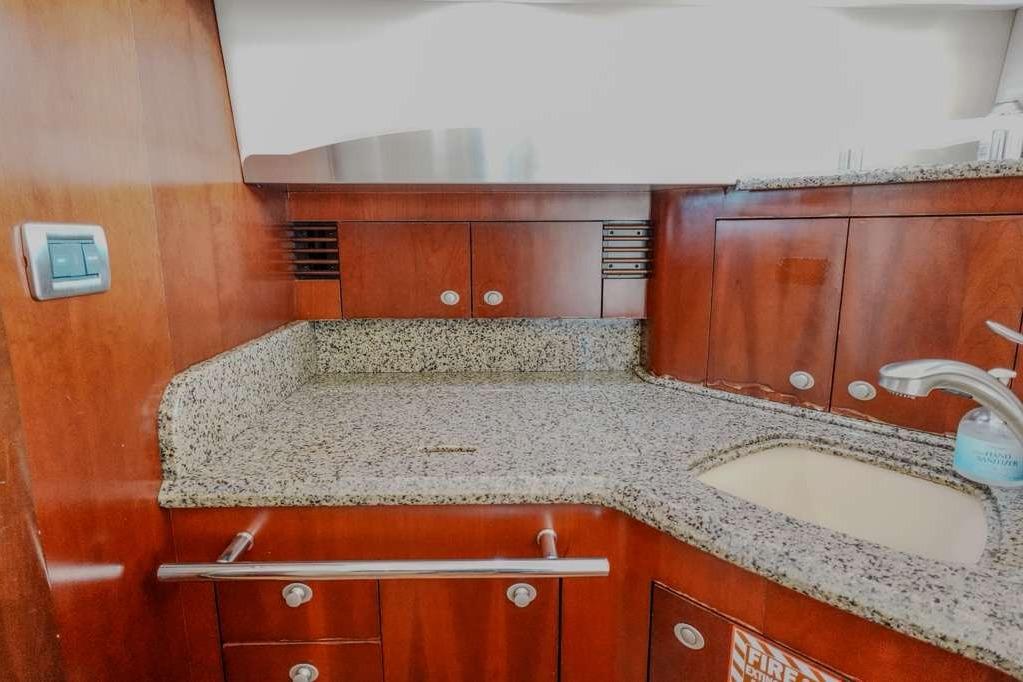

Galley (open to salon)

    •    Solid-surface breakfast bar, wood-finished galley, stainless handrail

    •    Recessed two-burner cooktop, microwave/convection oven, refrigerator/freezer, coffeemaker

    •    Ample drawer & locker storage, dedicated lighting.

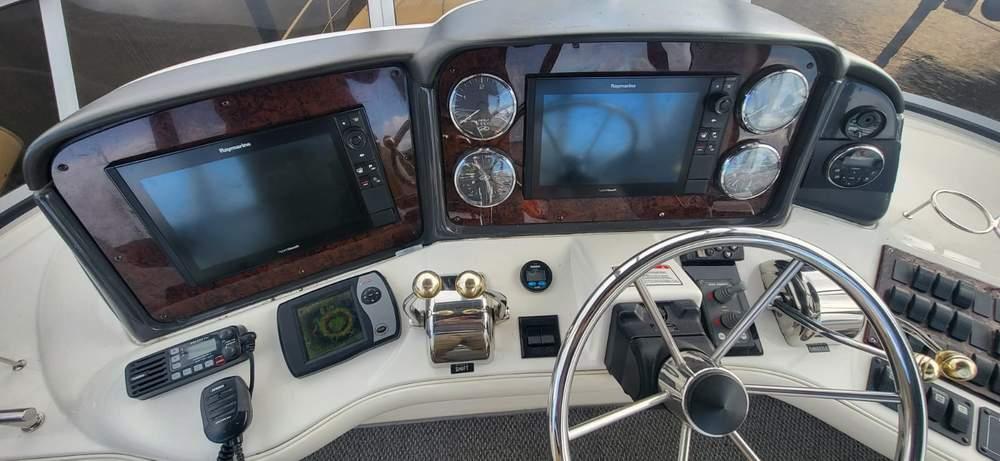

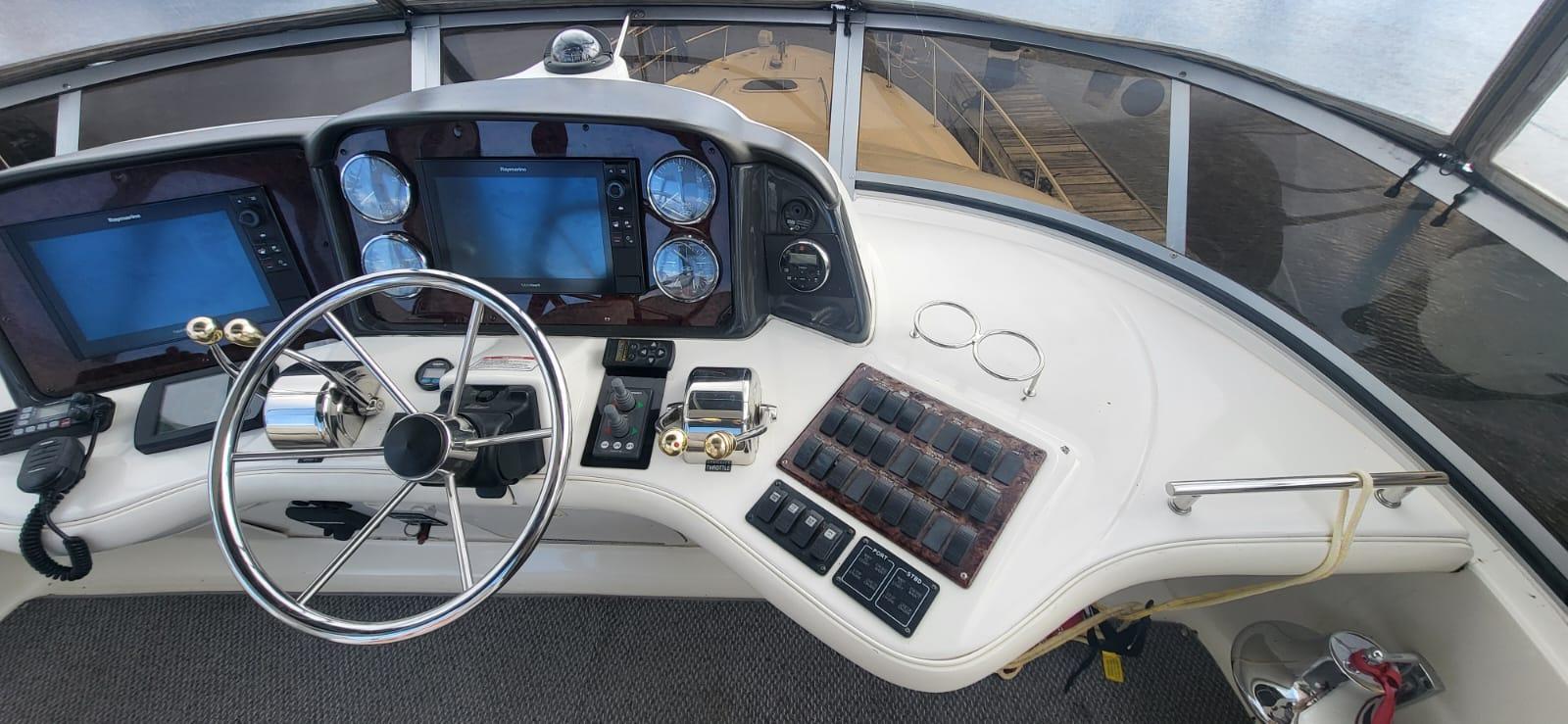

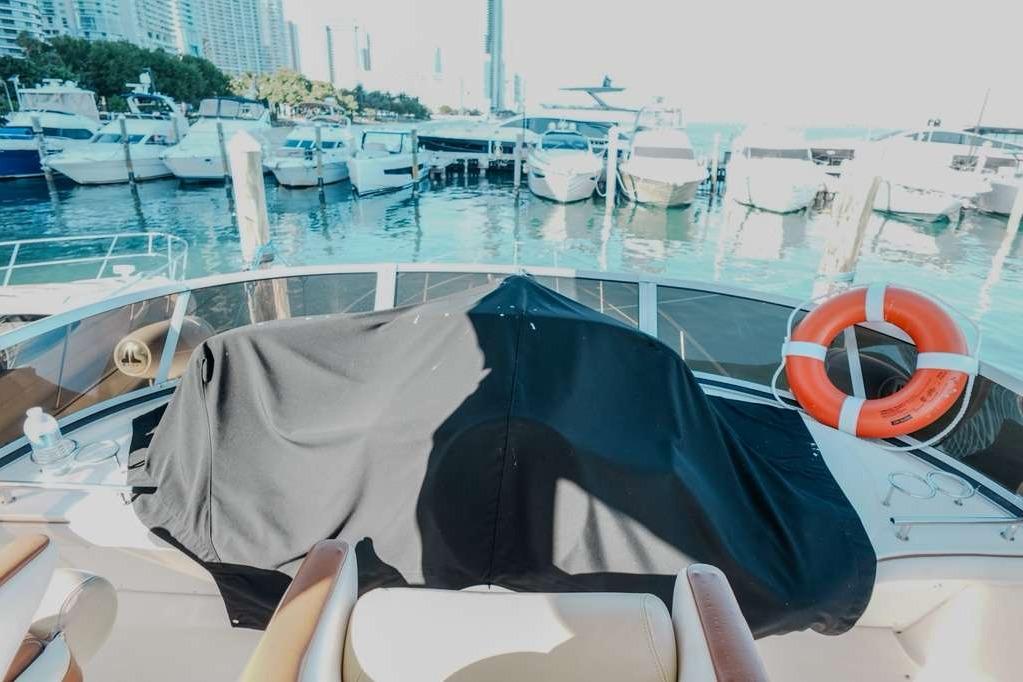

Helm (Bridge Control Station)

    •    Center/forward helm with dual custom Euro-style seats (flip-up bolsters, armrests, slide/swivel, pneumatic height adjust)

    •    Hydraulic steering with wood-accent wheel; backlit Sea Ray instrumentation

    •    SmartCraft® diagnostics & System View available with 480 CE engines (fuel flow/range, temps, synch, alarms, maintenance records)

    •    Raymarine® VHF & GPS standard; options included C120 radar/chartplotter, autopilot, fishfinder, and Sea Ray Navigator™ II 12.1” touch PC with radar overlay.

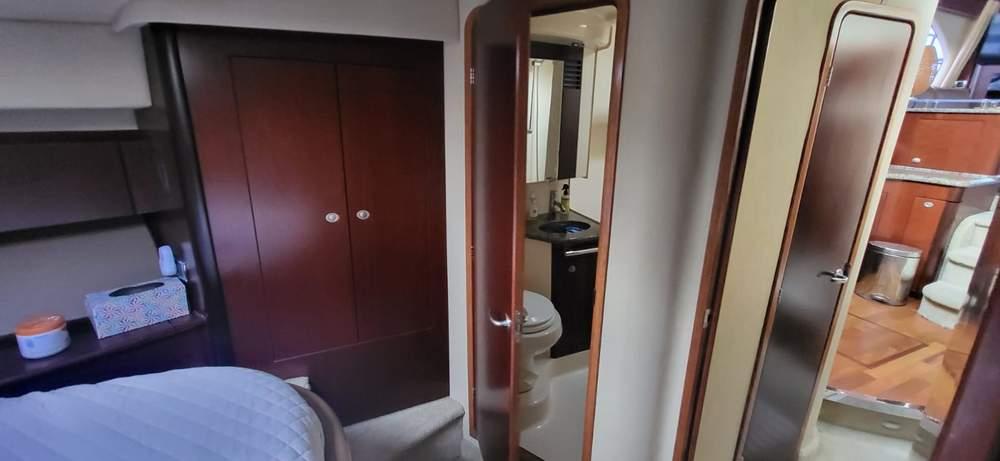

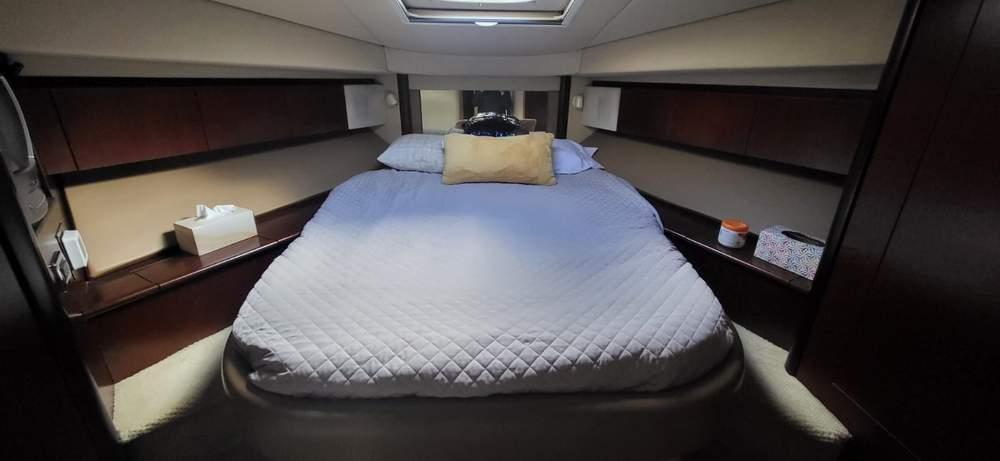

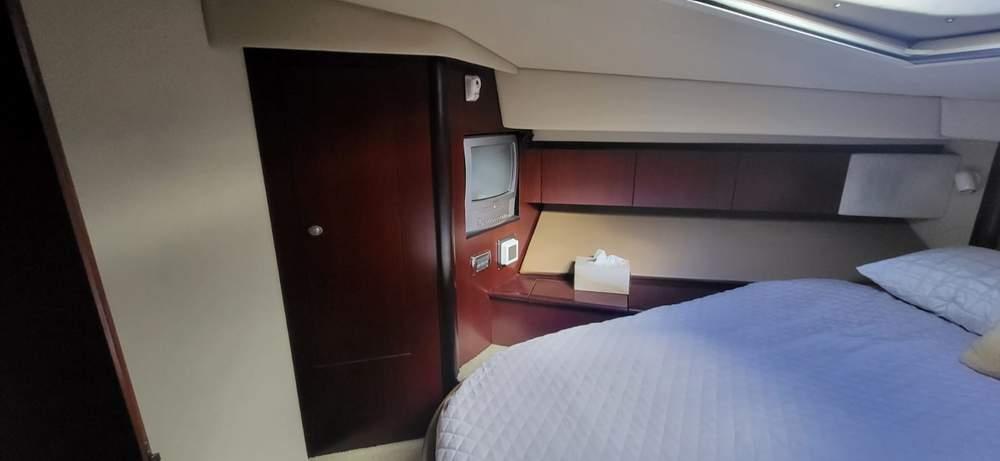

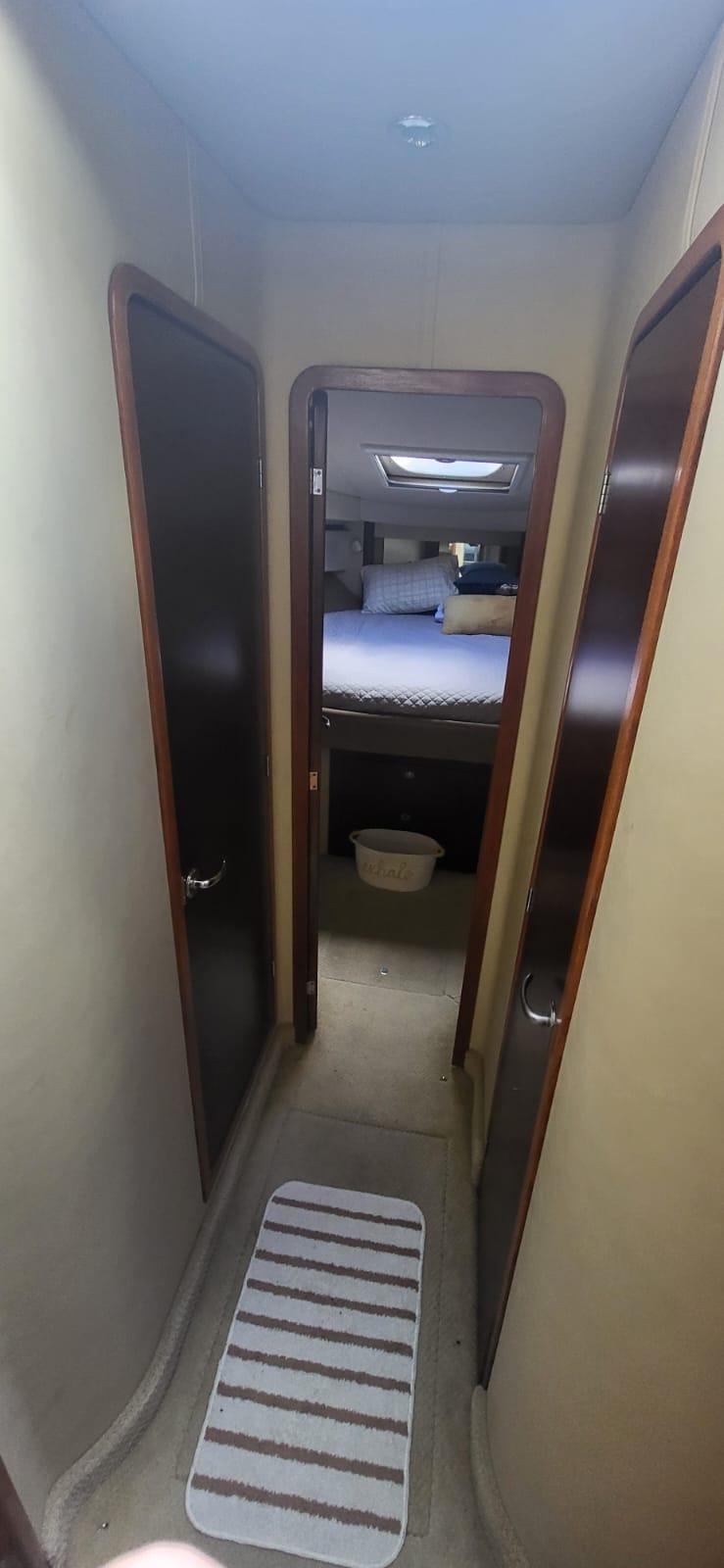

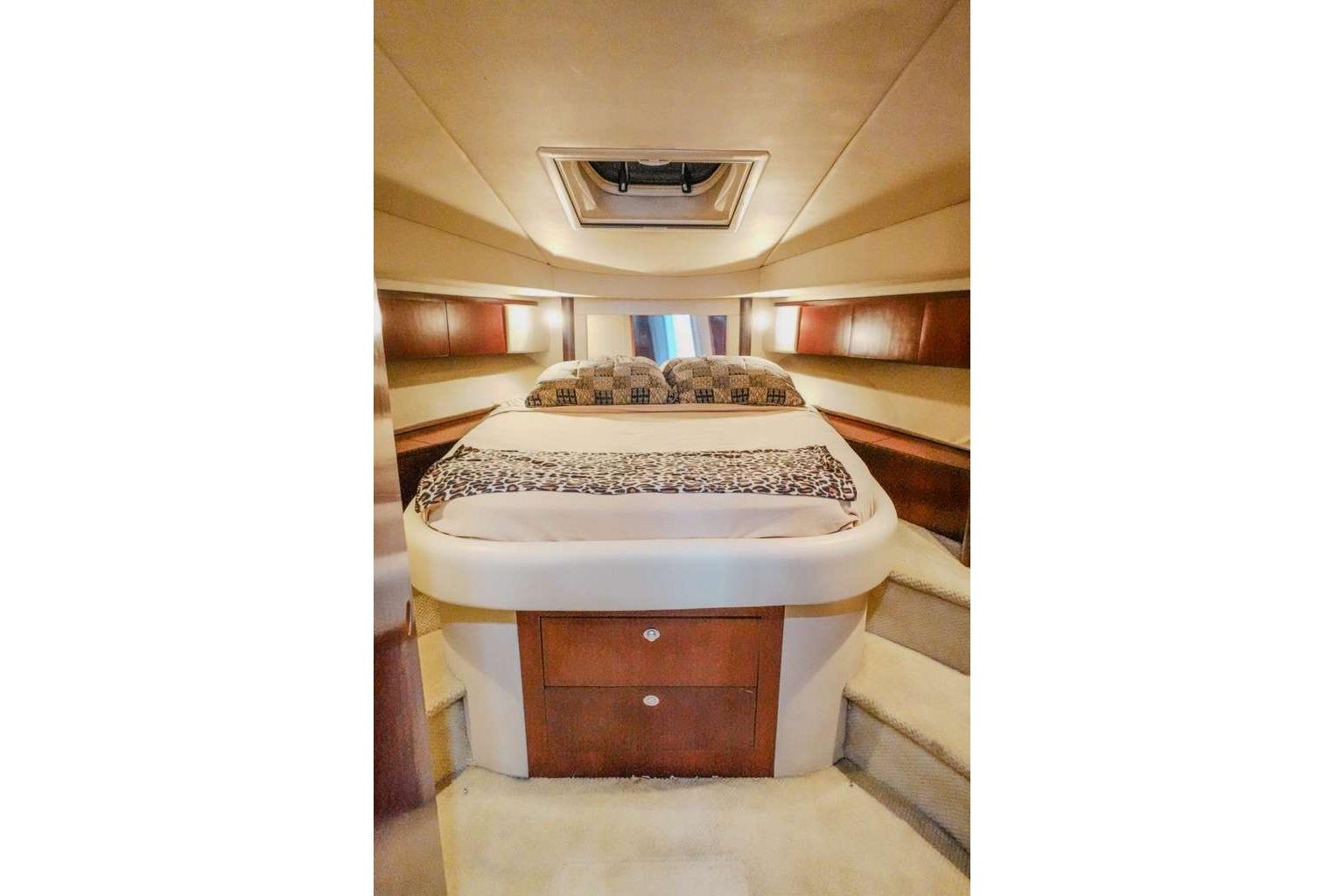

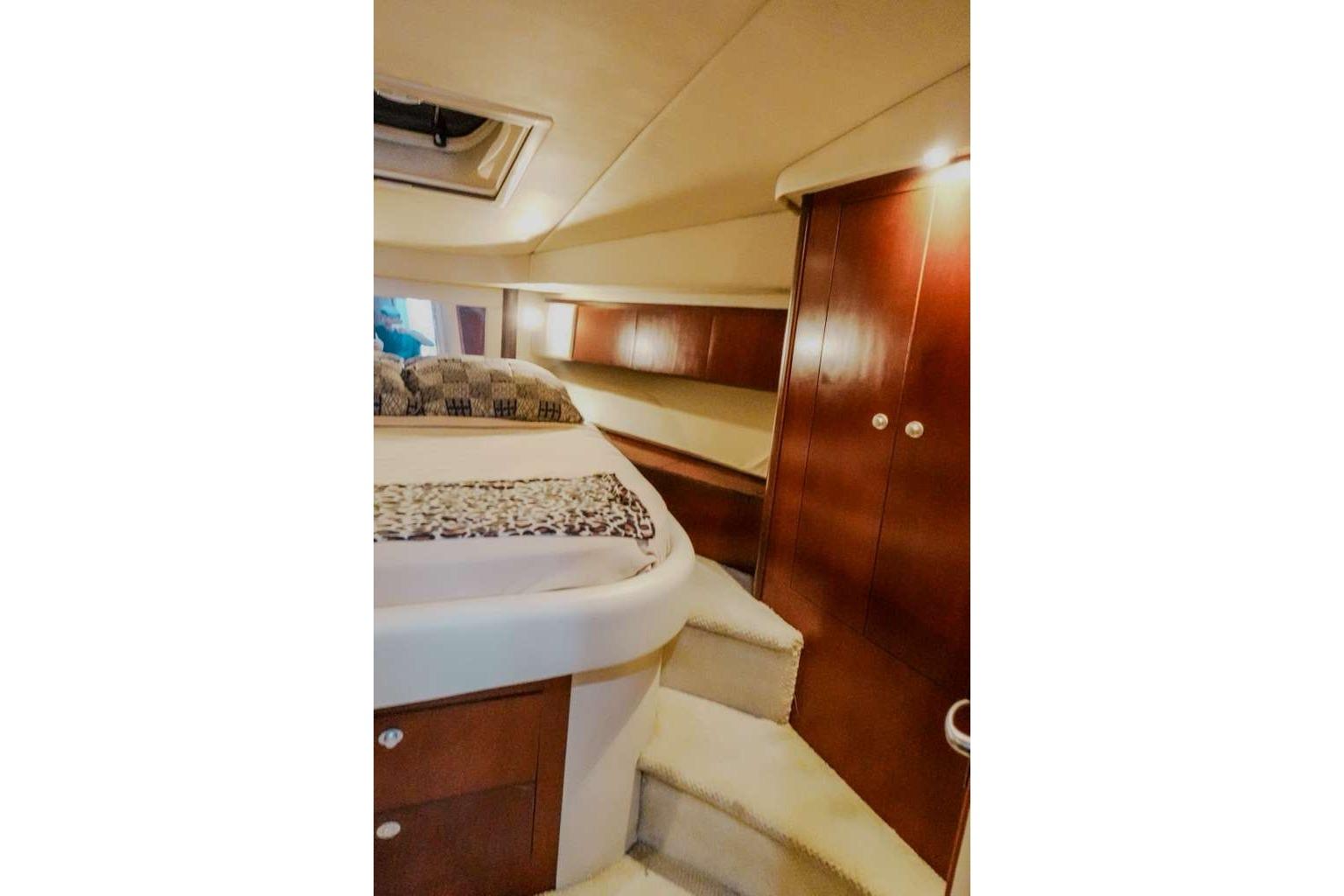

Master Stateroom (Forward)

    •    Full-size island berth with innerspring mattress; hanging lockers & drawer storage

    •    13” TV/DVD (factory brochure), reading lights, overhead hatch with screen/shade

    •    Ensuite access to head (layout varies by hull).

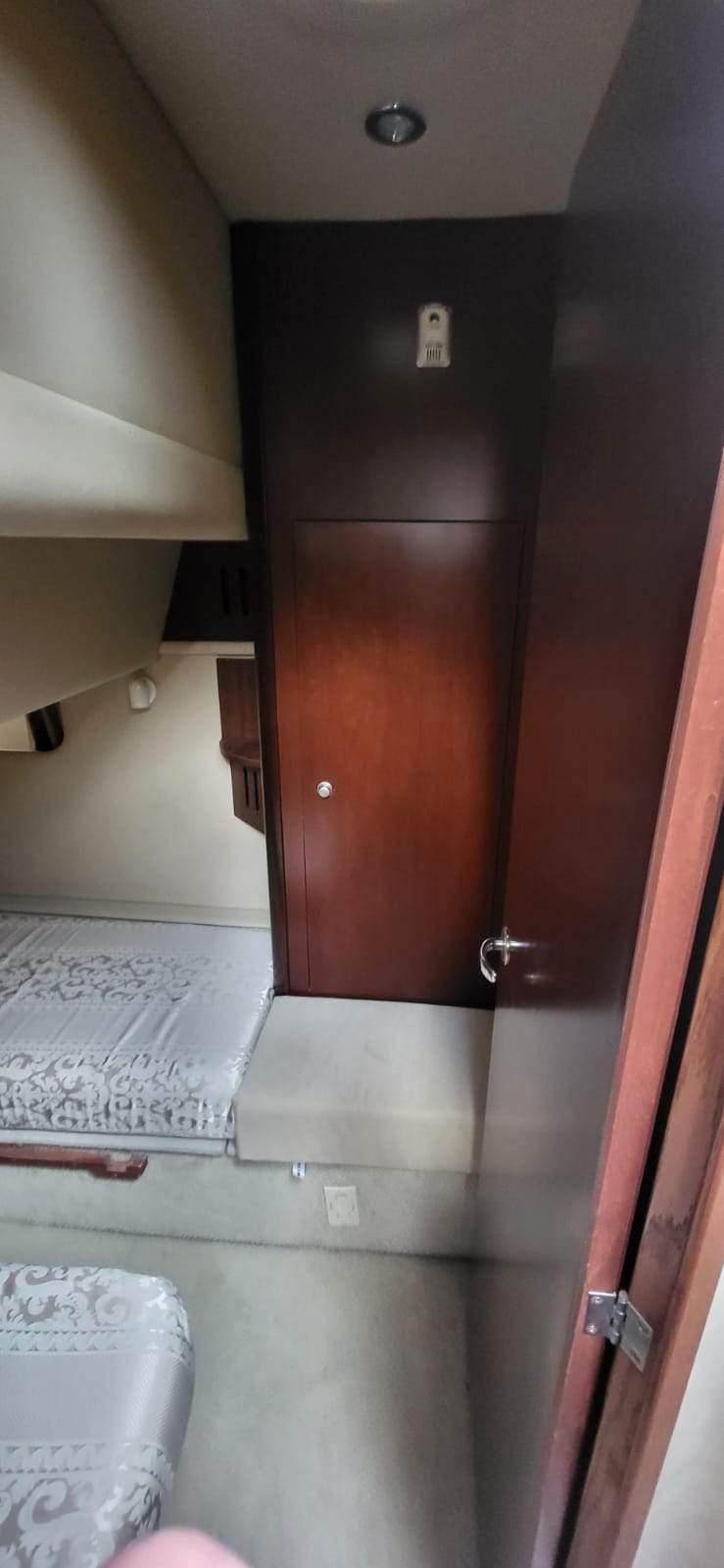

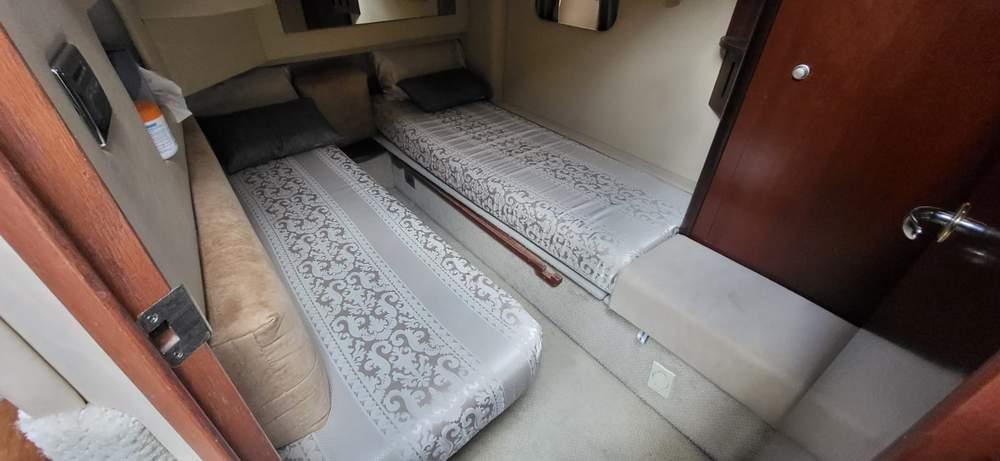

VIP Stateroom (Port)

    •    Twin berths convertible to king with filler cushions

    •    Hanging locker, storage, reading lights; adjacent/day head access.

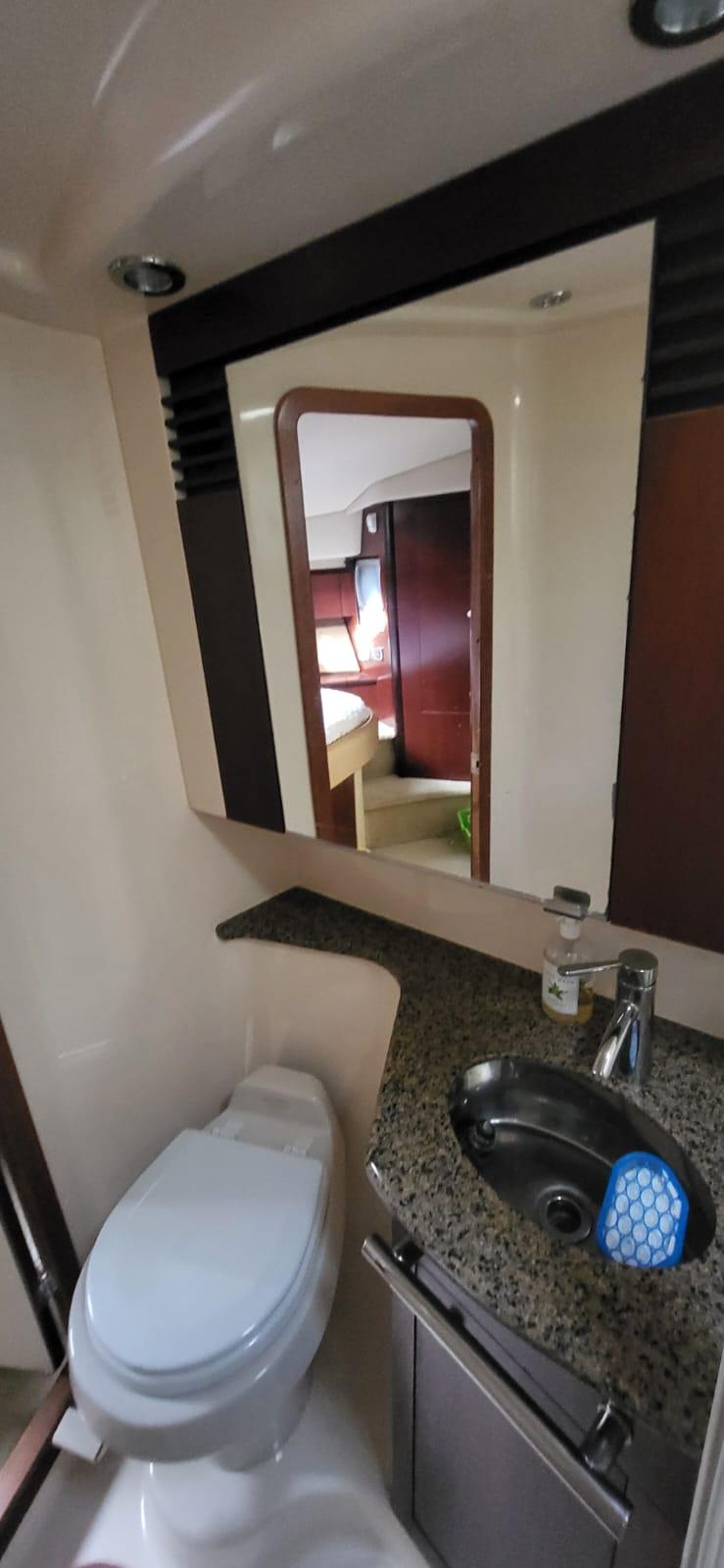

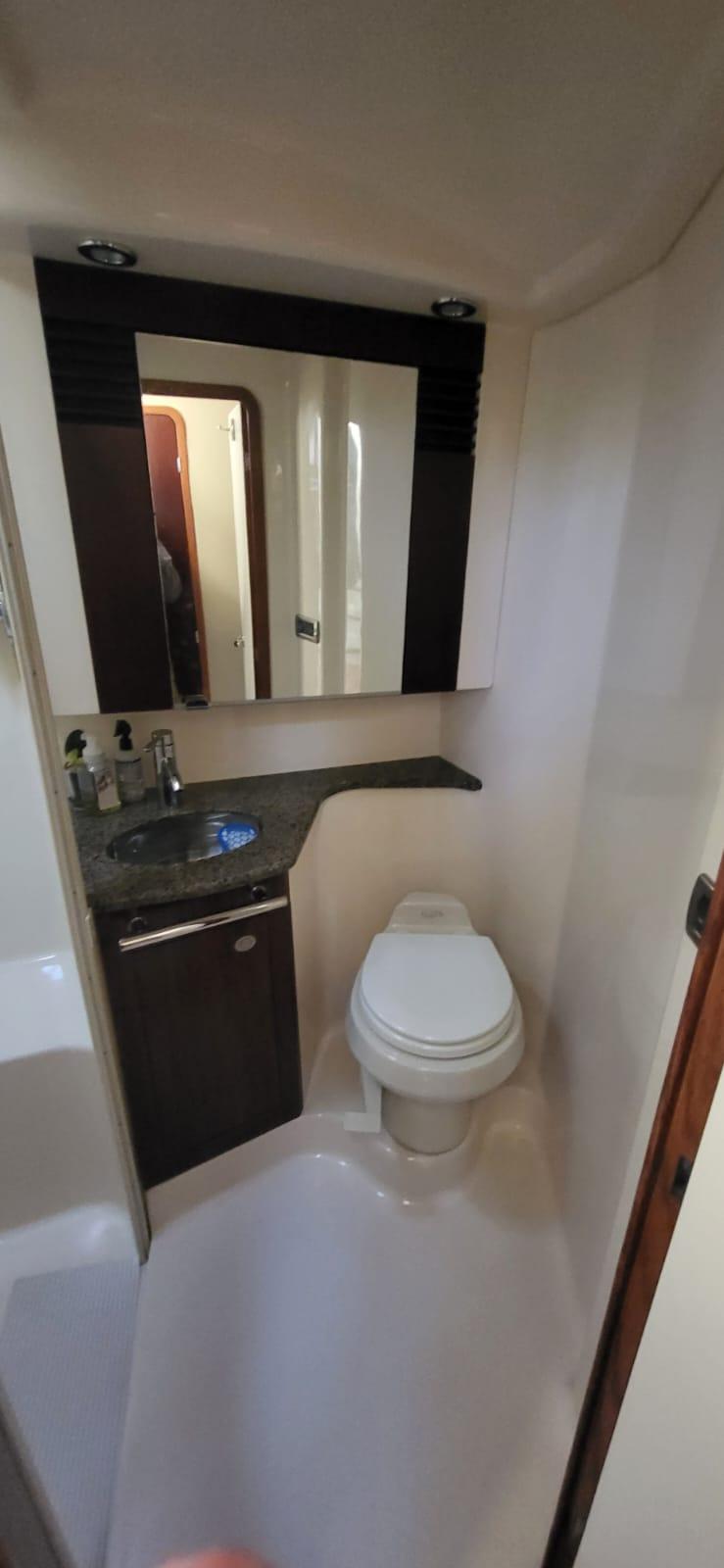

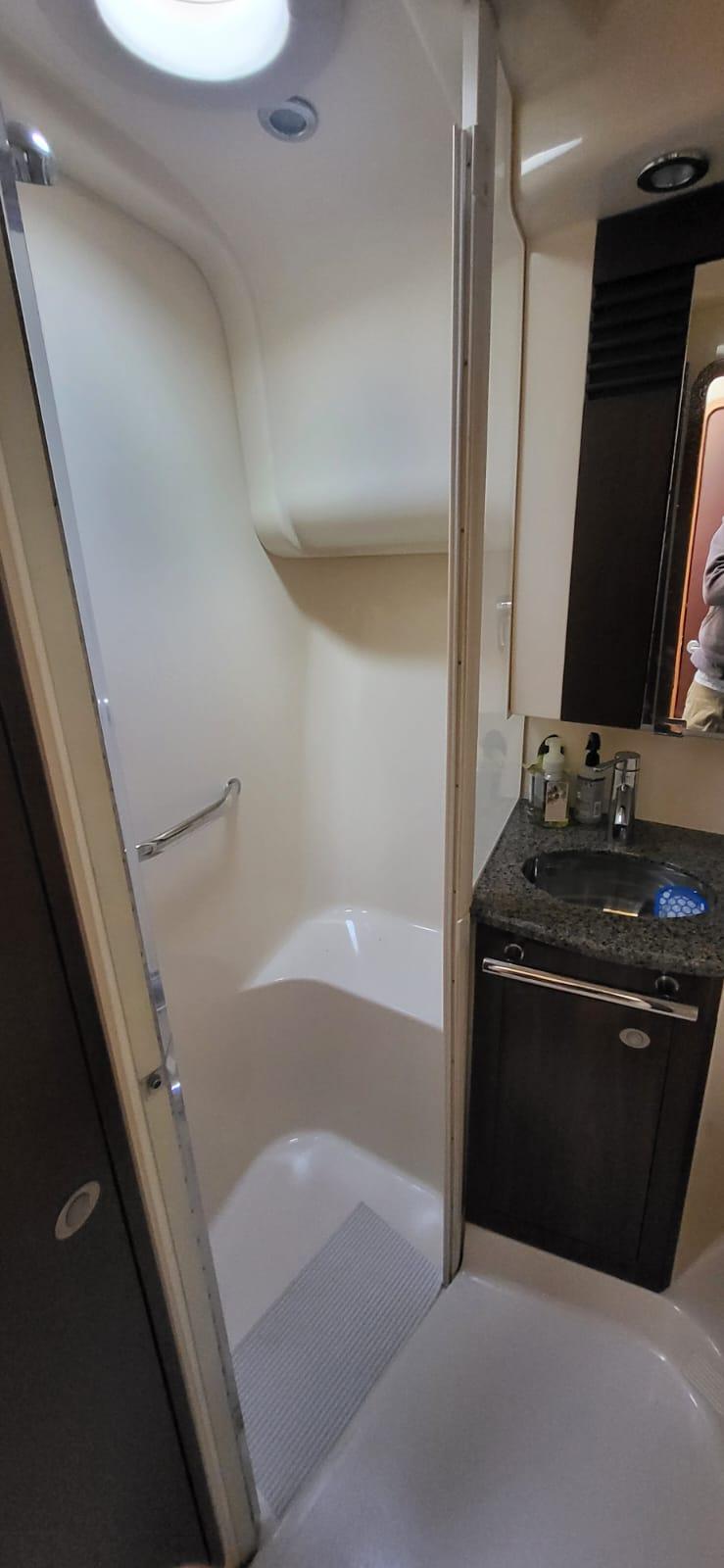

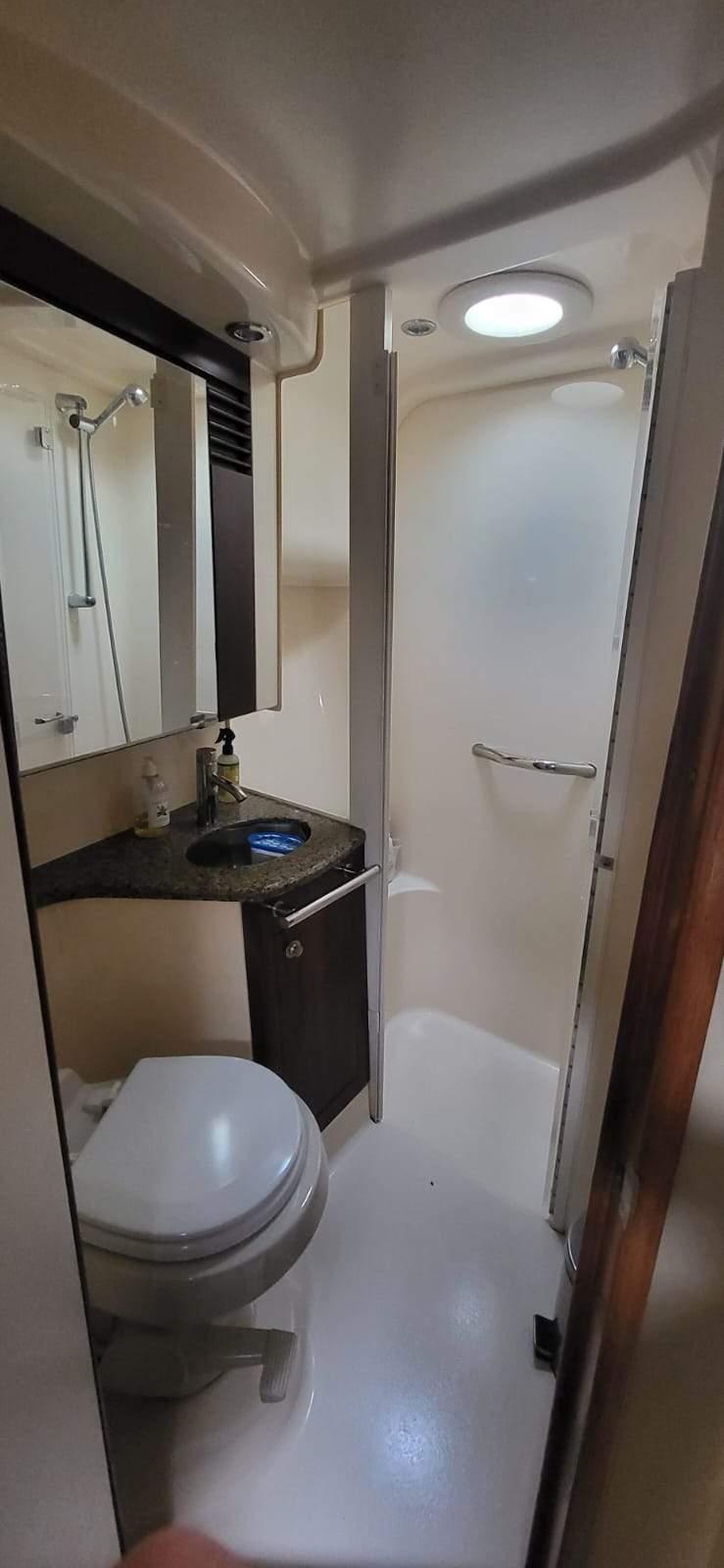

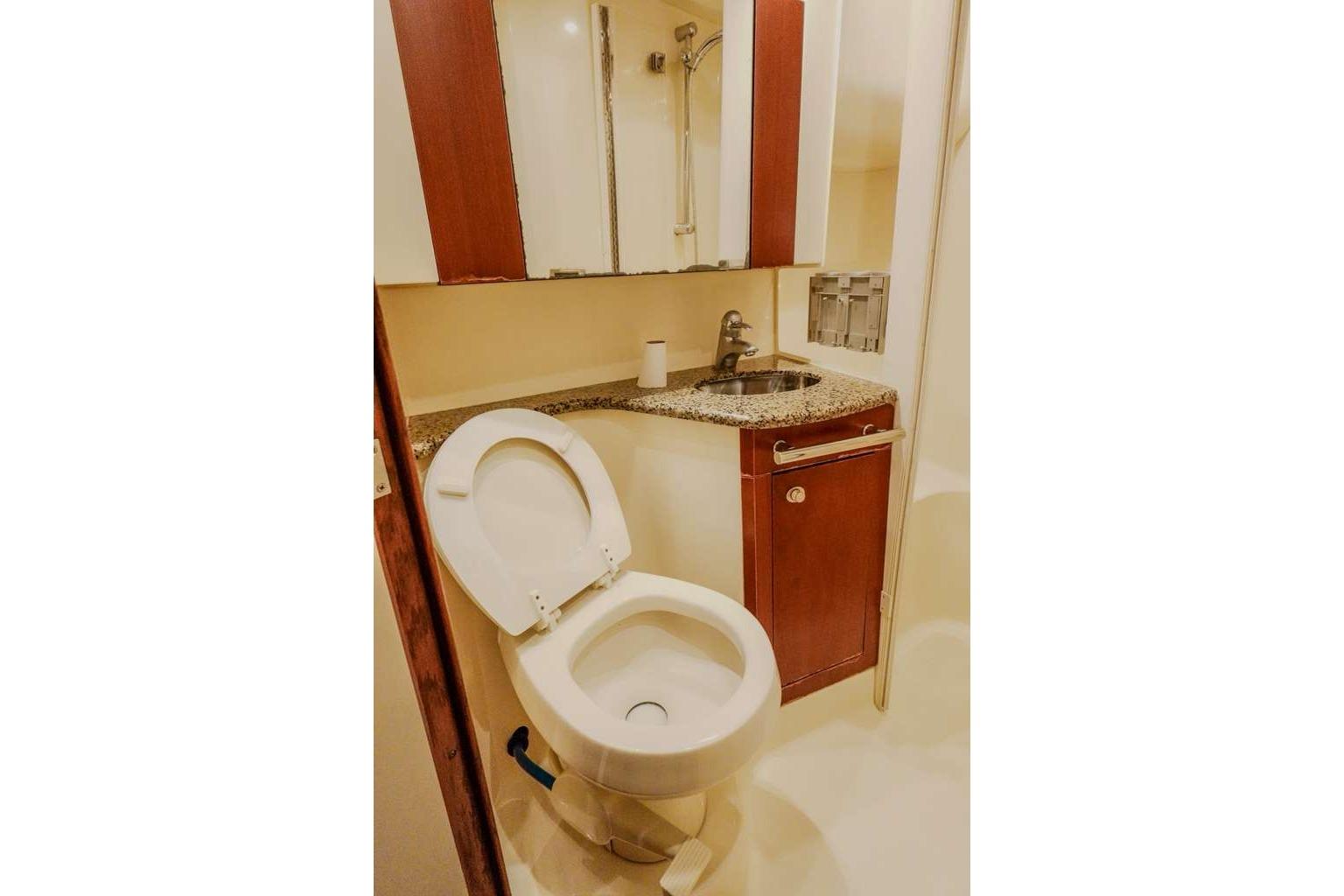

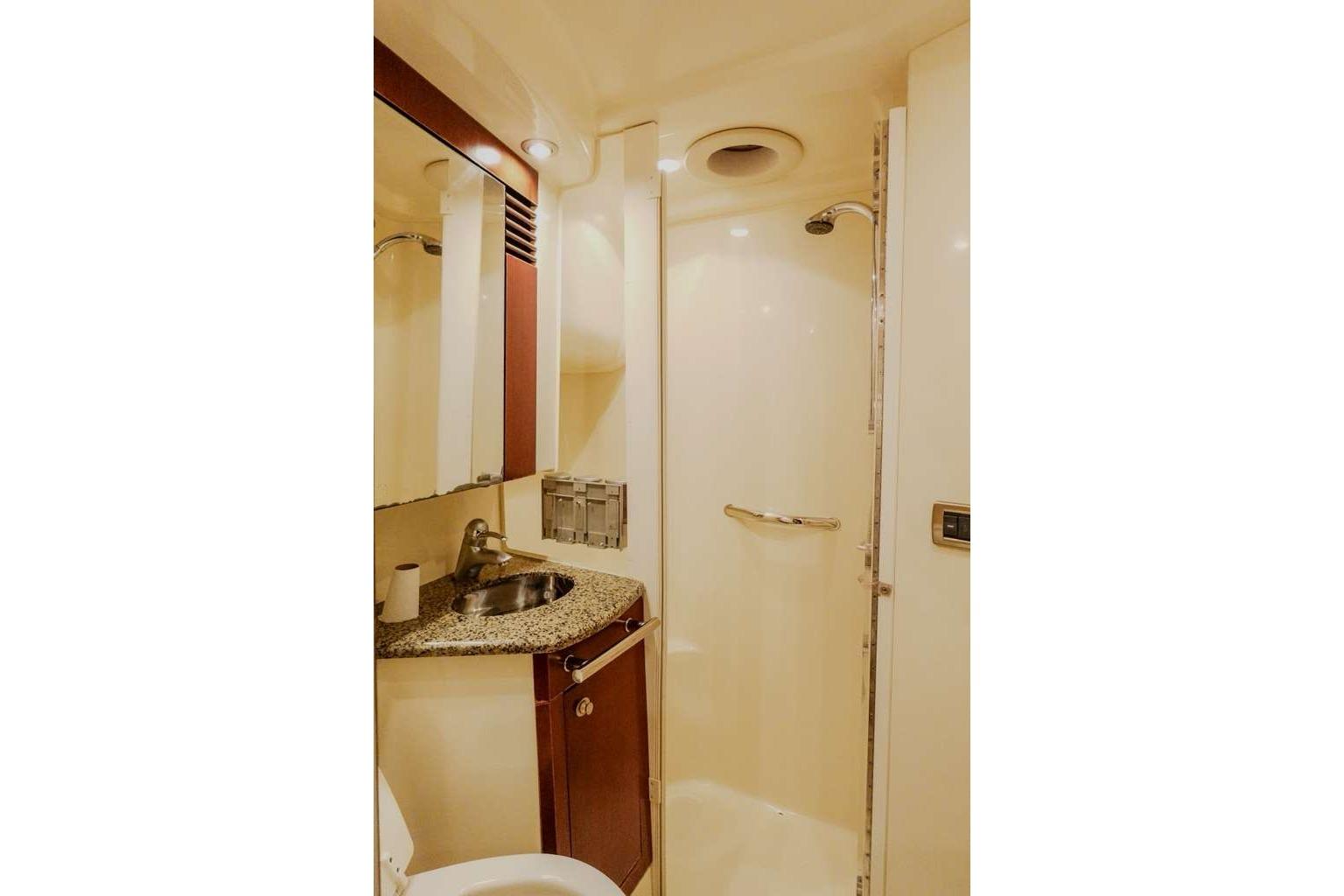

Heads (Master & Guest)

    •    VacuFlush® toilets, molded fiberglass shower areas, solid-surface counters, mirrored medicine cabinets, storage, opening portlights; sump box w/ automatic pump.

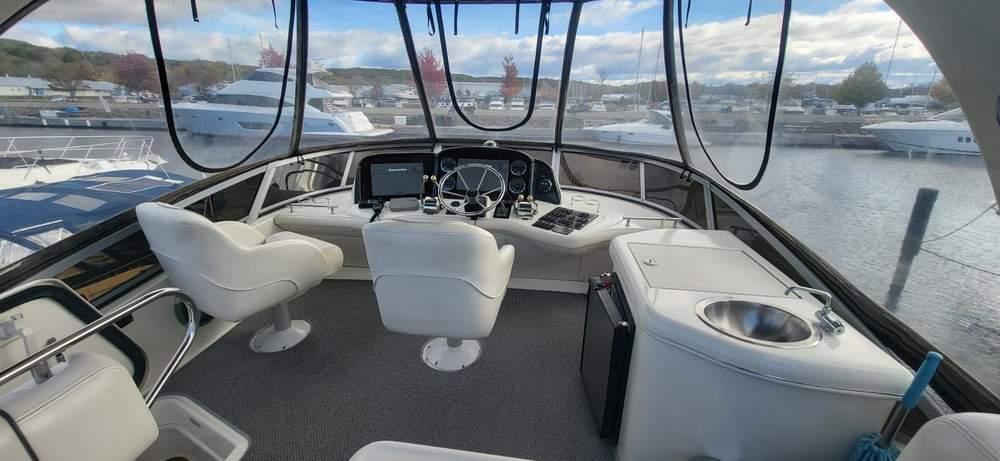

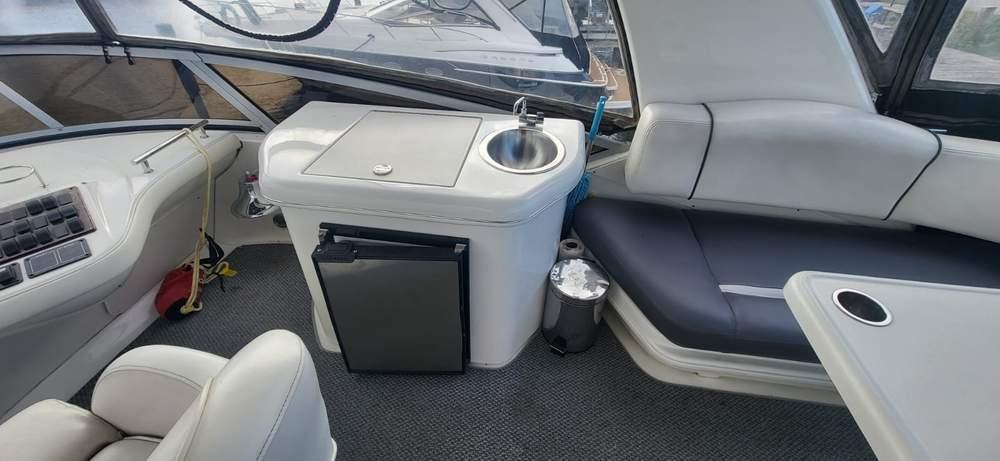

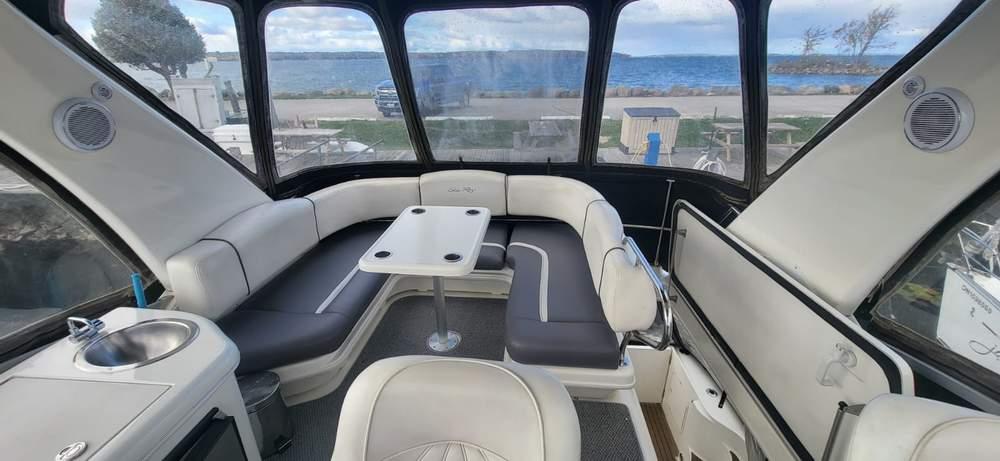

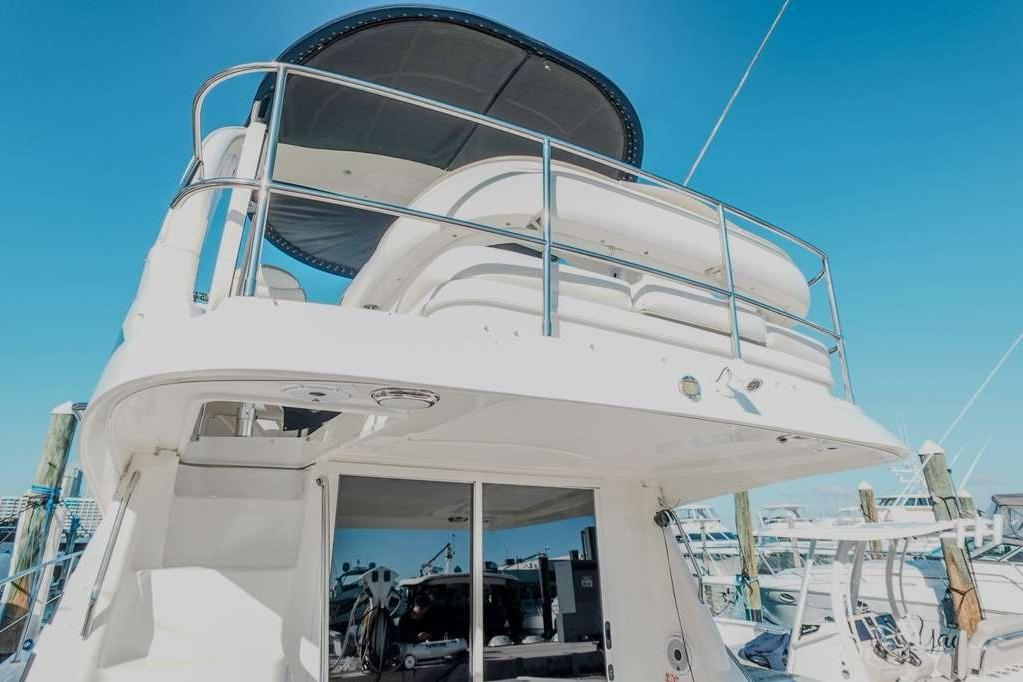

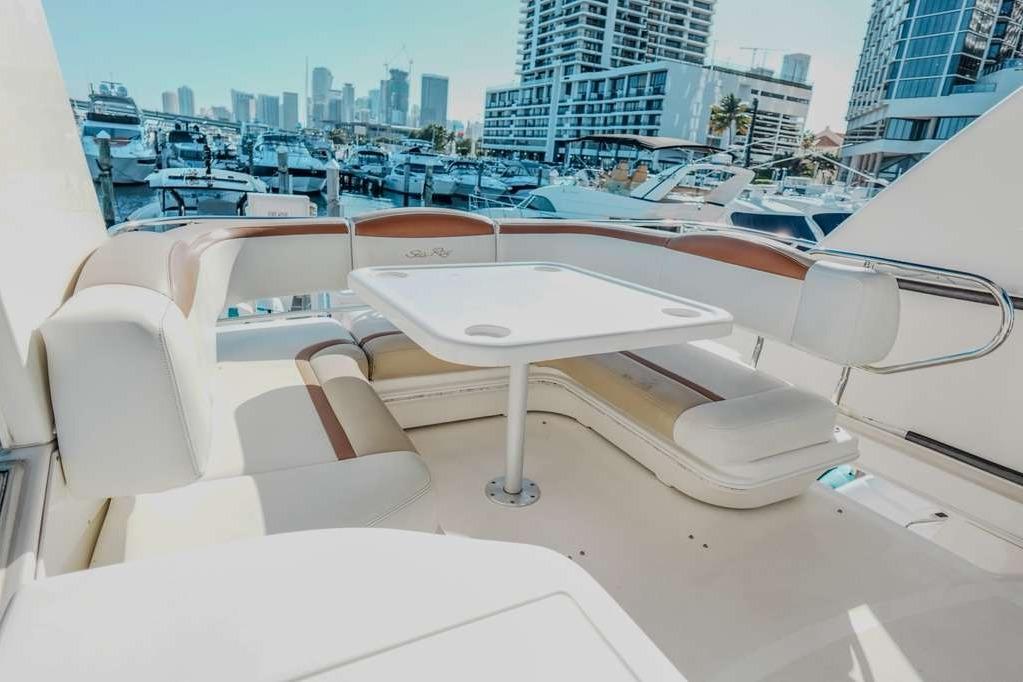

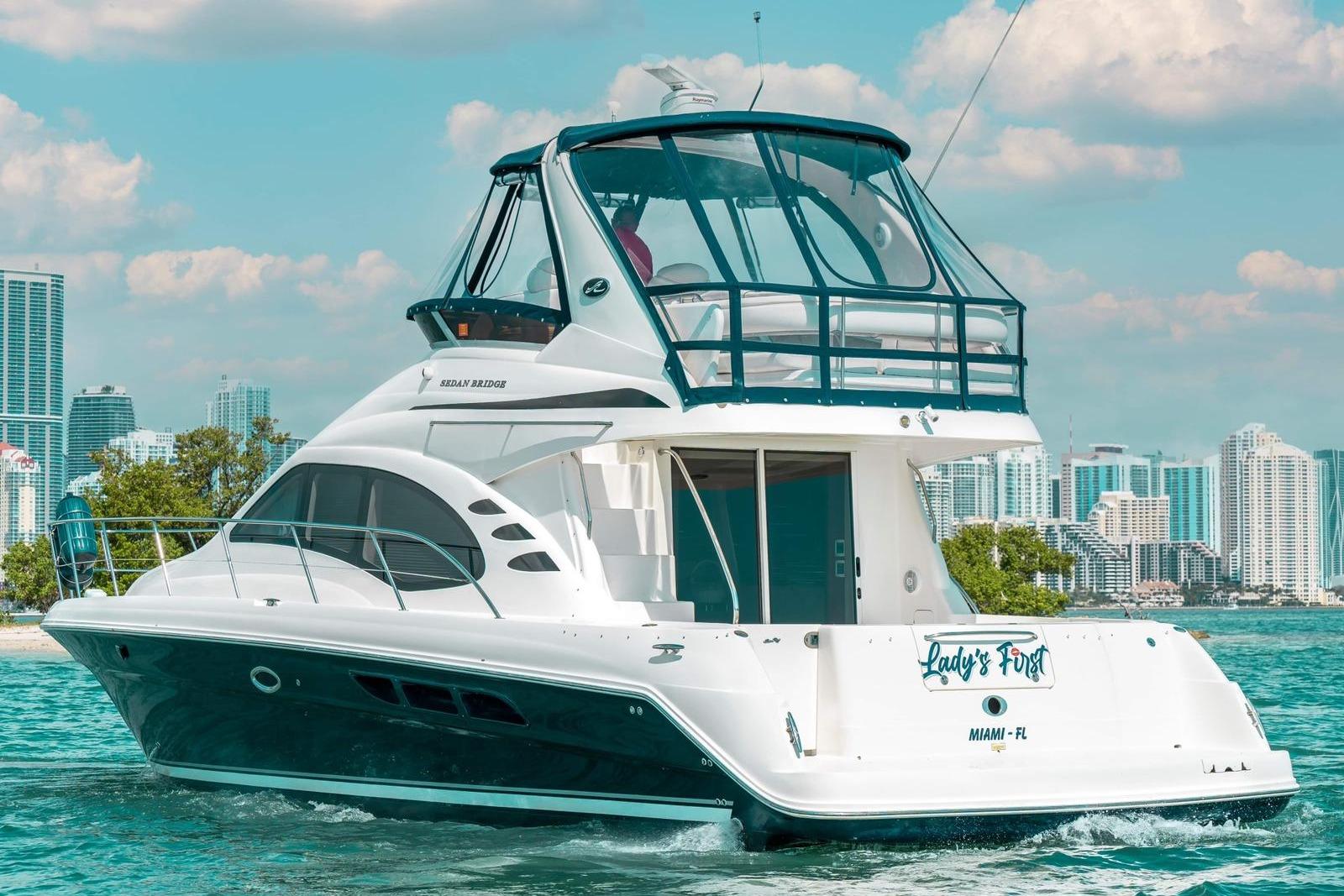

Flybridge

    •    Molded staircase from cockpit with stainless handrail

    •    U-shaped aft lounge with bridge table (sun-pad filler option)

    •    Sport spoiler with overhead lighting; full enclosure (Sunbrella®) options: soft top, bridge enclosure, covers

    •    Beverage holders, snap-in carpet, 12V accessory outlet, storage cabinet.

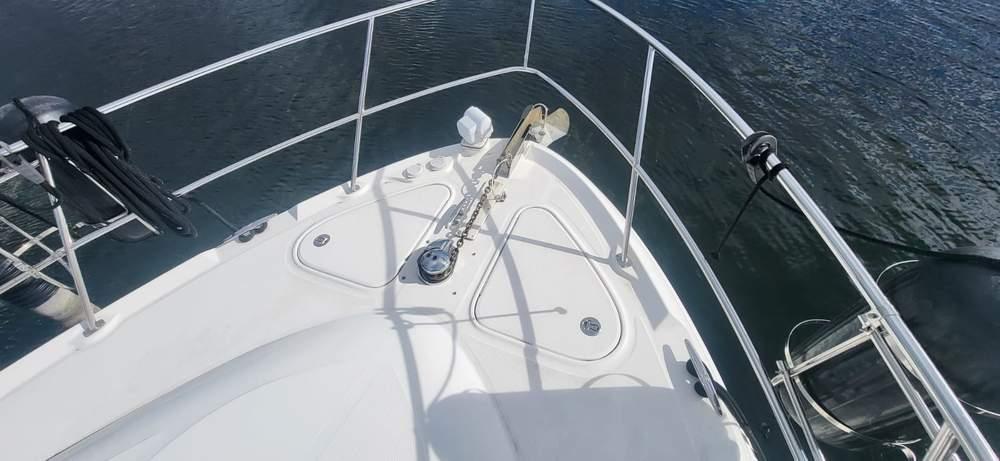

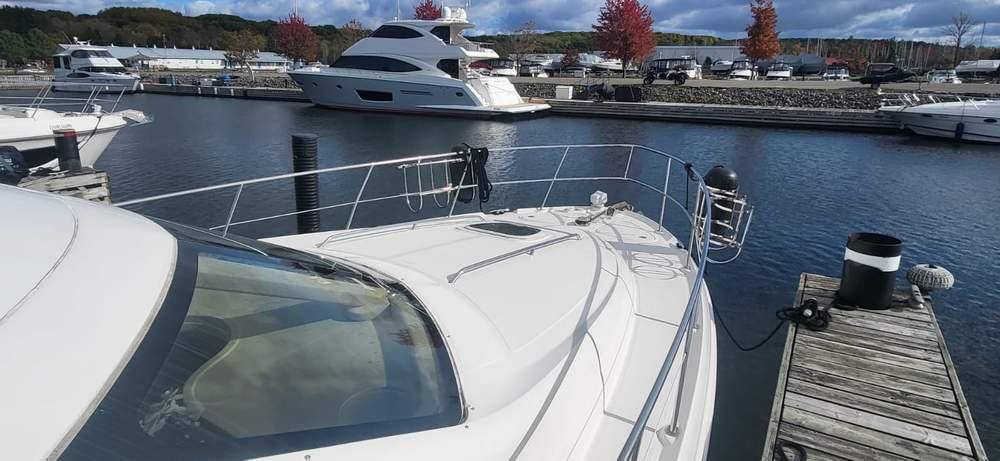

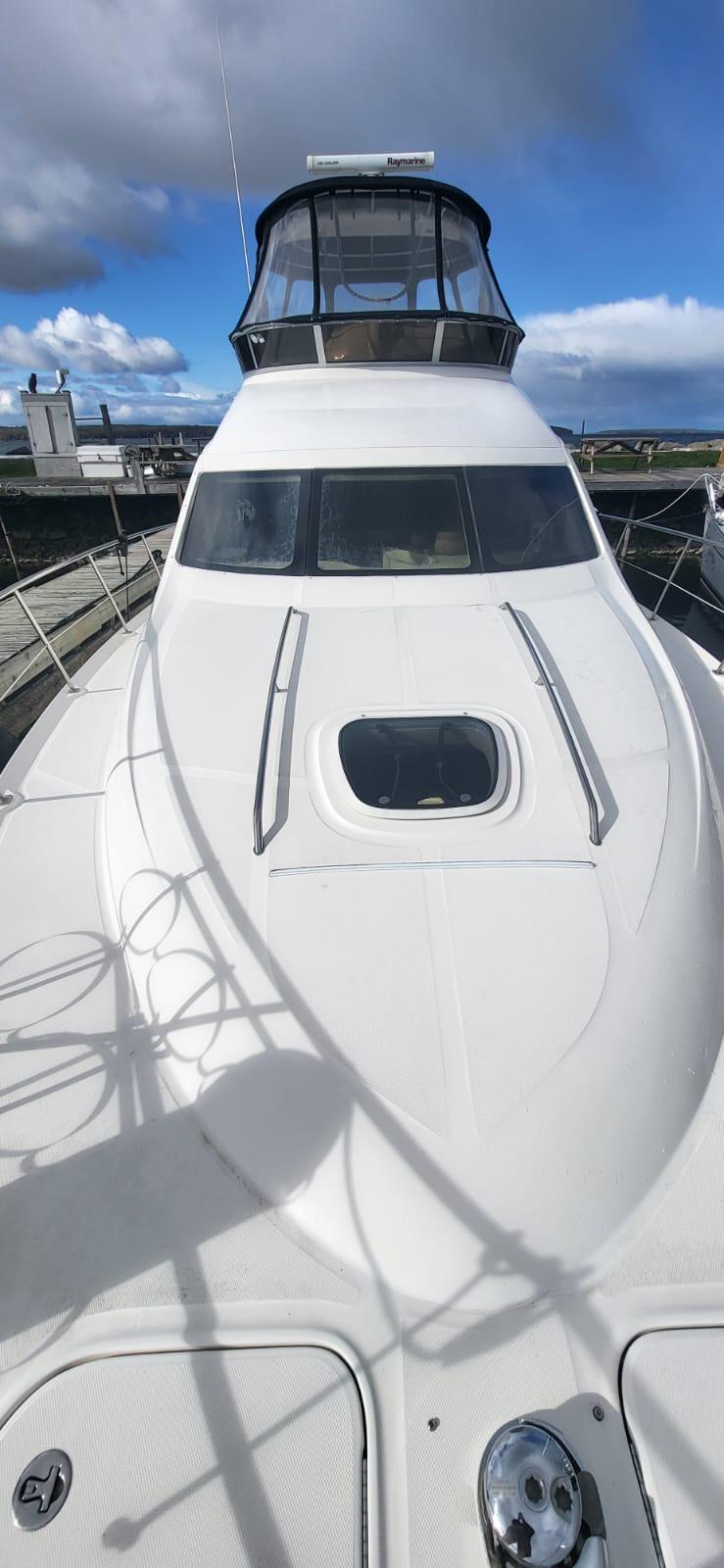

Bow

    •    316 stainless bow rail with life lines; molded toe rail

    •    Windlass (Lofrans® Project 1000 rope/chain; all-chain option) with foot switches, stainless anchor chute, anchor washdown spigot, rope/chain lockers under hatches.

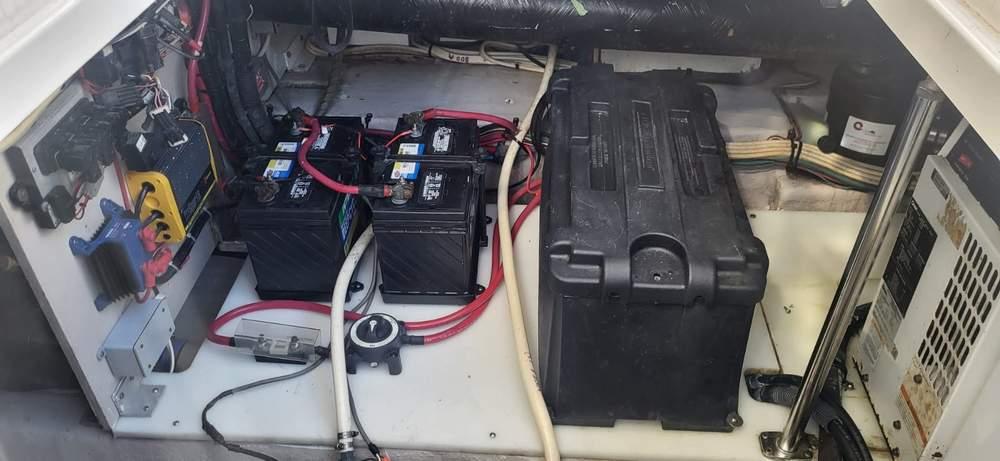

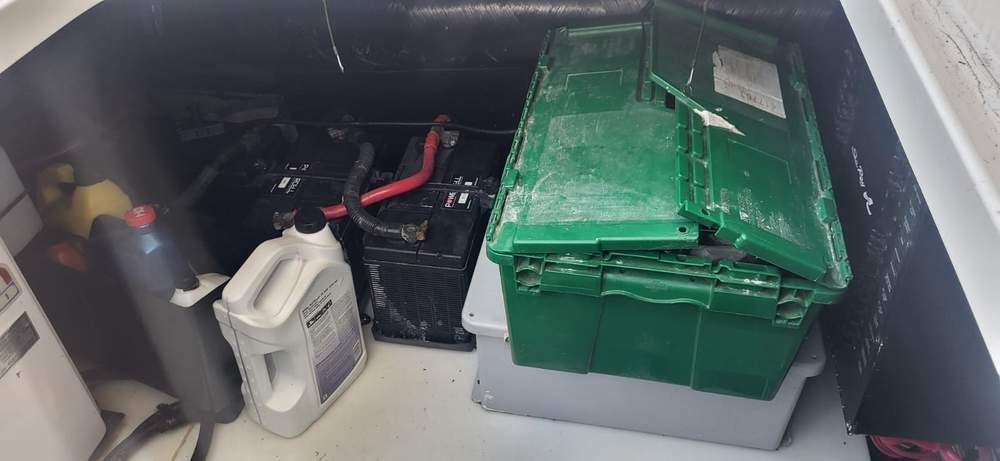

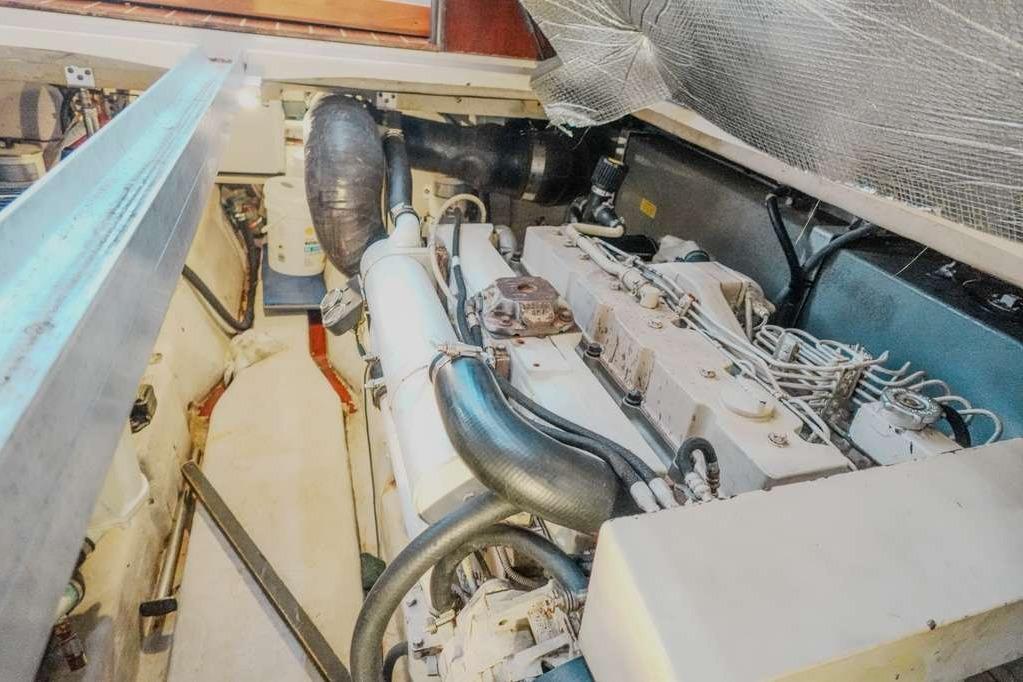

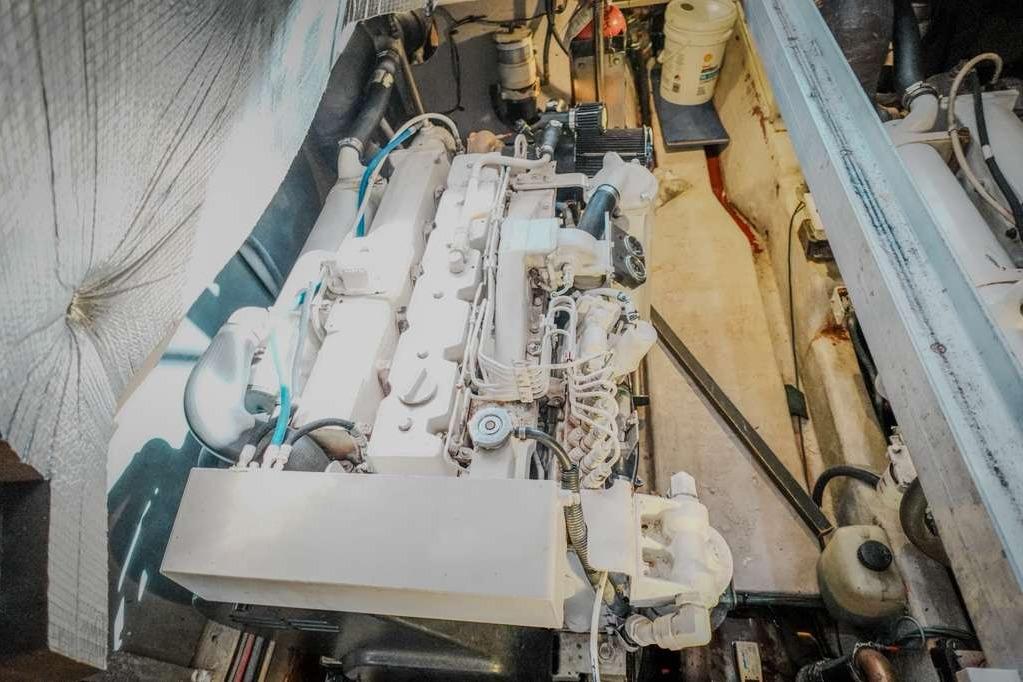

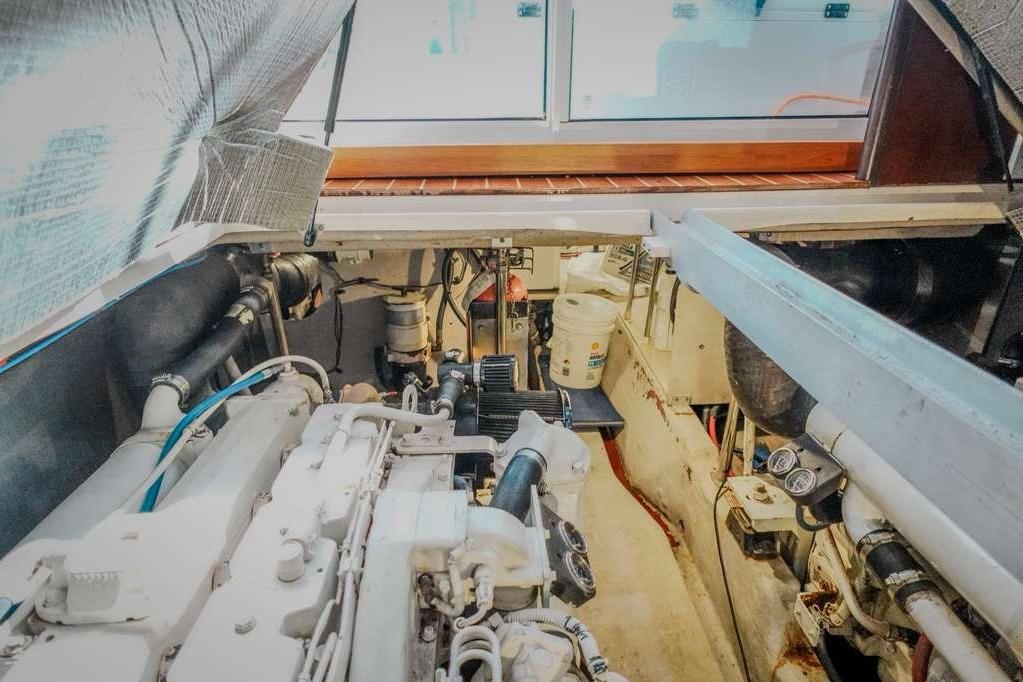

Engine Room

    •    Integral ventilation system; seawater strainers; stainless fuel fill & deck plates

    •    (Typical equipment lists include multiple auto bilge pumps, high-water alarms, and blowers; spec and parts references confirm 480CE integration with SmartCraft panels.)

Hull & Deck

    •    Arctic White gelcoat with Navy Blue hull color option, high-performance vinylester resin, fiberglass hat-section stringers

    •    Thru-bolted stainless cleats (8), handrails, navigation lights

    •    Integral swim platform with concealed stainless 3-step ladder & grab handle
